Transducer connection
160 I3031-14.0 HBM: public Quantum
X
Notice

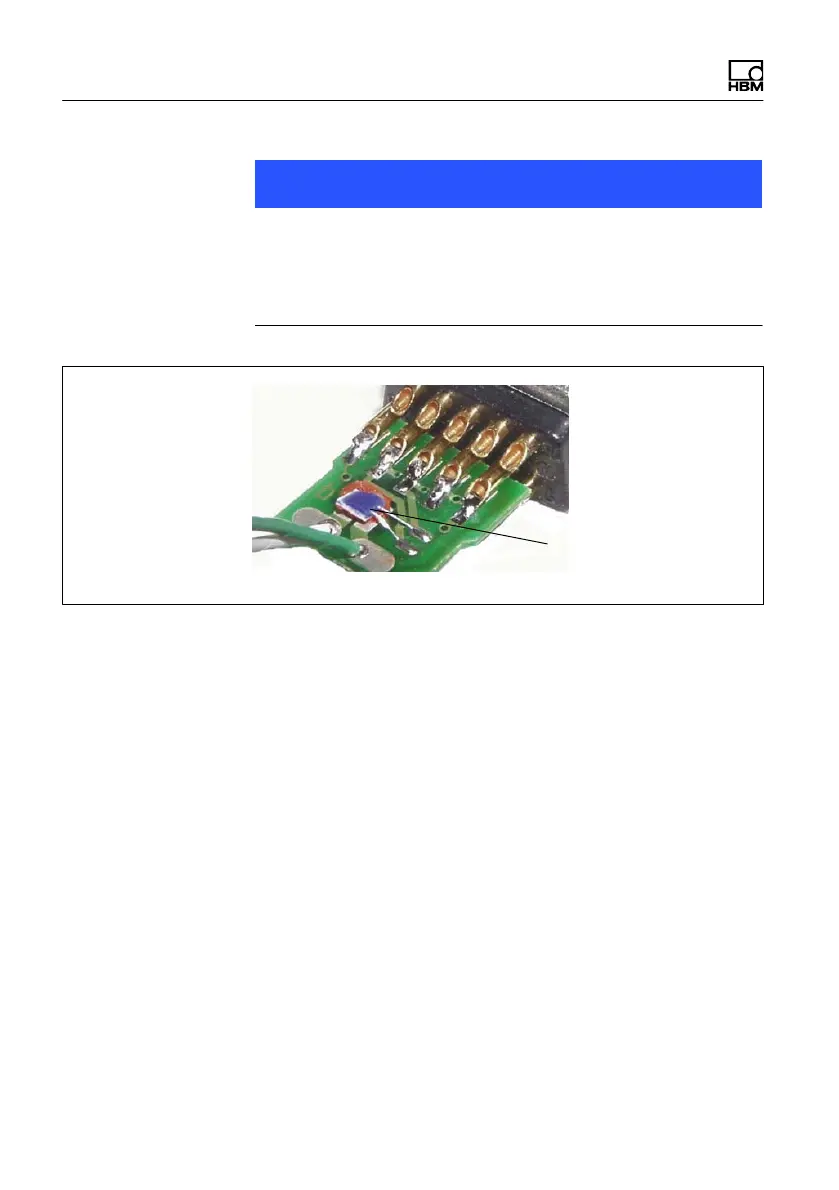

Check the position with the plug shape (see picture
above).
In this position, the PT1000 of the cold spot compensa
tion element is on top.
PT1000
S Solder the connector pins to the connections on the
board
S PIN 1 TEDS
PIN 6 TEDS
PIN 5 Thermocouple (+)
PIN 10 Thermocouple (-)
PIN 9 Signal ground
PIN 7 PT1000 cold junction
PIN 8 PT1000 cold junction
PIN 2 Excitation (-)
PIN 3 Excitation (+)
