Synchronzing via Ethernet PTPv2 (IEEE1588:2008)
Ethernet-
PTPv2Switch
PTP
PTP
PTP

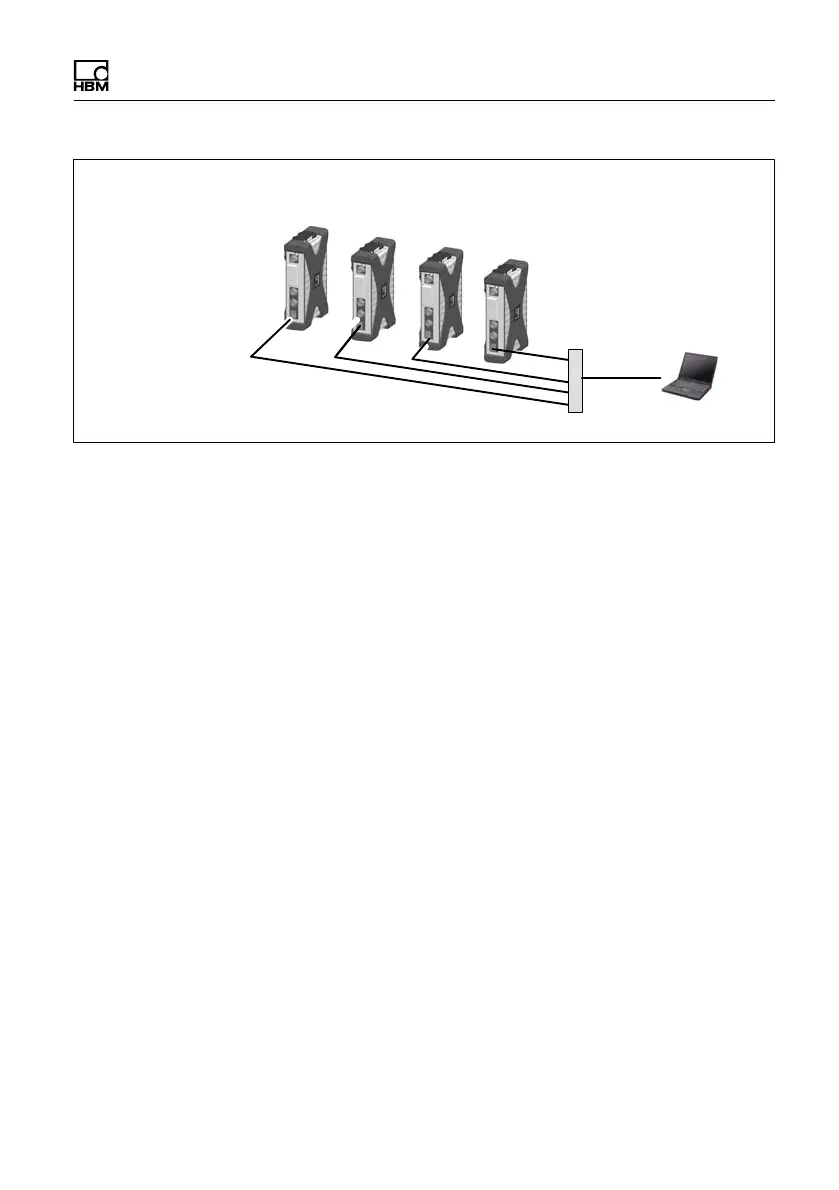

Fig. 4.1 Different methods of time synchronization
Additional information on the subject of
"synchronized"
To achieve a precise reference over time, the applicable
channels must be parameterized with the same filter set
tings. No automatic runtime correction is carried out. The
filter runtimes are shown in the data sheet. After booting
and successful synchronization, the system LED is lit
green. If synchronization is disturbed, or not yet estab
lished, the system LED is lit orange.
