Mechanical

54 I3031-14.0 HBM: public Quantum

4,0 a.f.

Opening for con

nection to Ethernet

Lower screwed clamping gland

Guide rails

Upper screwed clamping gland

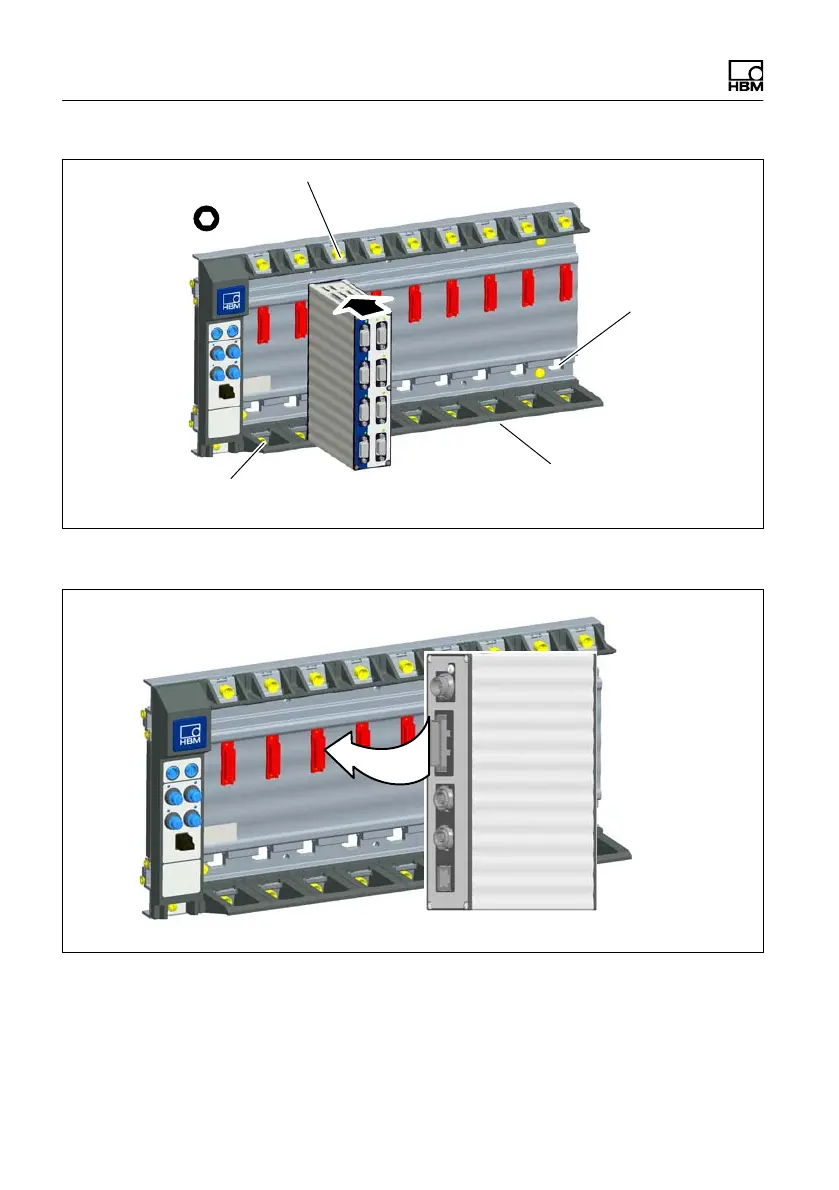

Fig. 6.16 Mounting the module

Fig. 6.17 Centering above the connection plug
