Menu 6. SETTINGS Command reference
EN 3925-0060 V207-00 MANUAL R03.doc
HeMaTech
Prüftechnik
Error in pressure detection
If there should be problems with the pressure detection, the following dialog window
will appear:

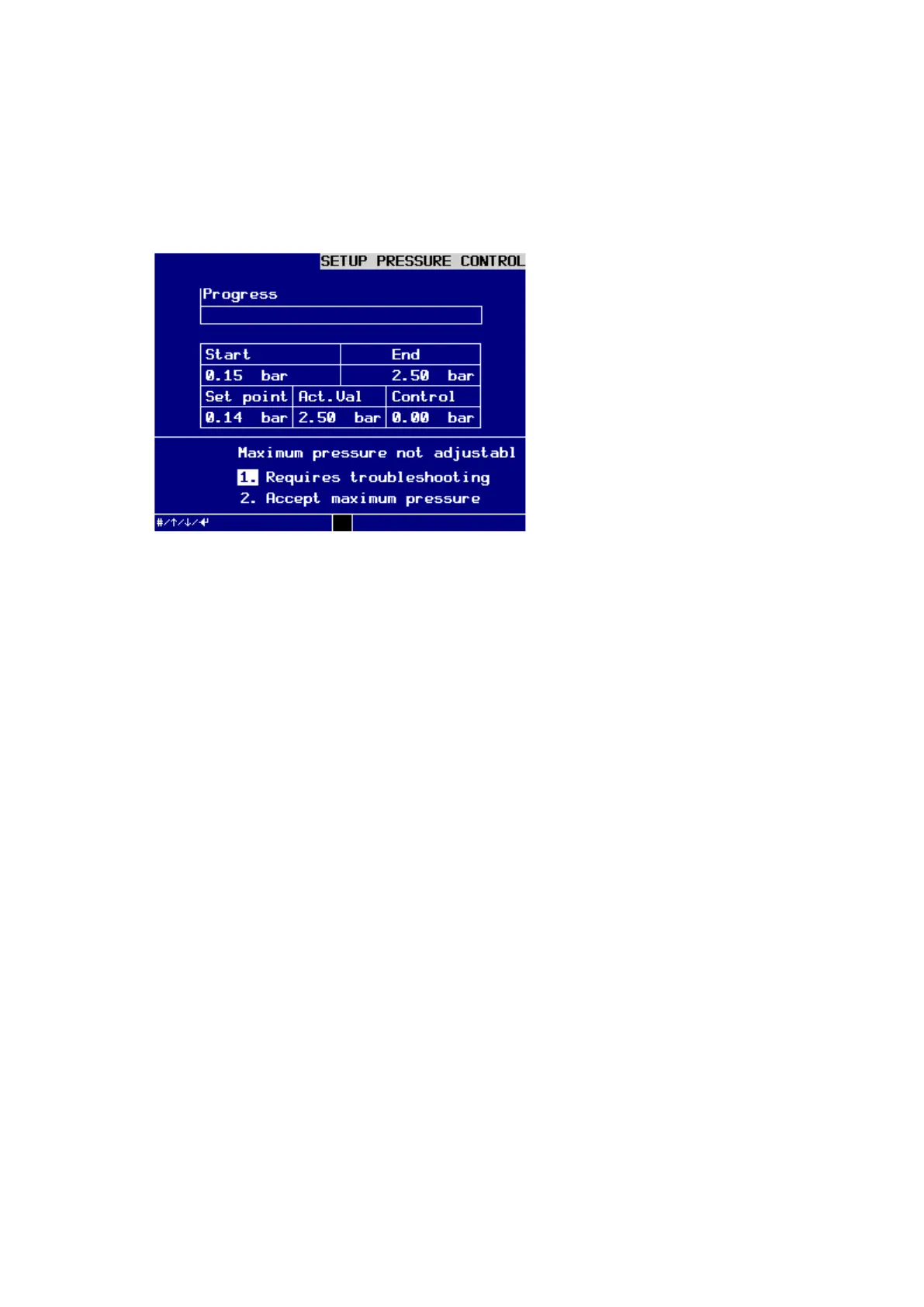

Dialog window SETUP PRESSURE CONTROL WINDOW with error message
This dialog window offers two possibilities to respond to this error message:
− Eliminate the cause of the fault.
Further information can be found under position 27 of the
Trouble shooting
chart
in chapter
Maintenance
.
− Accept maximum pressure.
The system determines the pressure table new up to the currently possible
maximum pressure. If higher pressure than the determined maximum pressure
is programmed during setup, the tester will submit the error 28
Nominal pres-
sure out of range
. In this case refer to the
Trouble shooting chart
in chapter
Maintenance
.
