Command reference Menu 5. PRINT MENU
EN 3925-0060 V207-00 MANUAL R03.doc
HeMaTech
Prüftechnik
8. Record Reverence

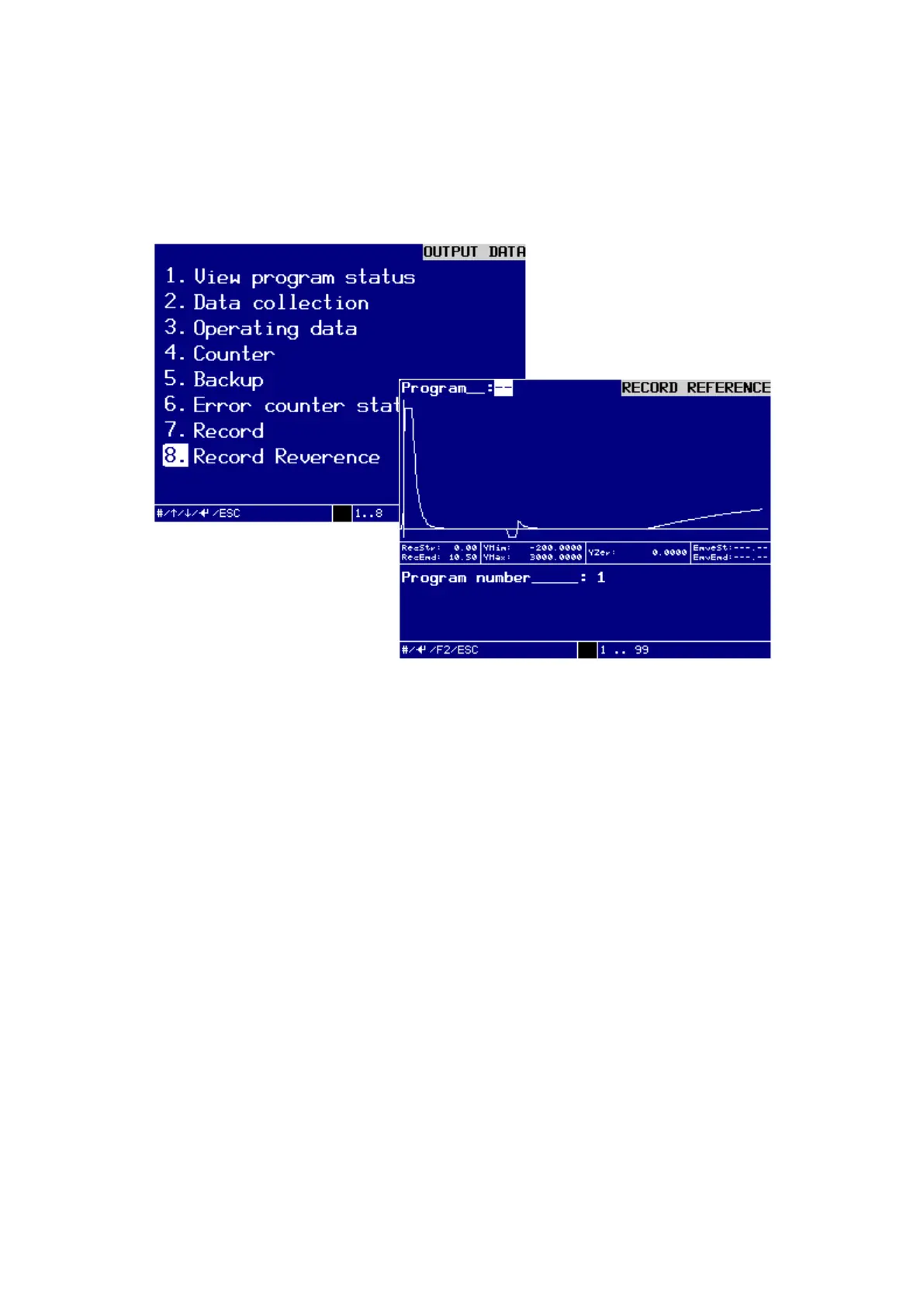

In this menu you can view the last 10 saved filling curves on the display.
Dialog windows FILLING CURVES
Here you can output of the saved record reference.
Enter the number of the program into the field Program: and confirm the entered
program number with the ENTER-key.
The selected recording appears on the display.
Possible entries range is from 1 … 99.
Press the ESC-key to exit the menu.
Press the key F2, to activate the dialog window PRINT DATA for data transfer via
interface.
On the display appears the window Print Data.
