5. Adjusting the filling/testing pressure manually (option 0050-04)
This optional menu can be opened from the dialog window SETUP FILLING
PRESSURE. It is used to set or change the filling and testing pressures for an already
existing program manually.

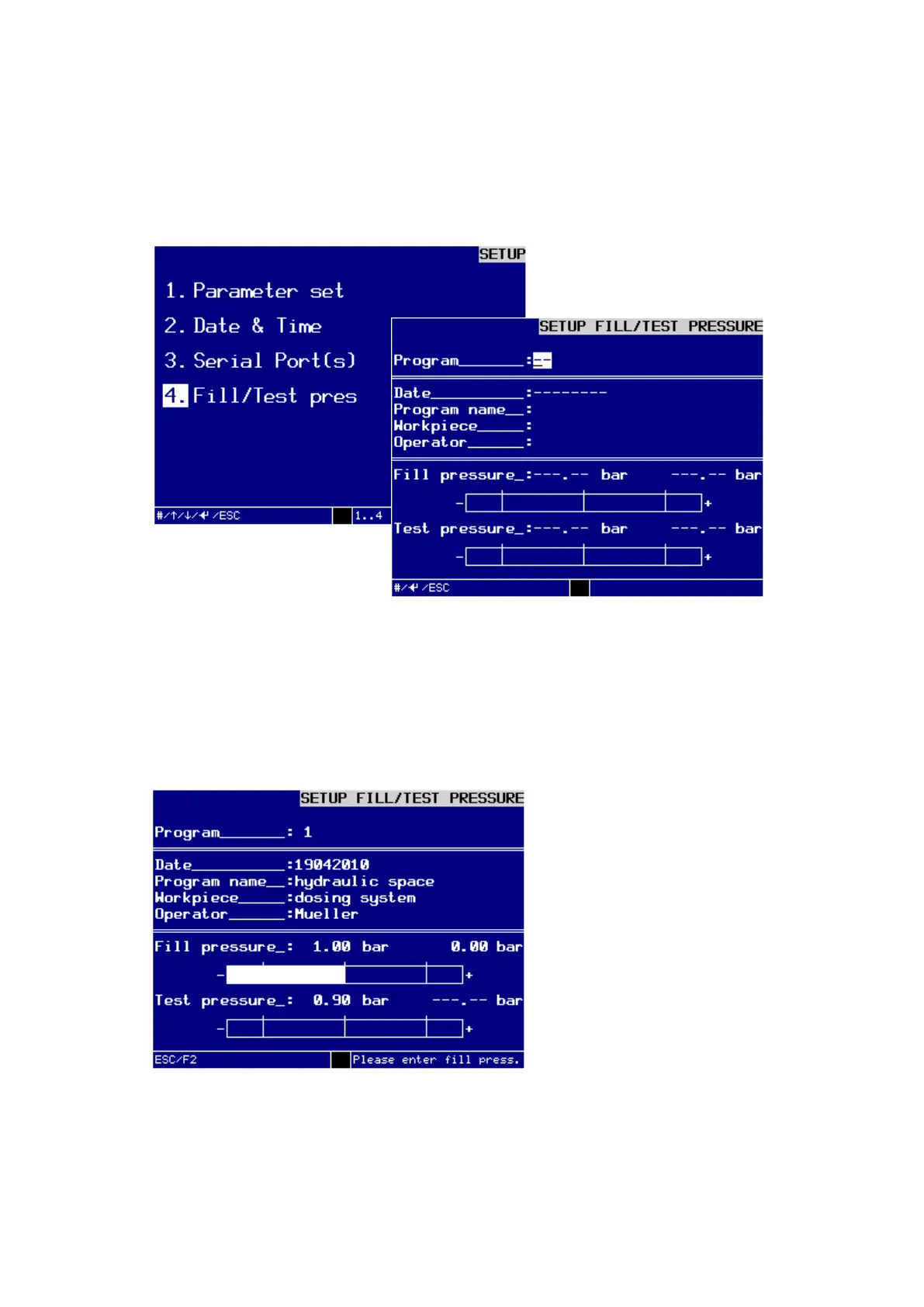

Dialog window SETUP FILLING/TESTING PRESSURE
To open the program in which you want to adjust the filling and testing pressures
manually:
enter the number of the desired program (in this example: 1) into the top line and
confirm the entry with the ENTER-key.
The program appears in the display and you can directly adjust the filling pressure.
Press F2 to toggle between the lines Filling pressure and Testing pressure.
Dialog window for manual adjustment of filling and testing pressure
