HeMaTech 3925-0050 - In Semi-Automatic Operation

In semi-automatic operation Signal Exchange with Machine Control
EN 3925-0060 V207-00 MANUAL R03.doc
HeMaTech Prüftechnik
118
In semi-automatic operation
The signals Automatic, Machine ready and Ready for test are not used in this opera-
tion mode.
The program number are entered or changed via the keypad.
When the tester is switched on, the output Ready for operation is set.
Now the measurement can be triggered with the signal Start (pulse of approx. 1 se-
cond), the test result is deleted.
Once the measurement is finished, the test result (leak tight, Leak or rework) is submit-
ted and the output Ready for operation is set.

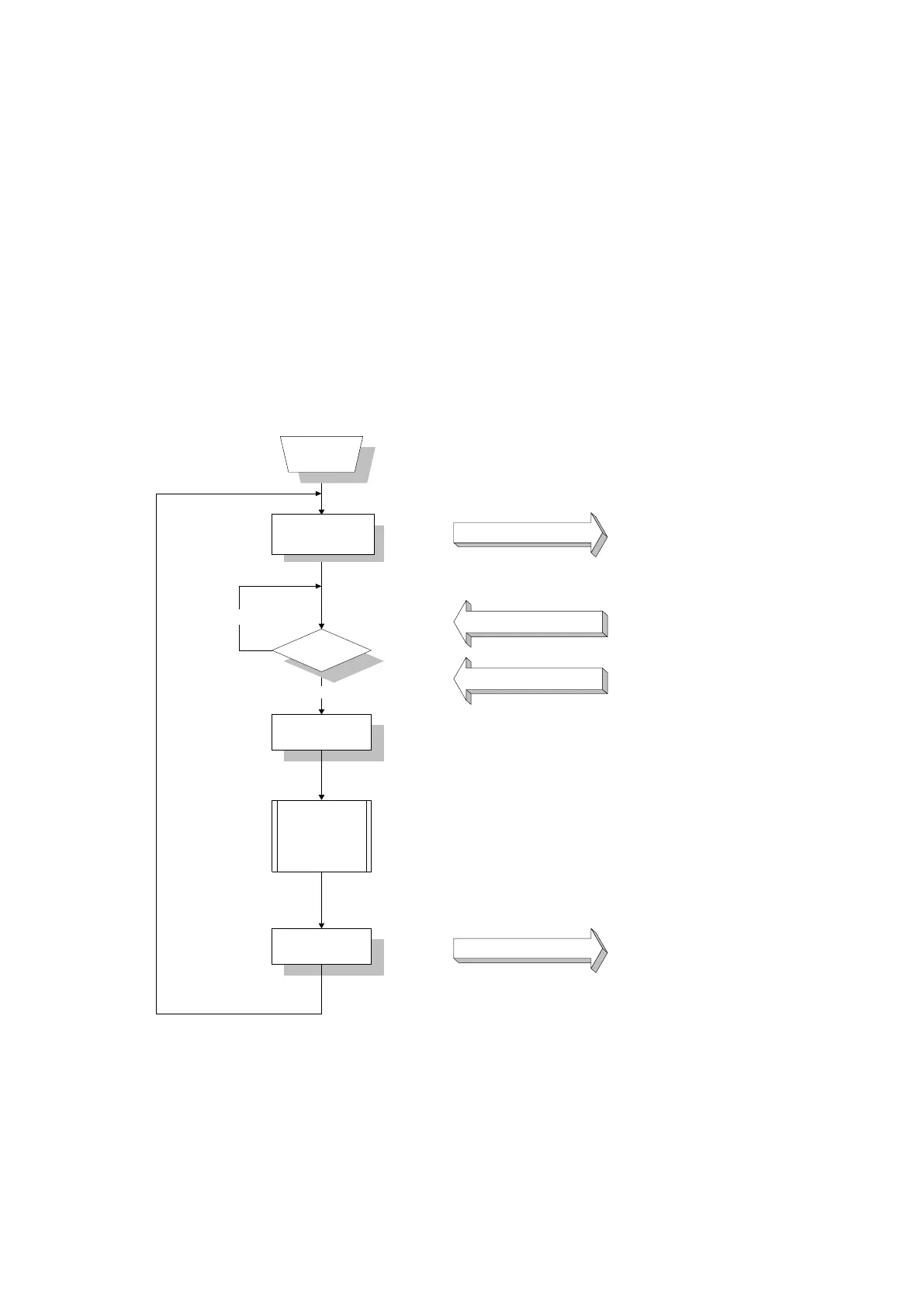

Flow chart of semi-automatic operation
ja
Prüfgerät
Ein
Setzen Ausgang
Betriebsbereit
Ausgang BETRIEBSBEREIT
X20/1
PROGRAMMNUMMER
Eingabe über Tastatur
Eingang START
X21/2
Start ?
nein
Reset Ausgang
Prüfergegnis
Ablauf der
Prüfung
Füllen
Ausgleichen ...
Setzen Ausgang
Prüfergebnis
Ausgang PRÜFERGEBNIS
X20/4 .. 6
Tester
ON
Input START
X21/2
Output TEST RESULT
X20/4 .. 6
Set output
Ready for
operation
no
yes
Reset output
Test result
Set output
Test result
Test sequence
Filling
Equalizing …
Output READY FOR OPERATION
X20/1
PROGRAMNUMBER
Input via keypad
