Signal Exchange with Machine Control Automatic operation
EN 3925-0060 V207-00 MANUAL R03.doc
HeMaTech Prüftechnik
117

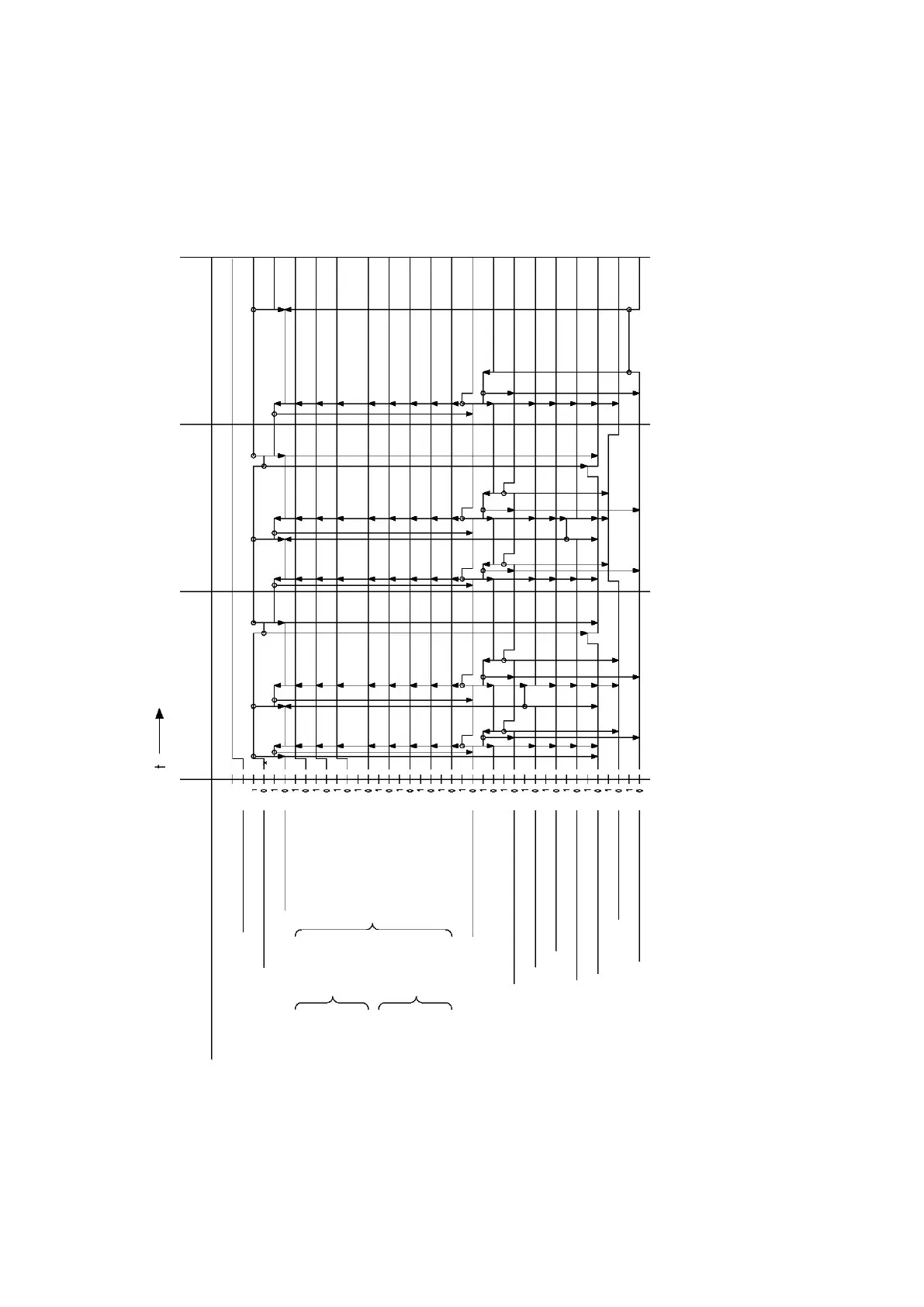

Automatic operation in a time-way diagram
Measurement with Leak simulation
Measurement without Leak simulation
Designation
Decimal position
Units position
Program - number BCD
Main switch OFF/ON Input: Automatic Output: Ready for operation Input: 1 Input: 2 Input: 4 Input: 8 Input: 10 Input: 20 Input: 40 Input: 80 Input: Machine ready Output: Ready for test (Program detected and pressure set) Input: Start Output: No Leak Output: Rework 1 Output: Leak Output: Fault Input: Leak simulation Input: Static Test (Flooding) On (Program number 7 is displayed) The inputs “Machine ready” and “Start” should be pulses with a length of approx. 1 second. * Entry point after removing the dignal “Abort”. This signal deletes all outputs and interrupts
the measuring process at any point (only in automatic mode). The specimen is vented (e.g. for emergency stop).
ON
OFF
Flooding
