Product description View of device

EN 3925-0060 V207-00 MANUAL R03.doc 21

HeMaTech

Prüftechnik

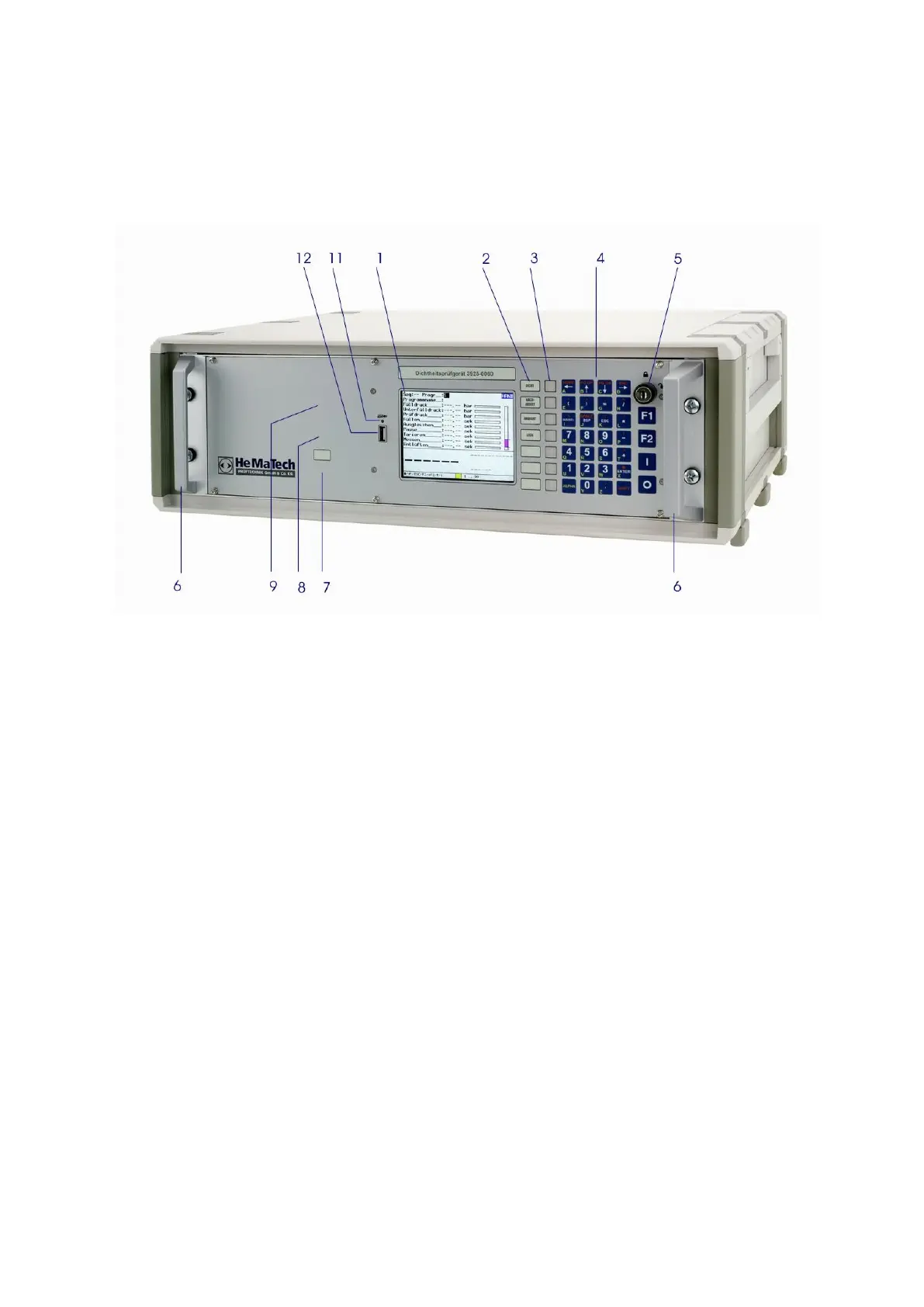

View of device

Front view

1 LC-Display

to display the program menus

2 Status fields

4 assigned by default, 3 for individual assignment

3 LED

to show the current test result

4 Alpha-numerical control field

to enter the desired test parameters

5 Write protection switch

to protect against undesired changing of test parameters

6 Handle

for installation and removal of the 19“ plug-in unit

7 Precision needle valve

for leak simulation (option)

8 Connection socket

for leak display (option) in pressure increase measurement to the outlet of a flow

meter

9 Connection socket

for leak display (option) in pressure increase measurement to the inlet of a flow meter

11 LED

to show the working status of the USB interface

12 USB interface
