View of device Product description
EN 3925-0060 V207-00 MANUAL R03.doc
HeMaTech
Prüftechnik

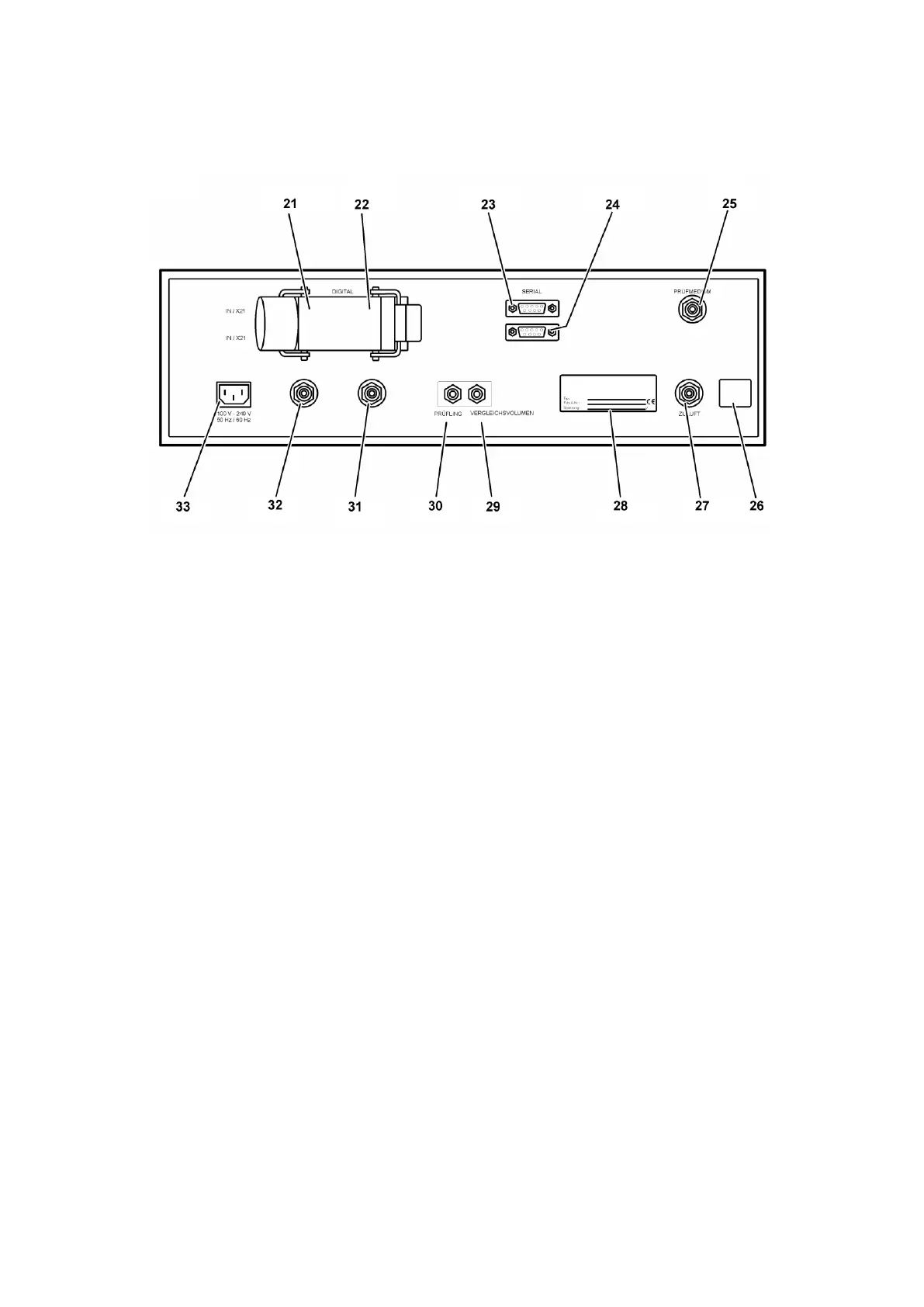

Back view
21 7-pin Sub-D socket, digital OUT, X20
22 37-pin Sub-D plug, digital IN, X21
23 9-pin Sub-D socket, serial, V24 RS232C Ser#1, X22
24 9-pin Sub-D socket, serial, V24 RS232C or Profibus Ser#2, X23 (option)
25 Connection for test medium (option)
26 Table with pressure values for supply air and test media
27 Supply air connection, maximum 10 bar/ü, oil free and filtered
28 Type plate
29 Connection for reference volume (pressure proof original specimen)
30 Connection for specimen
31 Air relief outlet for silencer
32 Special connection see pneumatic diagram (option)
33 Power supply socket 100 … 240 V, 50 … 60 Hz,
with fuse T 2.0 A
