2.1 Print Data Collection

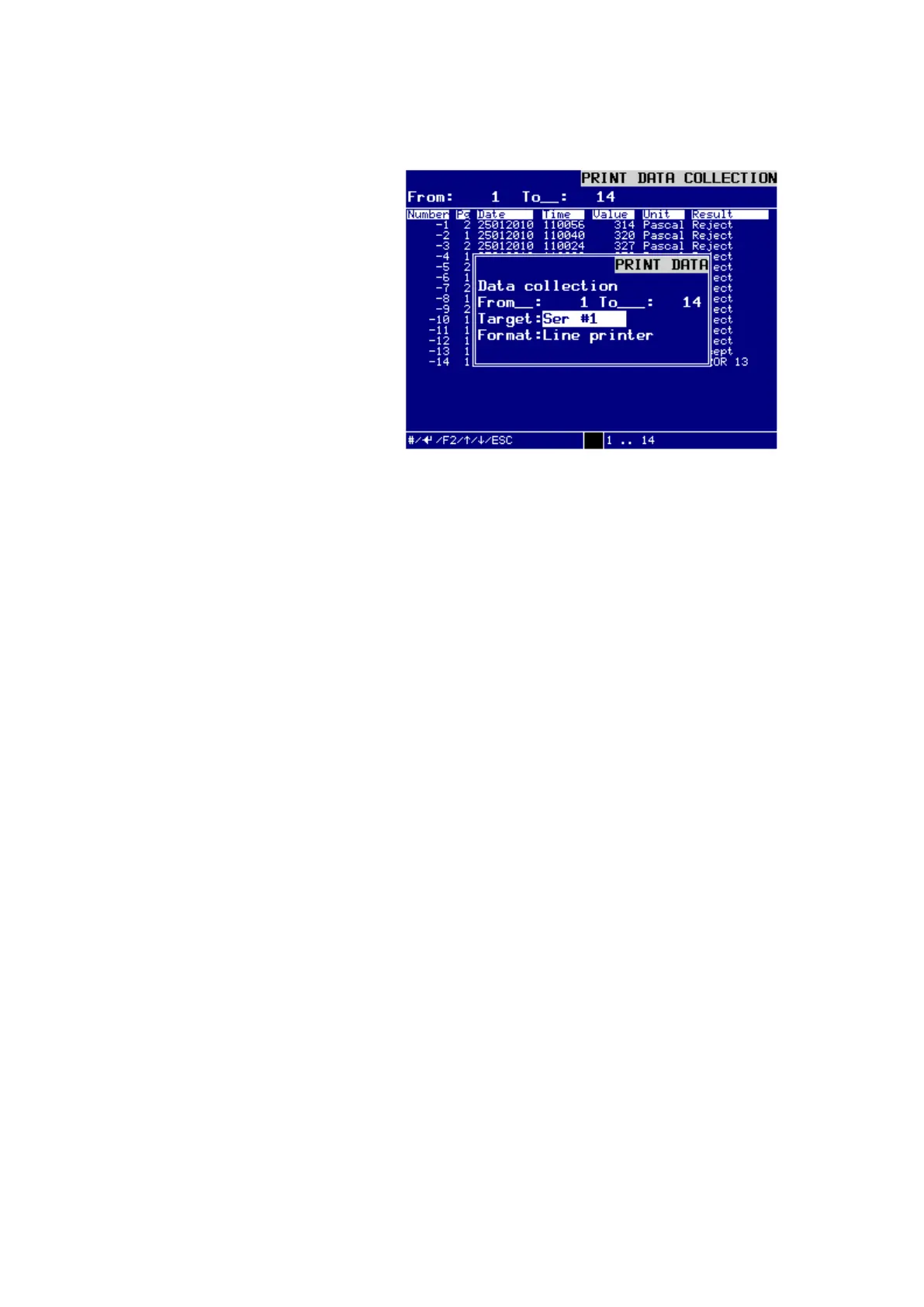

Dialog window – Print Data Collection
 from: / to:
Enter the range of previous date collection you want to output into the text fields
from: und to:, and confirm these entries with the ENTER-key.
Possible entries range from 1 … 7000 (depending on the memory size).
 Target:
Press the keys – and + to determine the desired TARGET for the data output:
You can select between:
Ser #1,
Ser #2 (optional),
USB-Stick.
Confirm the selection by pressing the ENTER-key.
 Format:
Press the keys – and + to determine the desired FROMAT for the data output:
You can select between:
LINE printer.
Confirm the selection by pressing the ENTER-key.
 You can output the selected program parameter through the selected interface by
pressing the F2-key.
The message Print data is active! is display in the display.
 Press the ESC-key to exit the menu.
