Command reference Menu 3. SETUP
EN 3925-0060 V207-00 MANUAL R03.doc
HeMaTech
Prüftechnik
4.1 Printout SEQUENCER PARAMETER
Here you can decide whether the program parameters should be shown on the display
or be printed out via an interface. Additional you can select which program parame-
ters should be displayed or printed out.

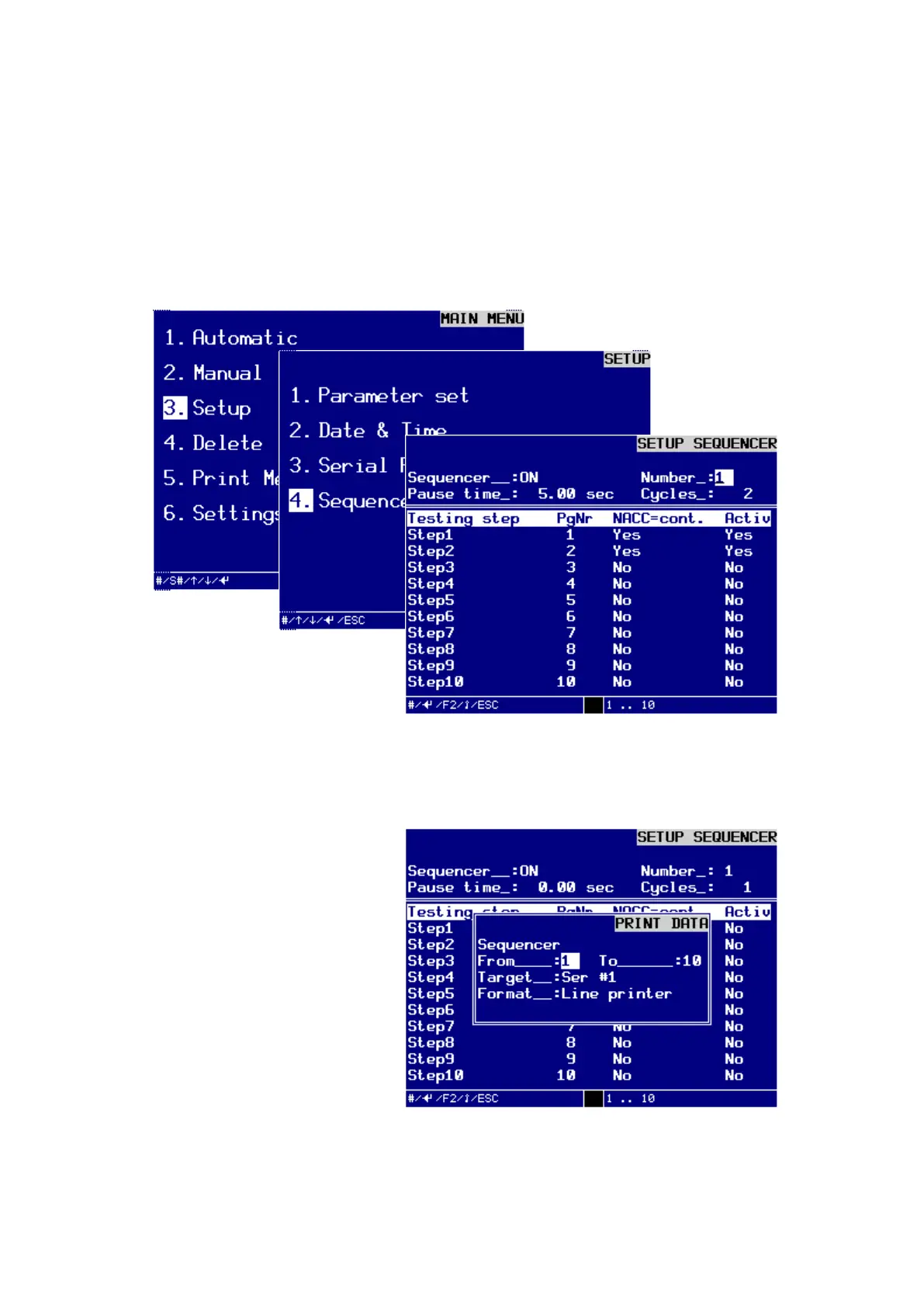

In the MAIN MENU / 3. Setup you will find the dialog menu SETUP.
In the Menü SETUP / 1. Parameter set you can select the program number. The pro-
gram parameters will be shown in the display.
Dialog window SET PARAMETER
Press key F2 to activate the dialog window PRINT DATA for data transfer via in-
terface.
On the display appears the window Print Data.
Set Parameter – Print Data
from: / to:
Enter the range of previous program parameter you want to output into the text
