Signal Exchange with Machine Control In semi-automatic operation
EN 3925-0060 V207-00 MANUAL R03.doc
HeMaTech
Prüftechnik

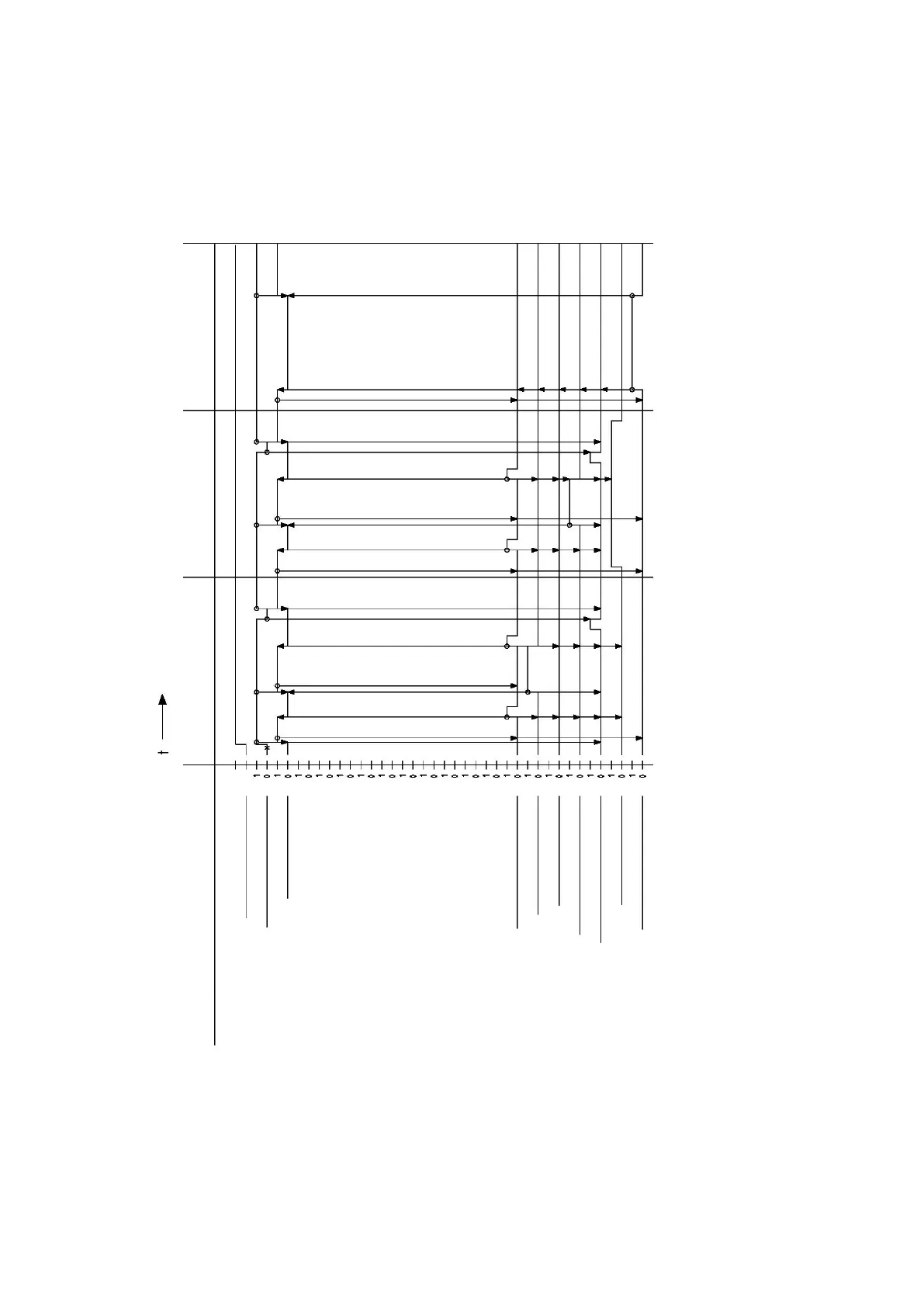

Semi-automatic operation in a time-way diagram
Measurement with
Leak simulation
Measurement without
Leak simulation
Main switch OFF/ON
Input: Automatic
Output: Ready for operation
Program -
number
Input via keypad
Input: Start
Output: No Leak
Output: Rework 1
Output: Leak
Output: Fault
Input: Leak simulation
Input: Static Test (Flooding) On
The input “Start” should be a pulse with a length of approx. 1 seconds.
* Entry point after removing the dignal “Abort”. This signal deletes all outputs and interrupts the measuring
process at any point (only in automatic mode). The specimen is vented (e.g. for emergency stop).
