(7) Triggering

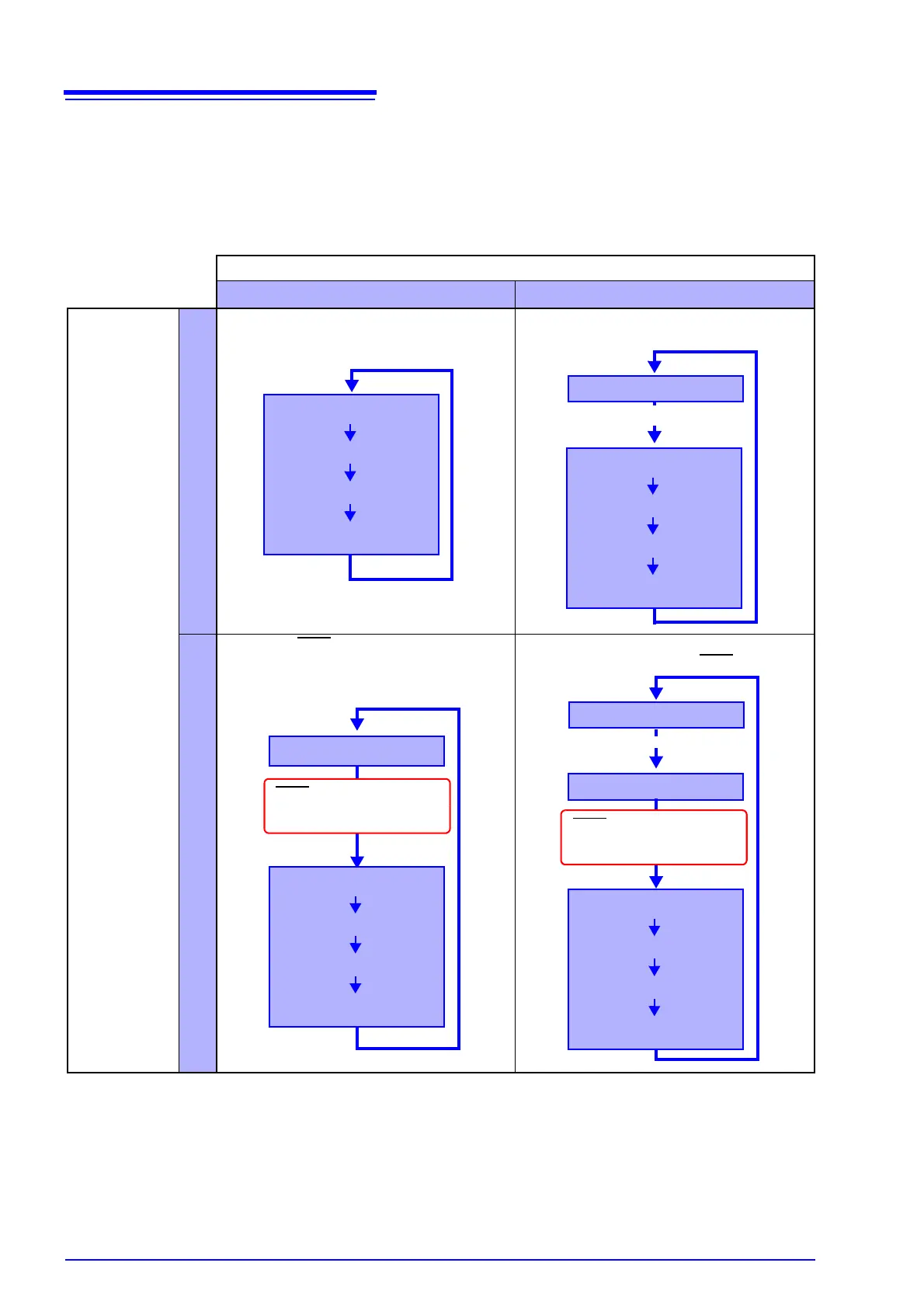

Relationship Between Trigger Source and Continuous Measurement Operation
Operation depends on the continuous measurement setting (
:INITIATE:CONTINUOUS, (p. 139)) and
the trigger source setting (
:TRIGGER:SOURCE,(p. 139)), as follows.
See: "9.8 Data Exporting Methods" (p. 148)
Measurement Flow
Continuous Measurement Command-Specific Settings
:INITIATE:CONTINUOUS ON :INITIATE:CONTINUOUS OFF
Trigger
Source
:TRIGGER:SOURCE IMM
Free-Run state.
Measurement continues automatically.
Trigger by :INITIATE (or :READ?) com-
mand.
:TRIGGER:SOURCE EXT
Trigger by TRIG signal, F4 [MANU] key or

TRG command. After measurement, enters
the trigger wait state.
Issue
:INITIATE (or :READ?) command
to wait for trigger. Trigger by TRIG
signal.
:INITIATE:CONTINUOUS OFF
Can only be set by Remote command.
If this has been set to OFF when operation is returned to the Local state or power is turned off, the following state occurs
when power is turned back on.
:INITIATE:CONTINUOUS ON ("To cancel the Remote state (enter the local state)" (p. 104)
Exporting measured values: "9.8 Data Exporting Methods" (p. 148)
Measurement
Calculation
Measured Value Output
Trigger Delay
Idle State
Measurement
Calculation
Measured Value Output
Trigger Delay
:INITIATE:IMMEDIATE
or :READ?
Trigger Wait State
Measurement
Calculation
Measured Value Output
Trigger Delay
TRIG signal, F4 [MANU]
key, TRG
Trigger Wait State
Measurement
Calculation
Measured Value Output
Trigger Delay
Idle State
TRIG signal
:INITIATE:IMMEDIATE
or :READ?
