ll internal brake components should be
cleaned in new brake fluid only. Do not use
solvents as they will cause seals to swell and
distort.

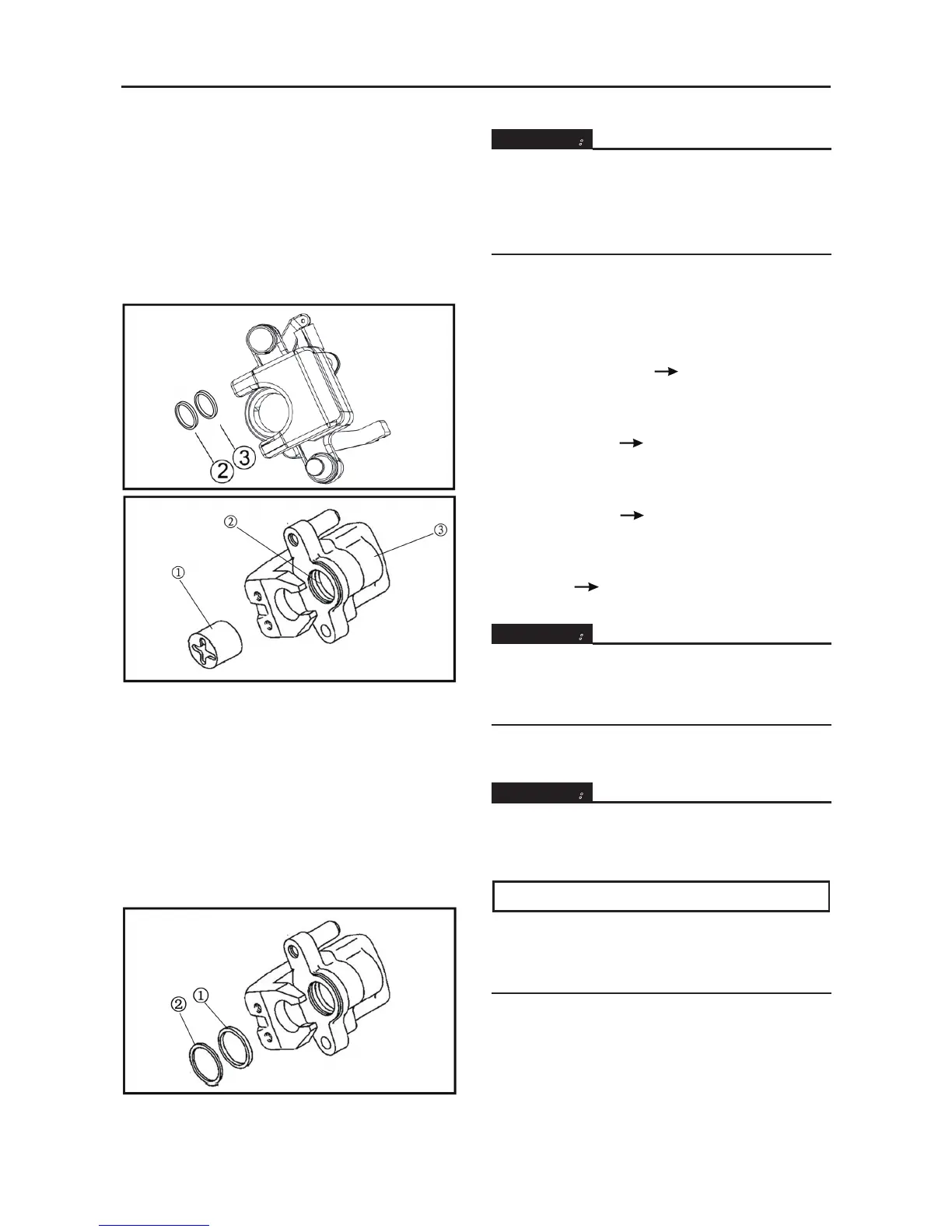

1. Check:
• brake caliper pistons ①
Scratches/rust/wear
Replace the brake
caliper assembly.
• brake caliper cylinders ②
Wear/scratches
Replace the brake
Caliper assembly.
• brake caliper body ③
Cracks/damage
Replace.
• brake fluid delivery passage (brake caliper
body)
Blockage
Blow out with compressed air.
1WARNING
：
Replace the caliper piston seals and dust
seals whenever the brake caliper is
disassembled.
ASSEMBLING THE REAR BRAKE CALIPER
1WARNING
：
• All internal brake components should be
cleaned and lubricated with new brake fluid
only before installation.
Must use DOT4 Brake Fluid
• Replace the caliper piston seal and dust
seal whenever a brake caliper is
disassembled.
1. Install:
• caliper piston seal ①
• dust seal ②
2. Install:
