brake arm is aligned with the punch mark ⓐ
on the rear brake arm shaft.
d. Turn the rear brake arm until it contacts the pin
ⓓ.
e. Finger tighten the set bolt.
f. Tighten the rear brake arm nut.

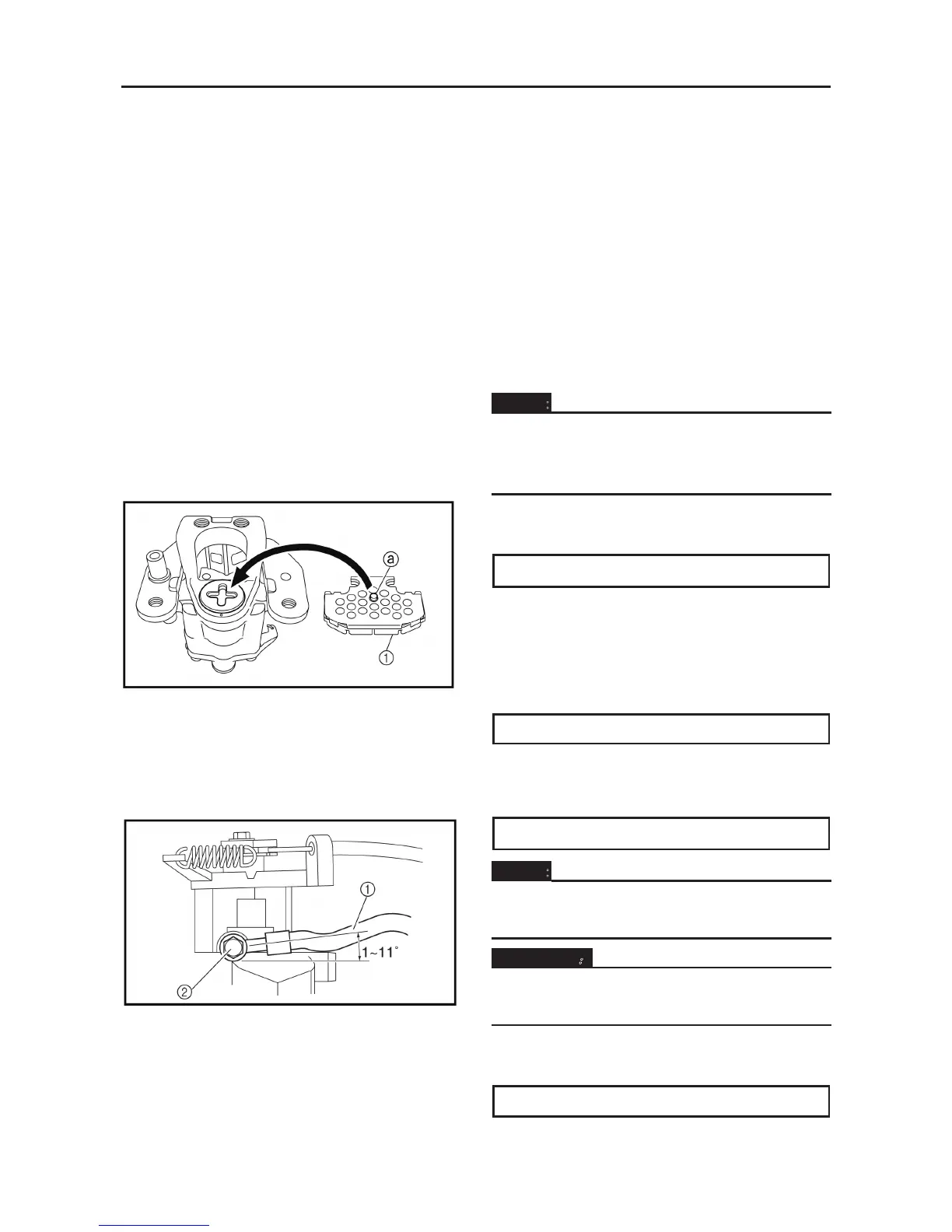

5. Install:
• brake pad (piston side) ①
(with insulator and pad shim)
1NOTE:
Align the projection a on the piston side of
the brake pad with the groove in the brake
caliper piston.
6. Install:
• brake pad holding bolts
17Nm (1.7 m · kg,12 ft · lb)
INSTALLING THE REAR BRAKE CALIPER
1. Install:
• brake caliper assembly
• brake caliper mounting bolts
40Nm (4.0m · kg,29 ft · lb)
• brake hose ①
• copper washers
• union bolt ②
48Nm (4.8m · kg,35 ft · lb)
1NOTE:
Tighten the union bolt while holding the
brake hose as shown.
1WARNING
：
Proper brake hose routing is essential to
insure safe vehicle operation.
2. Fill:
• brake reservoir
Must use DOT4 Brake Fluid
To Next Page
