Affirm Breast Biopsy Guidance System User Guide
Chapter 3: Installation, Verification, and Removal
MAN-06411-002 Revision 003 Page 29
4. Slide the disposable needle guide (item 1) over the pin on the end of the needle guide
holder (item 2).

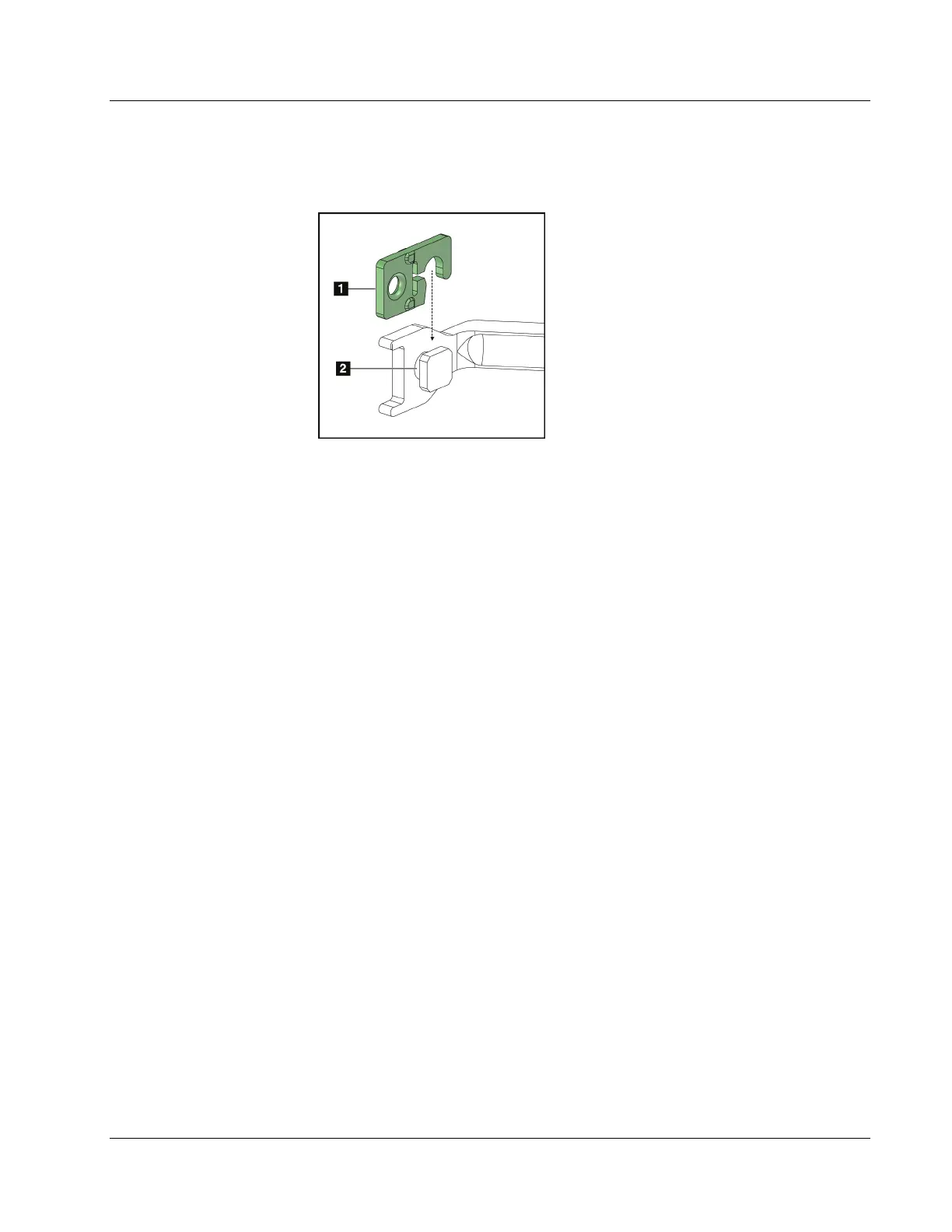

Figure 22: Installing a Disposable Needle Guide
on a Needle Guide Holder (Lateral Arm)
Figure Legend
1. Disposable Needle Guide
2. Needle Guide Holder
Removal of the disposable Needle Guide
1. Remove the biopsy device and adapter from the device mount.
2. Pull the disposable needle guide away from the pin on the needle guide holder.
3. Discard the disposable needle guide in accordance with local regulations.
