Hologic Affirm - Figure 35: Target Guidance Screen for Lateral Arm

Affirm Breast Biopsy Guidance System User Guide
Chapter 4: User Interface - Biopsy Control Module
MAN-06411-002 Revision 003 Page 43
Note
The X, Y, and Z cells in the screen can change color as target coordinates change. Refer
to Colored Cells in the Screens on page 44.

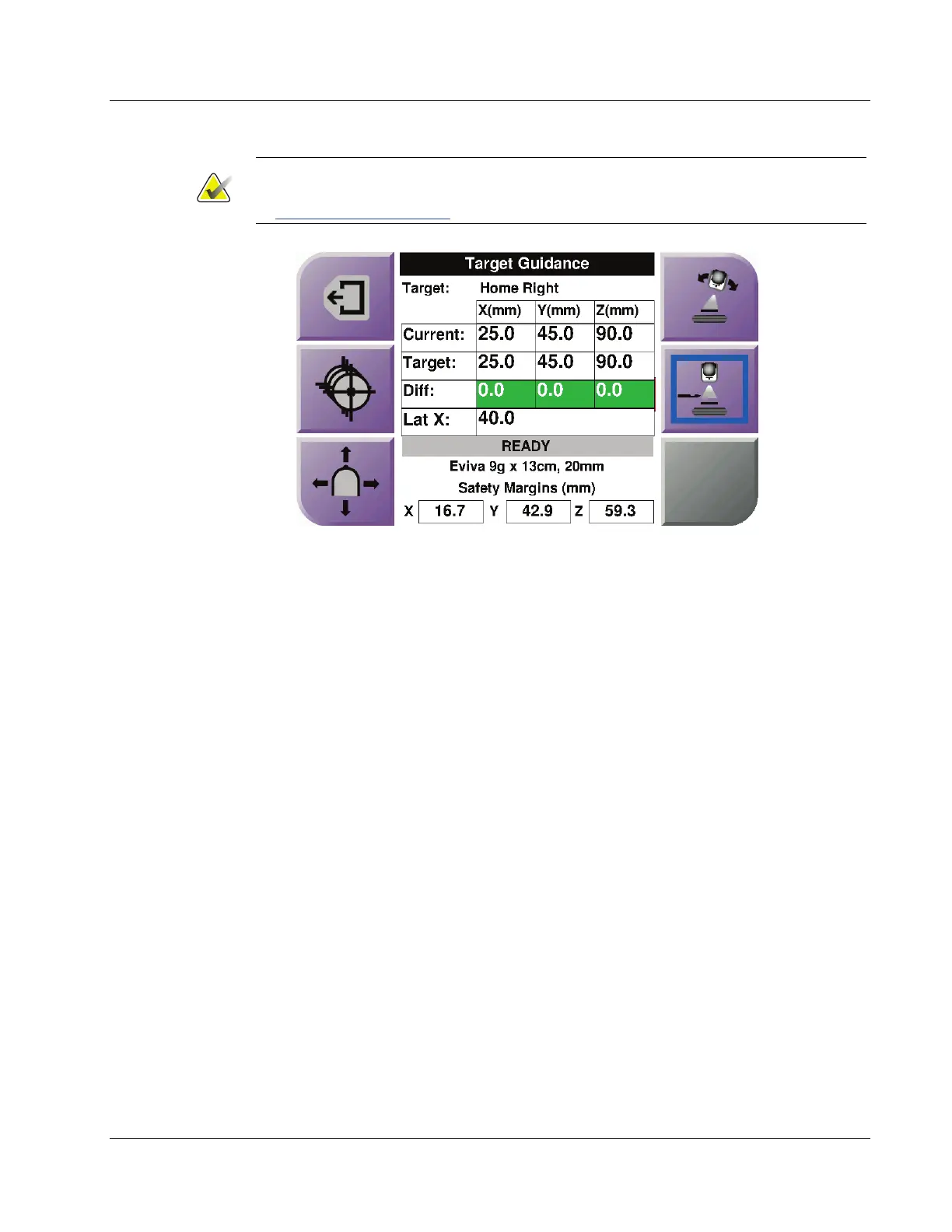

Figure 35: Target Guidance Screen for Lateral Arm
When the Lateral Arm is installed, the Target Guidance screen includes a field for the Lat
X value.
The disabled gray button on the right side of the screen is now the Lateral Arm
Mounting Side button (item 6 in the previous figure).The Lateral Arm Mounting Side
button on the right side of the screen shows the side of approach for the biopsy. Press the
Lateral Arm Mounting Side button to return to the Confirmation screen for the Lateral
Arm Mounting Side.
