Affirm Breast Biopsy Guidance System User Guide

Appendix A: System Specifications

Page 86 MAN-06411-002 Revision 003

A.2 Lateral Arm Measurements

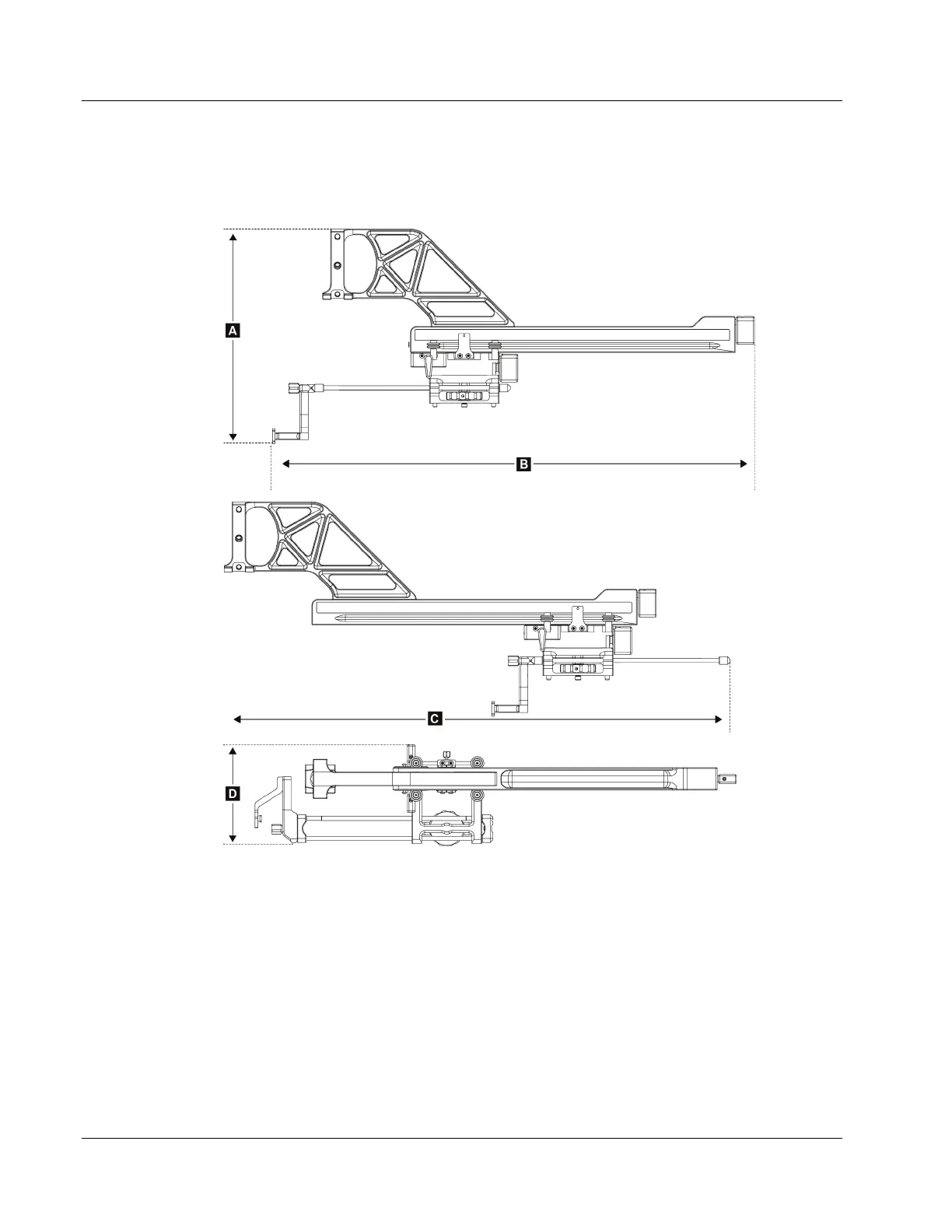

Figure 75: Lateral Arm

A. Height

24.4 cm (9.6 inches)

B. Width (Biopsy Device Mount

and Needle Guide extended

toward Lateral Arm Mount)

53.0 cm (20.9 inches)

C. Width (Biopsy Device Mount

and Needle Guide extended

toward Lateral Arm Mount)

57.4 cm (22.6 inches)

D. Depth

11.5 cm (4.5 inches)

Weight

1.24 kg (2.73 pounds)
