Hologic Affirm - Storage Case for the Lateral Arm; Figure 32: Lateral Arm and Storage Case

116 pages

Save Page as PDF

To Next Page

To Previous Page

Affirm Breast Biopsy Guidance System User Guide

Chapter 3: Installation, Verification, and Removal

MAN-06411-002 Revision 003 Page 39

3.8 Storage Case for the Lateral Arm

The Lateral Arm is supplied with a storage case to safely store all the Lateral Arm

components. The Lateral Arm QAS Phantom is also stored in the storage case. To protect

the equipment and to maintain accuracy, always store the Lateral Arm and its

components in its case.

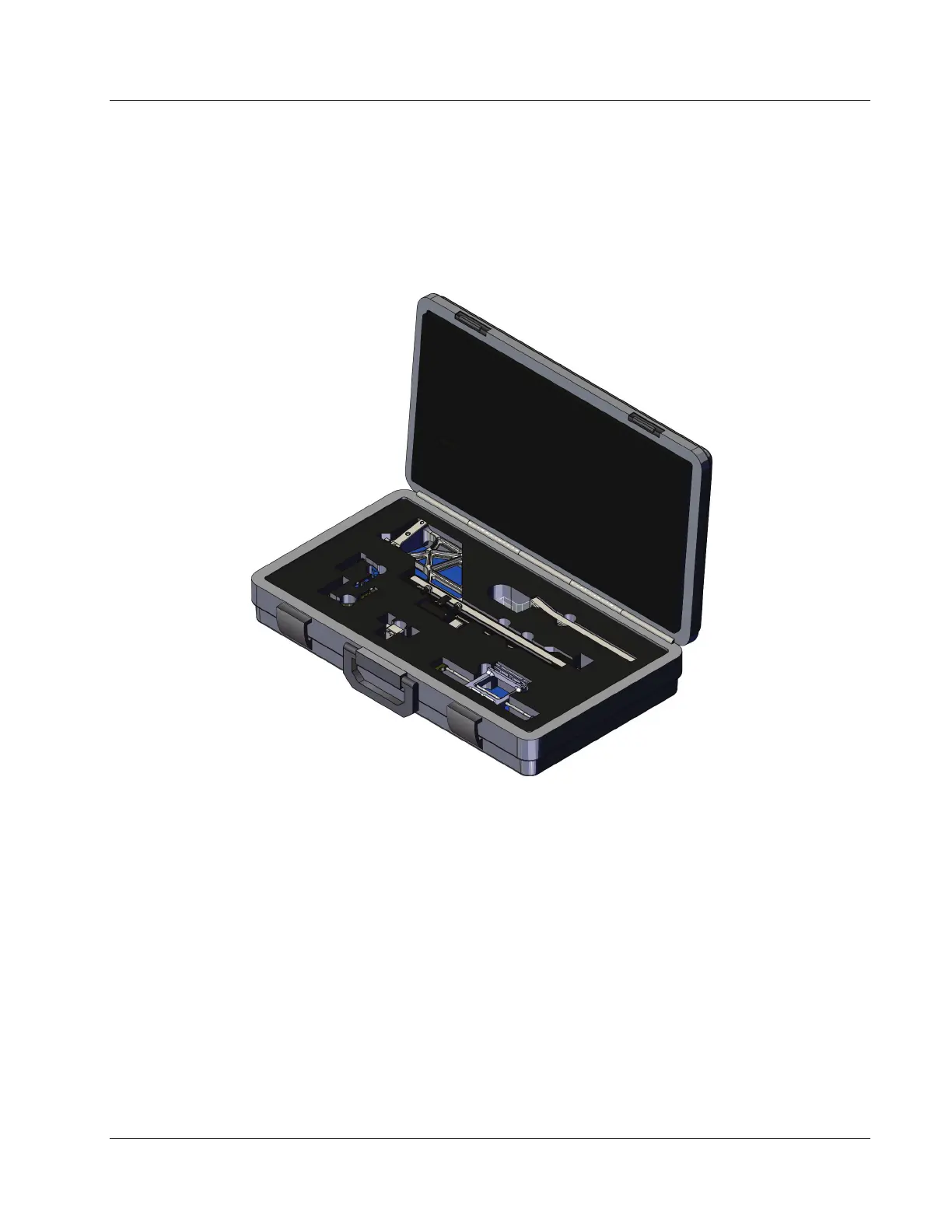

Figure 32: Lateral Arm and Storage Case
