The QAS screen opens. A dialog box prompts you to install the QAS phantom and
shows the position of the coordinates for the test.
Note
The dialog box says to install the QAS "needle" but is referring to the QAS phantom.

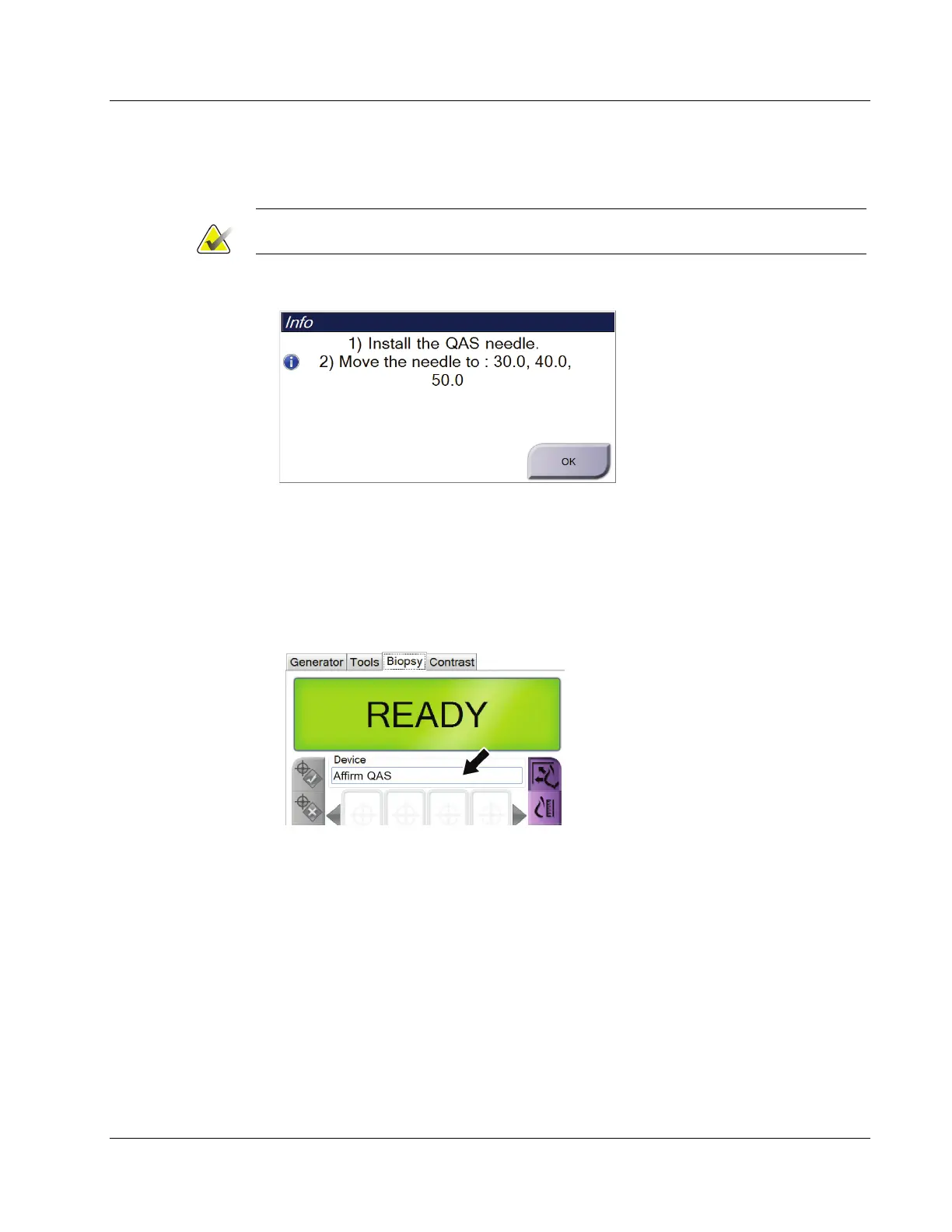

Figure 69: QAS Test Info Dialog Box
4. Install the QAS Phantom. (If the QAS Phantom uses a needle, fully extend the
needle.)
5. In the Info dialog box, select OK.
6. On the QAS screen, select the Biopsy tab. Make sure that Affirm QAS appears in the
Device field.
Figure 70: Device Field in the Biopsy Tab
7. Press and hold a right or left Motor Enable button pair on the Biopsy Control
Module. The QAS Phantom moves automatically to pre-programmed X and Y
positions.
8. Turn the Biopsy Device Advance/Retract knob until "0.0" displays on the Diff line in
all three columns of the Biopsy Control Module.
