Affirm Breast Biopsy Guidance System User Guide
Chapter 6: Quality Control
Page 76 MAN-06411-002 Revision 003
The QAS screen opens. A dialog box prompts you to install the QAS phantom and
shows the position of the coordinates for the test.
Note
The dialog box says to install the QAS "needle" but is referring to the QAS phantom.

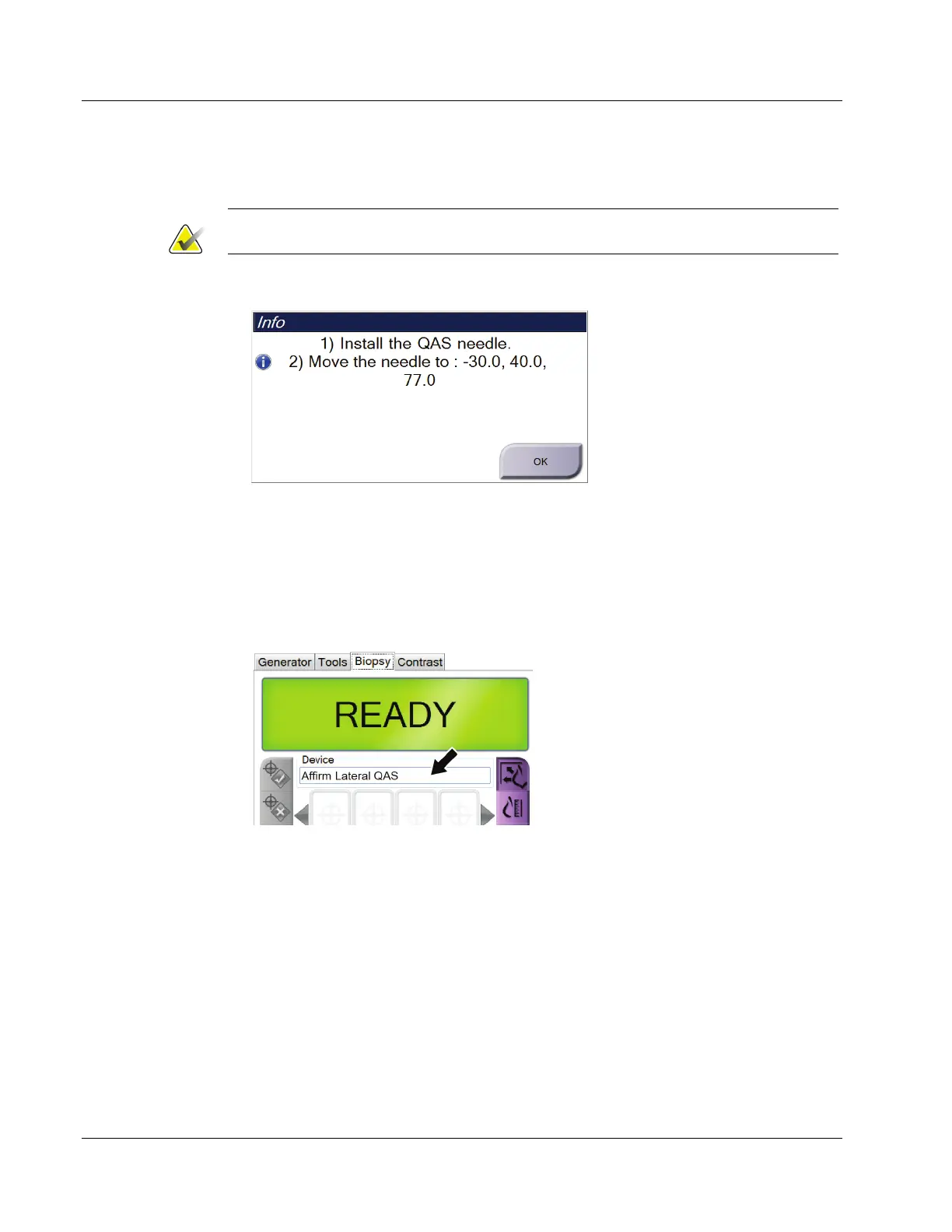

Figure 72: Lateral QAS Test Info Dialog Box
4. Install the Lateral Arm assembly and the Lateral Arm QAS Phantom on the left side
of the Affirm system.
5. In the Info dialog box, select OK.
6. On the QAS screen, select the Biopsy tab. Make sure that Affirm Lateral QAS
appears in the Device field.
Figure 73: Device Field in the Biopsy Tab
7. Press and hold a right or left Motor Enable button pair on the Biopsy Control
Module. The QAS Phantom moves automatically to pre-programmed X and Y
positions.
8. Turn the Biopsy Device Advance/Retract knob until "0.0" displays on the Diff line in
all three columns of the Biopsy Control Module.
