ThinPrep™ 5000 Processor with AutoLoader Operator’s Manual
8.7
MAINTENANCE

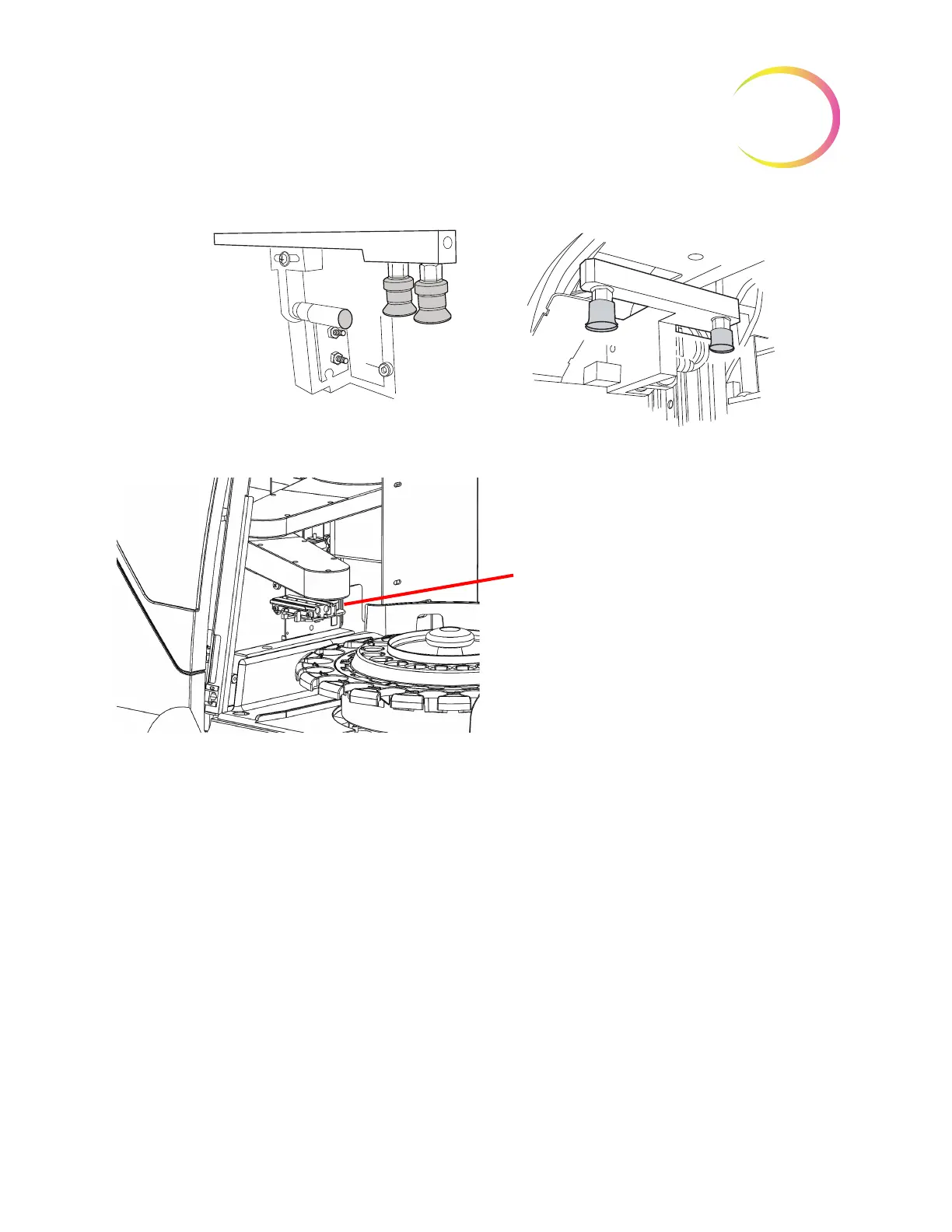

Figure 8-6 Clean Slide Holder Pneumatic Suction Cups
Empty the Filter and Slide Waste Bins
The right-most cabinet of the AutoLoader is the waste area compartment. Open this door to access
the filter waste bin and the slide waste bin. (The liquid waste bottle and the fume extractor are also
located in this area.) See Figure 8-7.
Wipe off sensor
lens and suction
cups
Slide cassette compartment
Slide processing area
AutoLoader slide gripper on the robot arm
