MPA2C3 User Manual 135
6. Power down; then power the panel back up. The RUN LED should flash normal.
7. The panel is now reset to the original factory default values.
Resetting the Panel
1. Navigate to the Settings panel:
• Dashboard > Panels > Settings, or
• Menu > Panel Configuration > Settings.

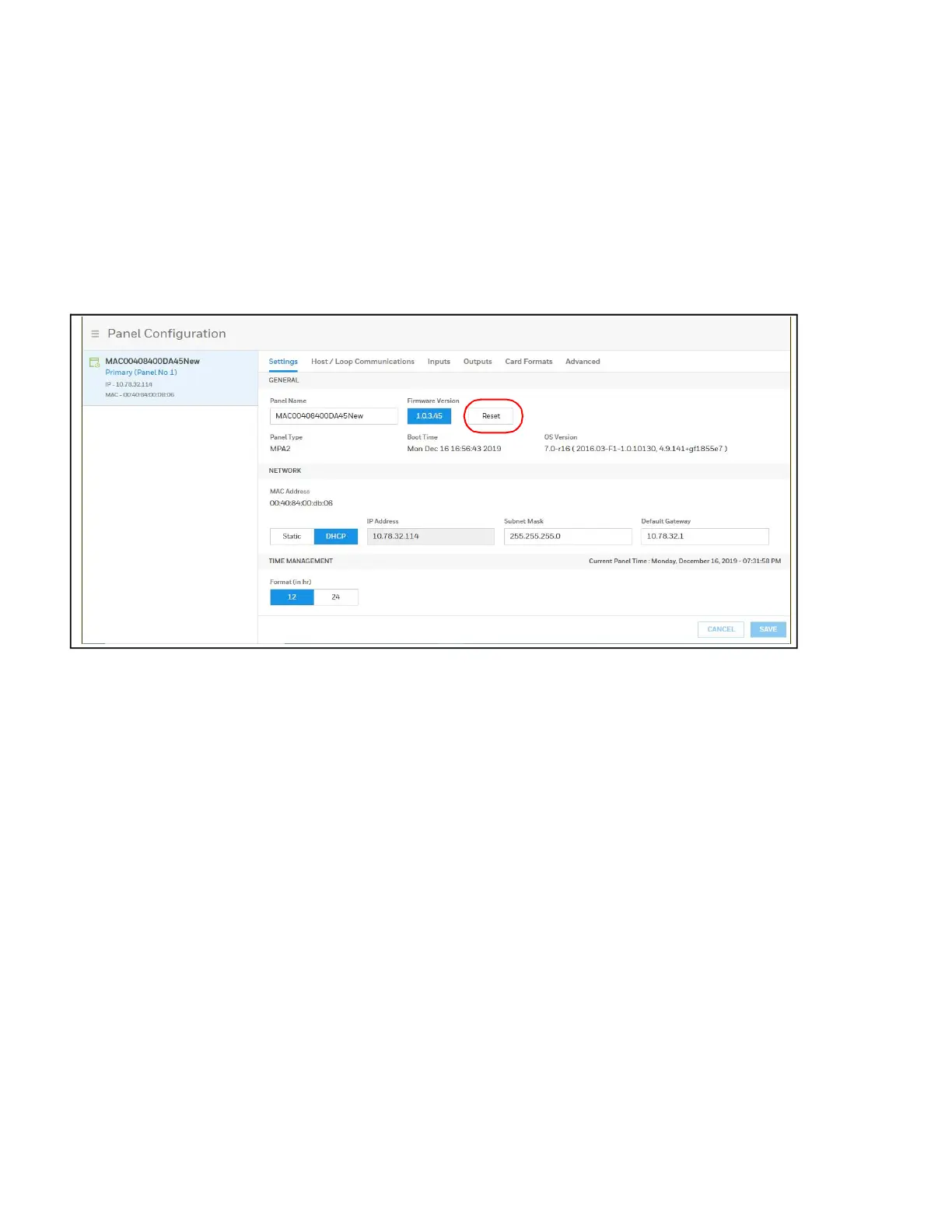

Figure 1-2 Settings Panel
2. Click Reset.
Click OK to reboot the panel.
Firmware Upgrades
Panel Requirements
MPA2C3 panels must first be upgraded to latest firmware. See the release notes for more
information.
Note: The secondary (downstream) EVL panels should be upgraded first, and then the
primary (MASTER).
Overview
The following procedures provide step-by-step instructions for upgrading the
MPA2C3 controller.
