Honeywell XENON 1902 User Manual

324 Xenon/Granit User Guide
Standard Connector Pinouts
Note: The following pin assignments are not compatible with Honeywell legacy products.
Use of a cable with improper pin assignments may lead to damage to the unit. Use of
any cables not provided by the manufacturer may result in damage not covered by
your warranty.

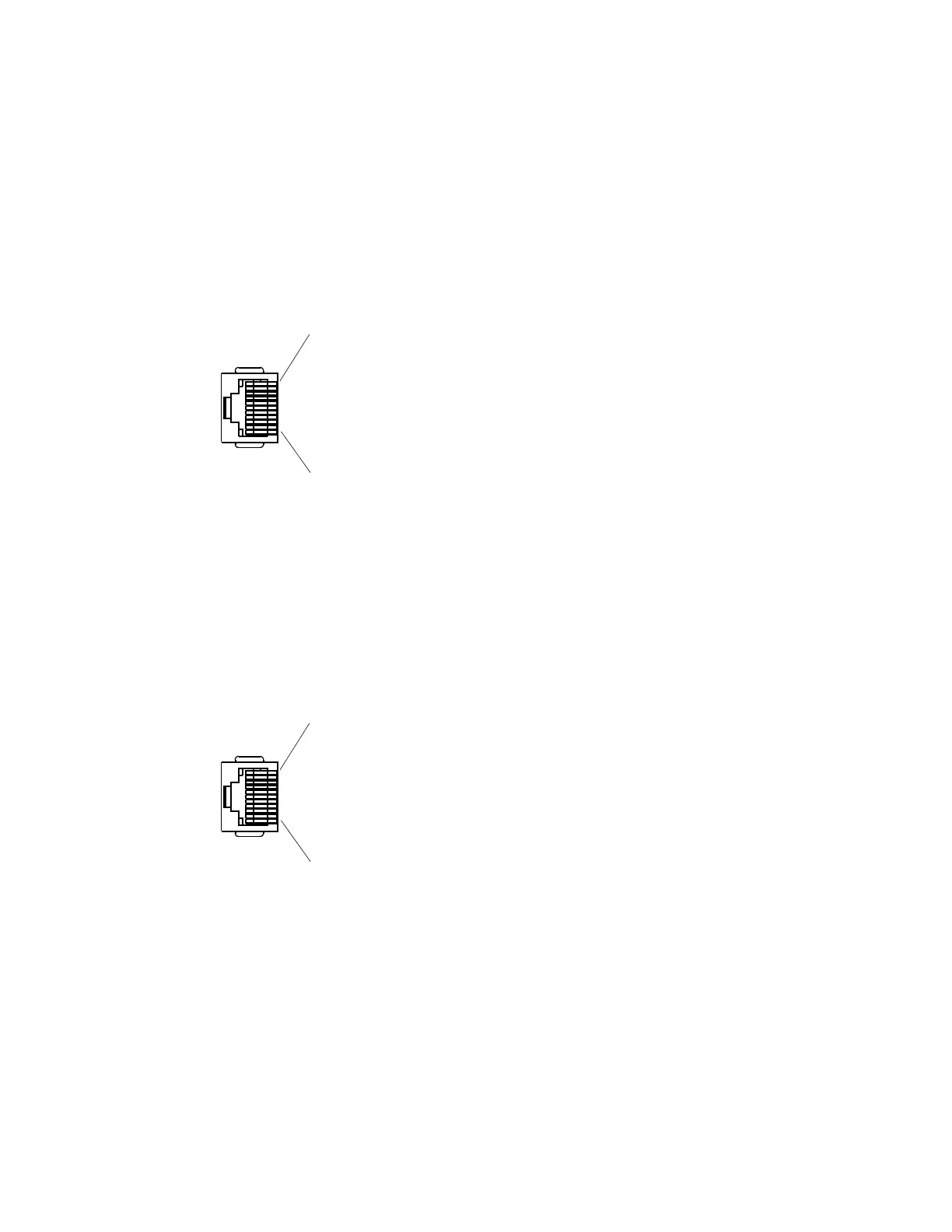

Keyboard Wedge
10 Pin RJ41 Modular Plug - connects to the base
Serial Output
10 Pin RJ41 Modular Plug - connects to the base
1Cable shield
2Cable select
3Supply ground
4Terminal data
5Terminal clock
6Keyboard clock
7+5V power
8Keyboard data
9
10
1Cable shield
2Cable select
3Supply ground
4Transmit data
5Receive data - serial data to scanner
6CTS
7+5V power
8RTS
9
10

Honeywell XENON 1902 Specifications

General

Operating frequency	2400 - 2500 MHz
Standard interfaces	Bluetooth
Connectivity technology	Wireless
Sensor type	Laser
Scanner type	1D/2D
Pitch reading angle	-45 - 45 °
Light levels (direct sunlight)	0 - 100000 lx
Linear (1D) barcodes supported	-
Battery life	14 h
Charging time	4.5 h
Input voltage	5 V
Battery capacity	1800 mAh
Power source type	Battery
Number of reads per charge	50000
Power consumption (standby)	0.5 W
Shockproof	Yes
Certification	CE, UL
Product color	Black
International Protection (IP) code	IP41
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 95 %
Sustainability certificates	RoHS

Weight and Dimensions

Depth	104 mm
Width	71 mm
Height	160 mm
Weight	214 g
Base weight	179 g
Base dimensions	132 x 102 x 81 mm
