Honeywell XENON 1902

Xenon/Granit User Guide 325
RS485 Output

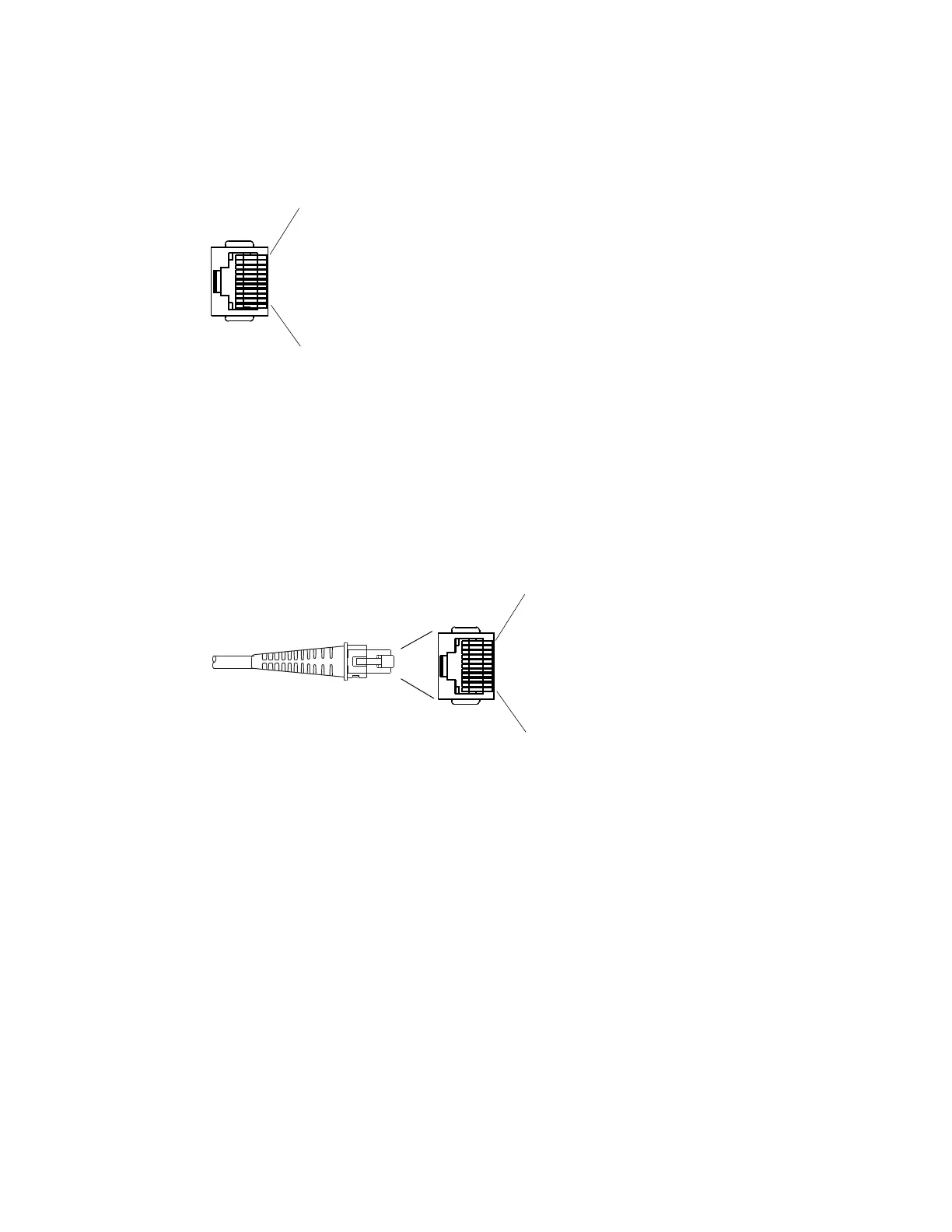

10 Pin RJ41 Modular Plug - connects to the base
Note: RS485 signal conversion is performed in the cable.
USB
10 Pin Modular Plug - connects to the base
1Cable shield
2Cable select
3Supply ground
4Transmit data
5Receive data - serial data to scanner
6
7+5V power
8Transmit Enable
9
10
1Cable shield
2Cable select
3Supply ground
4
5
6
7+5V power
8
9Data +
10Data -
