Removing the Output Board Fan
TIMING
@ ’ ‘- OUTPUT
NO.08114-66506 @ i’

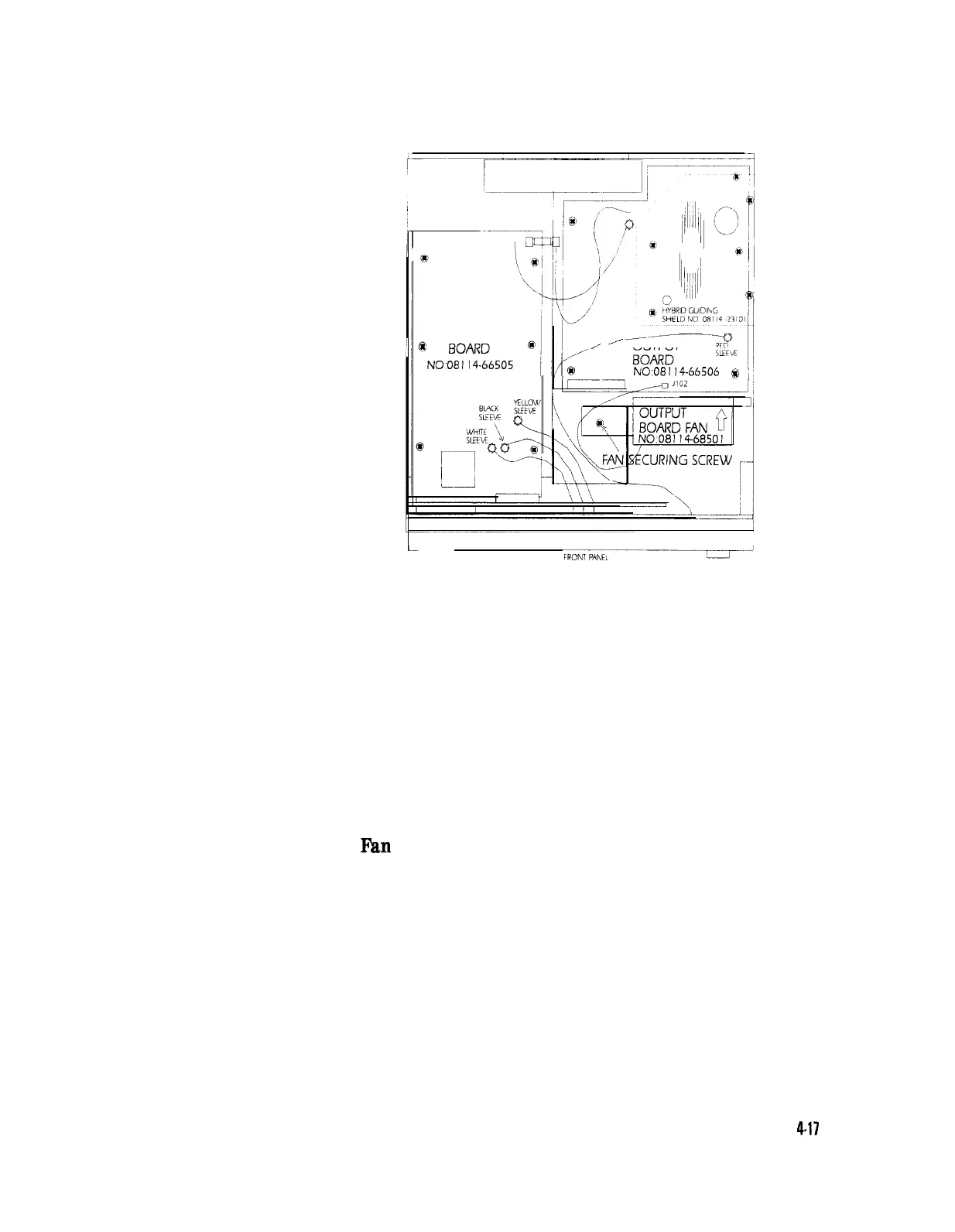

Figure 4-13. Location of the Output Board Fan
1. Follow the instructions for Removing the Instrument Cover,
2. Remove the 1 screw securing the fan and its holder to the chassis.
See Figure 4-13.
3. Disconnect the fan cable 5102 on the output board.
4. Push the fan a little bit towards the front panel at the timing board
side, and pull it out of the guides in the chassis.
Refitting the Output Board F’an
Refitting the output board fan is the reverse procedure of removal.
Disassembly and Reassembly 4-17
