HP 8 114A Service Guide
Initial Tests
There could be a number of reasons why HP 8114A shows no signs of
operating. If the instrument appears to be dead, proceed as indicated
in Figure
5-3.
The figure is divided into two parts: the checks that
you should perform if the instrument appears
t,o
be “dead” are above
t,he
dotted line. If these tests do not solve the problem, continue with
the
t.ests
below the dotted-line. If these tests do not, lead to a section
containing information that does solve the problem, look in the text in
this chapter for a heading that might apply to the fault.

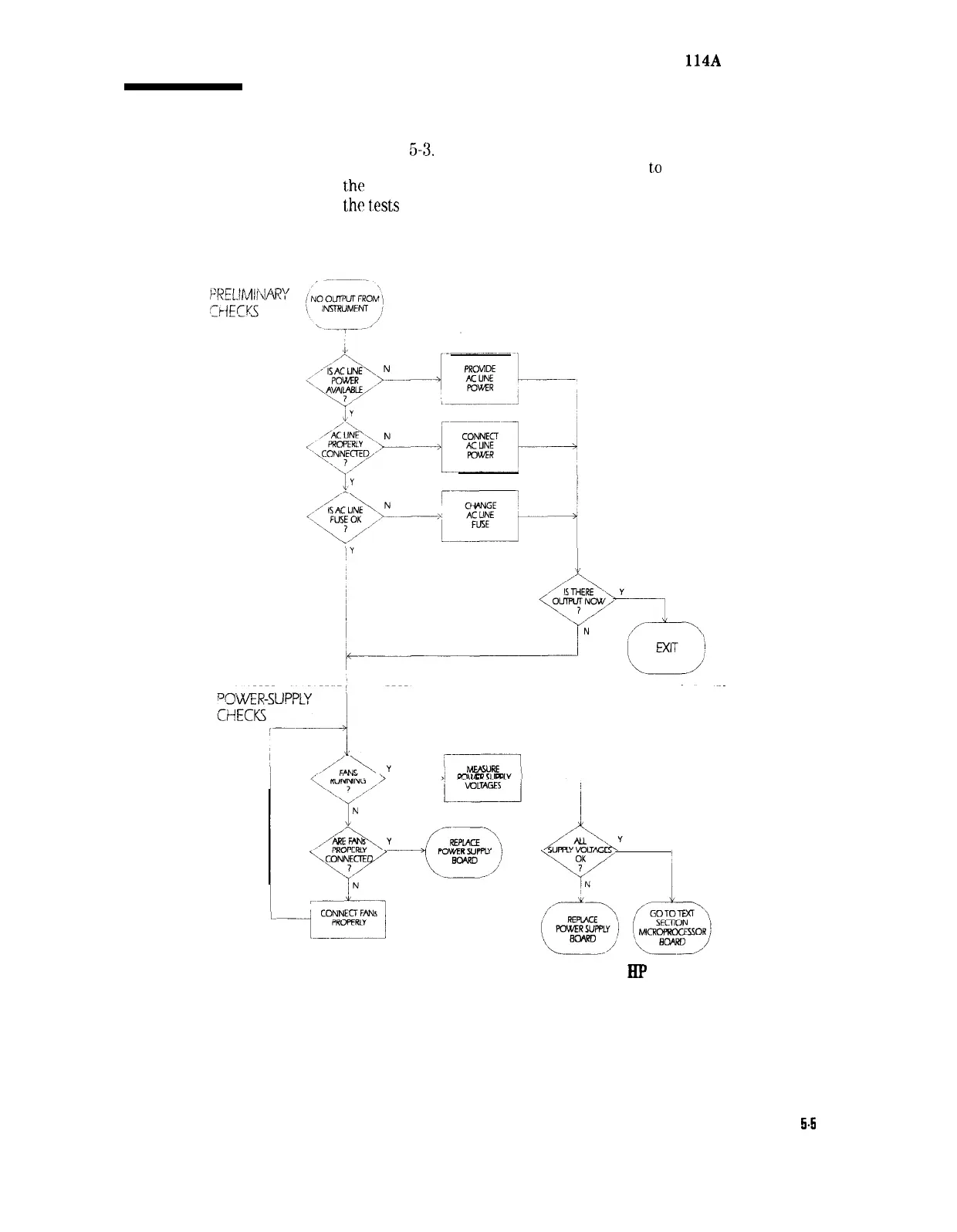

Figure 5-3. getting Started with Troubleshooting the
HP
8114A
Troubleshooting information for the individual boards is given on the
following pages:
Troubleshooting
5-5
