HP 8114A Service Guide
Removing the Instrument Cover
1. Remove the four rear feet. Each foot is secured by one screw. See
Figure 4-3 for the position of the feet.
2. Remove the carrying handles from the case by removing 2 screws
from each side of the case. Both sides have the same fixings.
_-
___---
_- _ --
iHANDLE

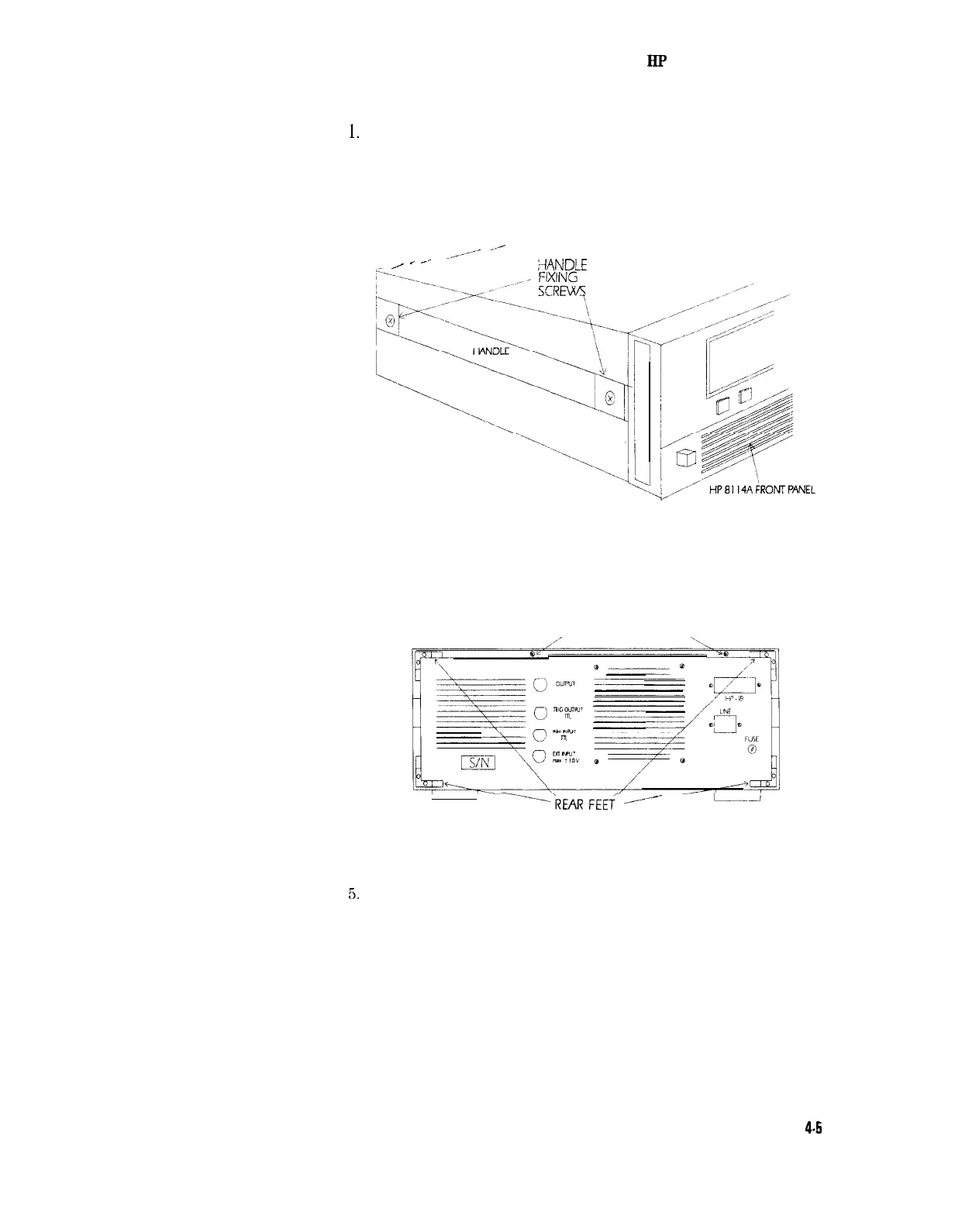

Figure 4-2. Removing the Carrying Handles
3. Remove the two screws securing the cover to the chassis,
Figure 4-3 shows their position.
COVER FIXING SCREWS
I’REAR FEEi ‘-
Figure 4-3. Rear Panel View Showing Cover Fixing Screws
4. Slide the cover about 10 mm back from the front panel.
5. Remove the cover by bending the cover sides away from the
chassis, and lifting the cover up.
Refitting the Instrument Cover
1. Refitting the instrument cover is the reverse procedure of removal.
Disassembly and Reassembly 4.5
