HP 8114A Service Manual

2

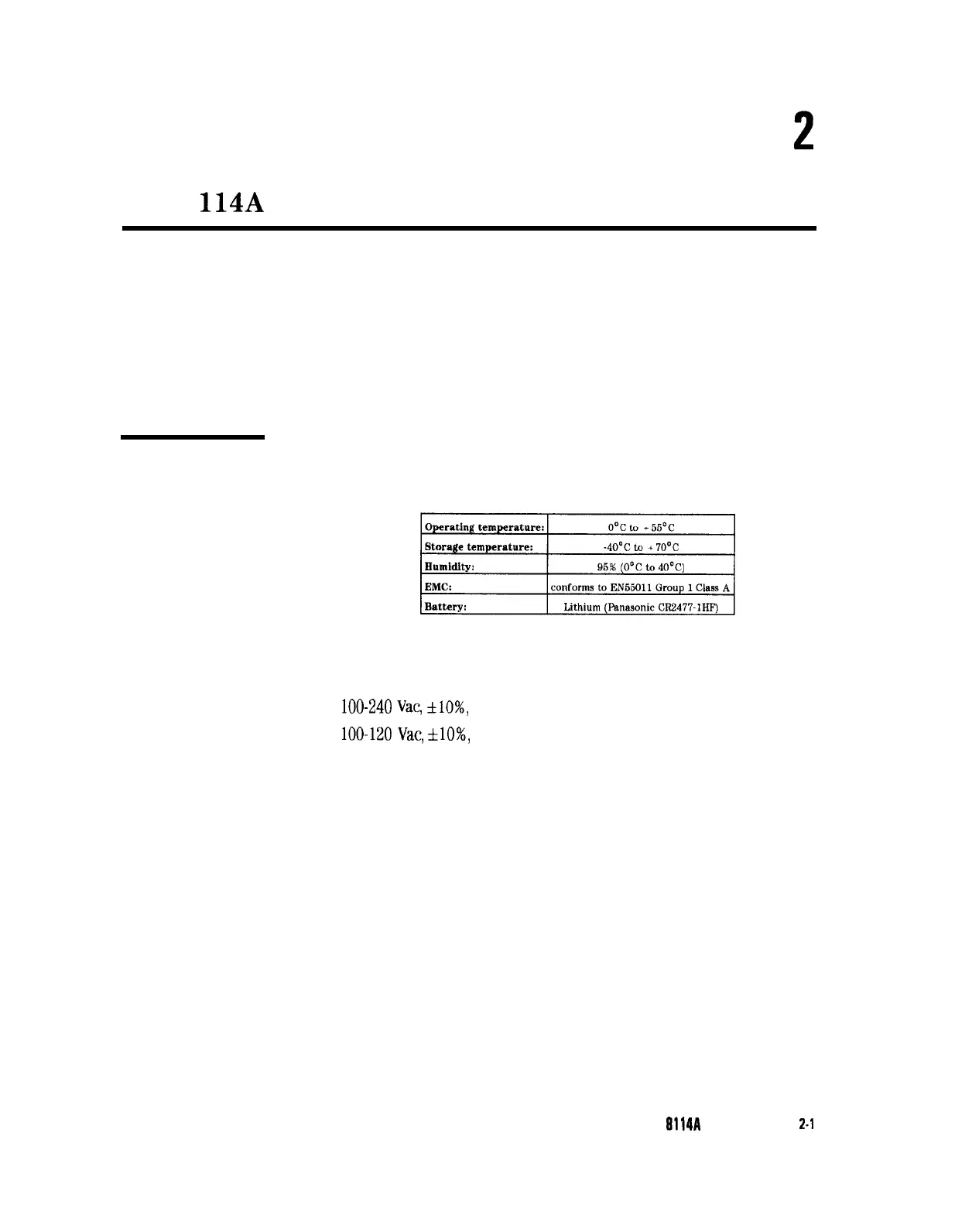

HP 8 114A Pulse Generator Specifications
Specifications describe the instrument’s warranted performance.
Non-warranted values are described as typical. All specifications
apply after a 30 minute warm- up phase with 50 Ohm source
impedance into a 50 Ohm load, and are valid from 0°C to 55°C
ambient temperature. Non-warranted values are described as
‘typical’. Parameters are are over- and under-programmable outside
their specified ranges.
General
Environmental
Safety
IEC348, safety class 1
Power requirements loo-240 Vat, &lo%, 50-60 Hz;
loo-120 Vat, &lo%, 400 Hz
Power consumption: 500 VA max.
Maximum Dimensions (H x W x D)
133 mm H x 426 mm W x 422 mm D (5.2 in x 16.8 in x 16.6 in)
Weight
Net
14 kg (30.8 lb)
Shipping
17 kg (37.4 lb)
HP 8114A Pulse Generator
2-l

HP 8114A Specifications
