137
Appendix A. Installation and Maintenance
AC Line Power Supply Requirements
the cable does not fit the power outlet, or if the cable is to be
attached to a terminal block, cut the cable at the plug end and rewire
it.
The color coding used in the cable depends on the cable supplied. If
you are connecting a new plug, it should meet the local safety
requirements and include the following features:
• Adequate load-carrying capacity (see table of specifications).
• Ground connection.
• Cable clamp.
The AC power requirements are summarized on the rear panel of
the instrument.
Changing the Battery
The HP 8163A Lightwave Multimeter and the HP 8164A
Lightwave Measurement System contain a lithium thionyl chloride

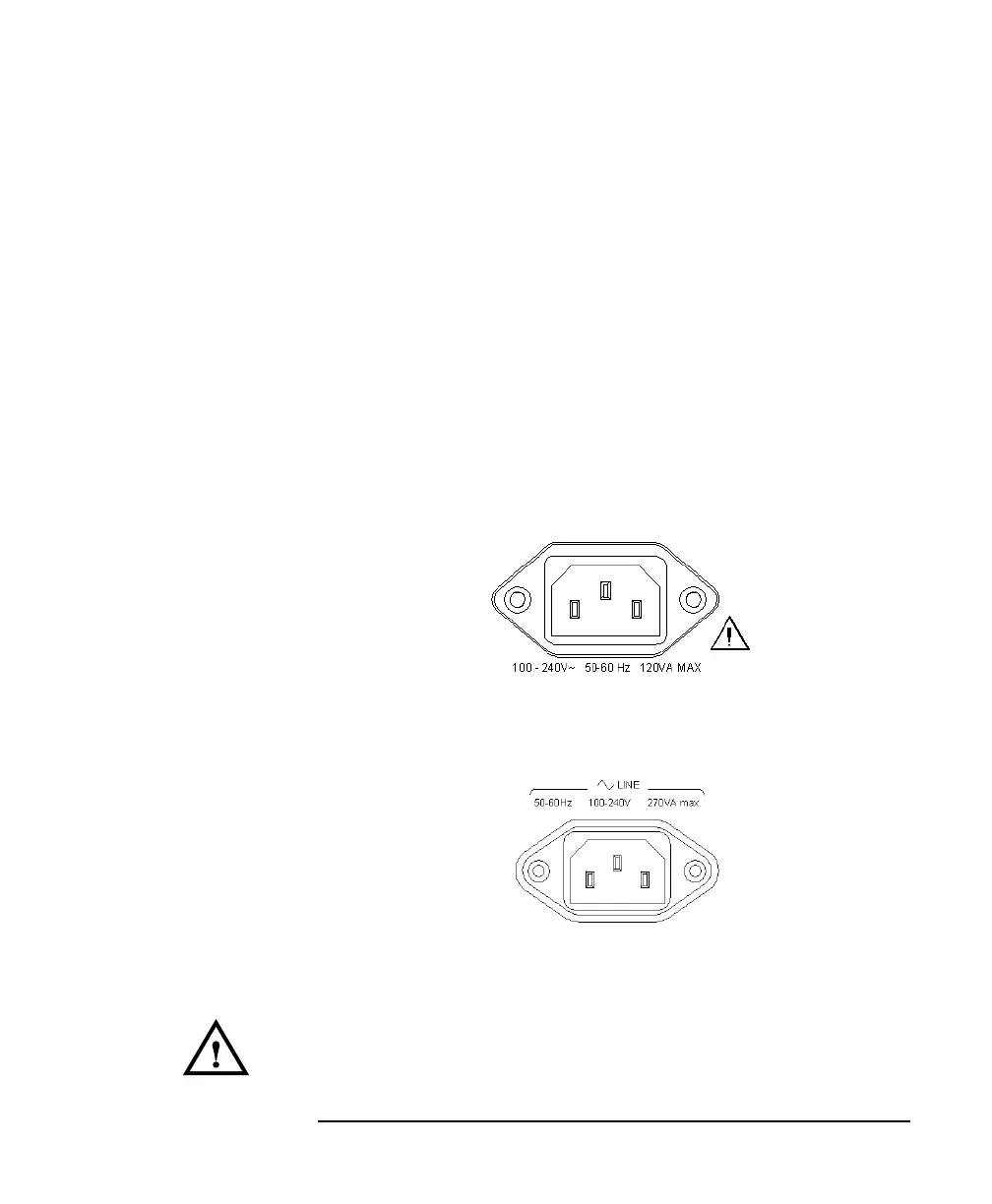

Figure A-3 AC Power Requirement Markings - HP 8163A
Figure A-4 AC Power Requirement Markings - HP 8164A
