Cables and Adapters
The HP-IB connector is compatible with the connectors on the
following cables and adapter.
• HP-IB Cable, 10833A, 1 m (3.3 ft.)
• HP-IB Cable, 10833B, 2 m (6.6 ft.)
• HP-IB Cable, 10833C, 4 m (13.2 ft.)
• HP-IB Cable, 10833D, 0.5 m (1.6 ft.)
• HP-IB Adapter, 10834A, 2.3 cm. extender. Use this adapter if
there is no space to connect your HP-IB cable directly to a
HP-IB interface.
Connector

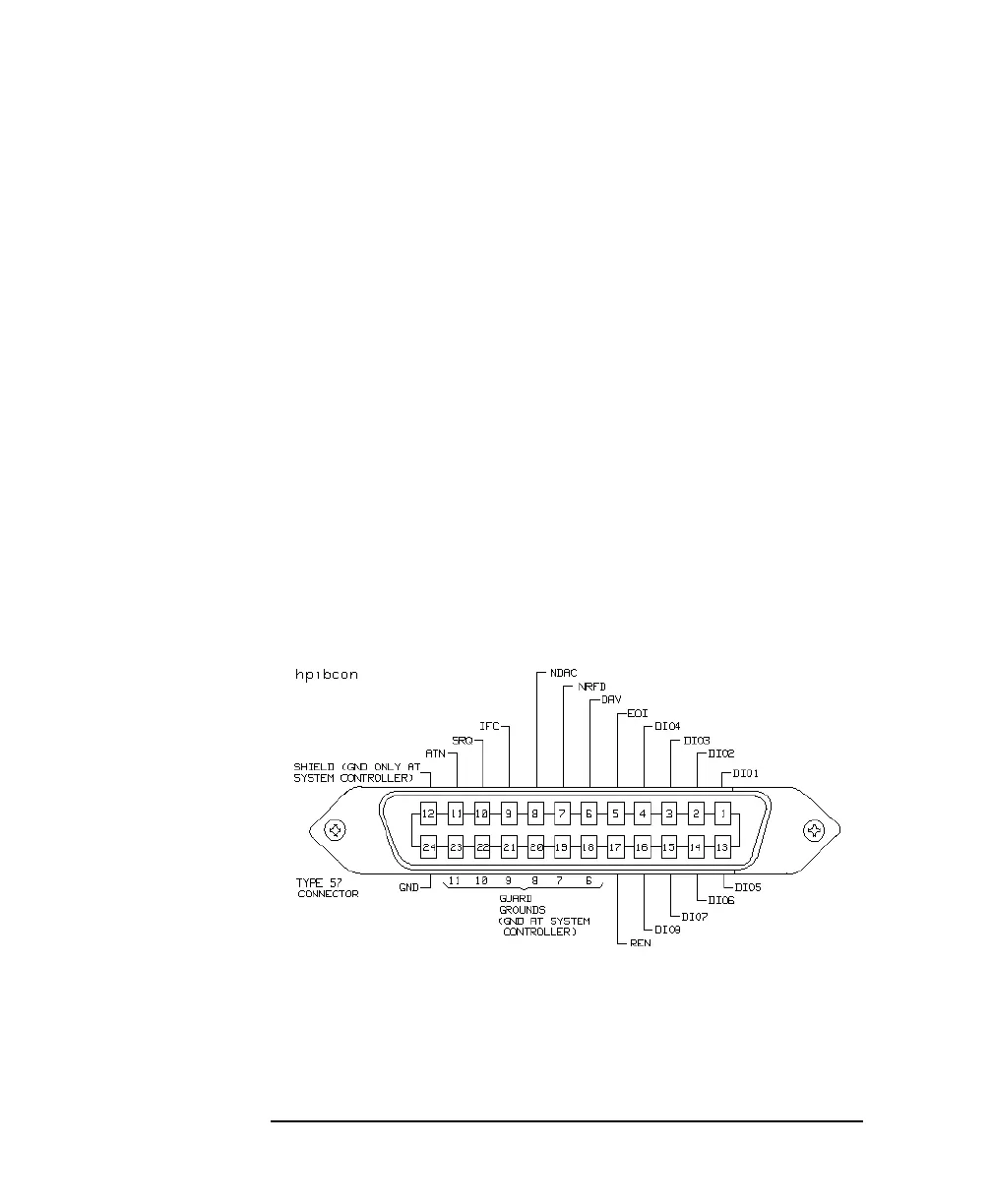

The following figure shows the connector and pin assignments.
Connector Part Number: 1251-0293
Figure A-19 HP-IB Connector
