Power Measurement

How to Measure Power

By pressing the [Hold/Cnt] softkey a second time the screen will

display new measurements continuously.

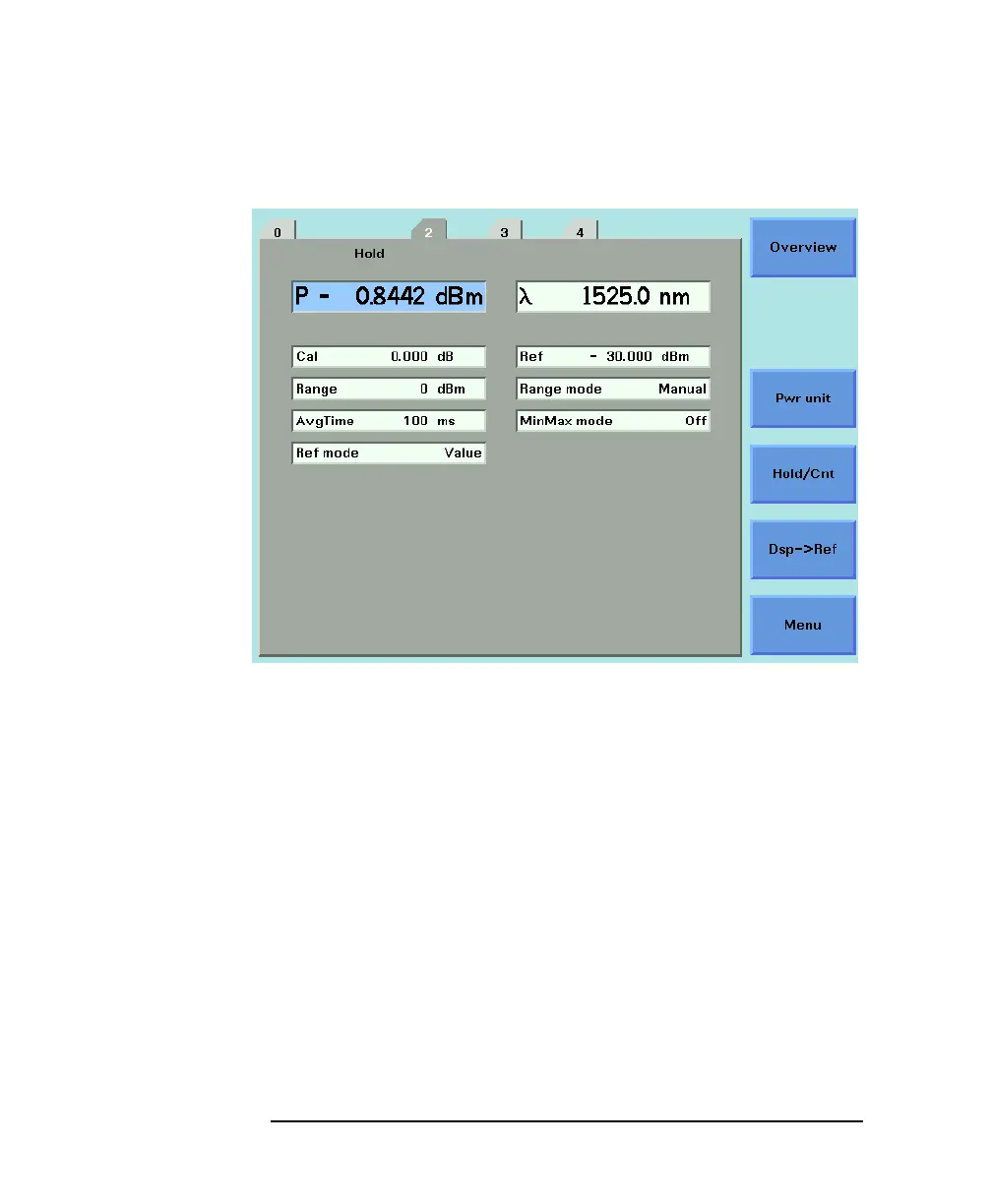

Figure 3-5 Power Module Channel is Held - Details Screen
