Node Ports

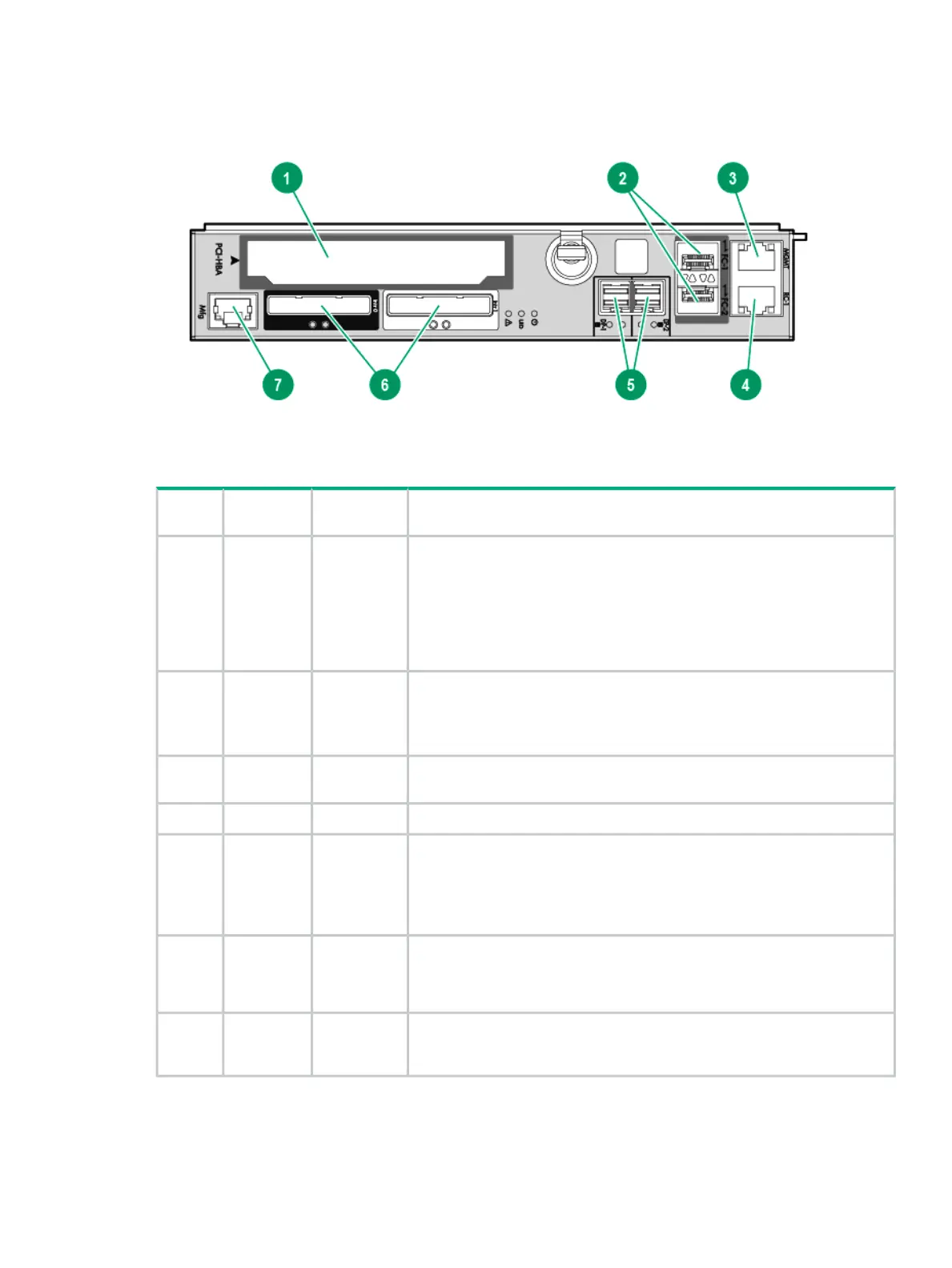

Figure 4 Node ports location
Table 3 Node ports description
DescriptionPort Type
Slot
Number
Callout
Label
PCIe slot for optional host bus adapters (HBAs):PCI-HBASlot 21
• 4-port 16 Gb FC Adapter
• 2-port 10 Gb iSCSI/FCoE Converged Network Adapter (CNA)
• 4-port 1 Gb NIC Adapter
• 2-port 10 Gb Ethernet Adapter
Two onboard 16 Gb FC ports used for connecting to host systems:Fibre
Channel
Slot 02
• FC-1
• FC-2
MGMT-1: Gb Ethernet port used to connect to the storage array management
interfaces.
Ethernet3
RC-1: Onboard Gb Ethernet port used for remote copy or file persona.EthernetSlot 34
Two onboard 12 Gb SAS ports used with SAS cables for connecting to the
drive enclosures and I/O modules:
SASSlot 15
• DP-1
• DP-2
Two Cluster Interconnect Link ports used with 4-directional interconnect link
cables that connect the controller nodes
Cluster
Interconnect
Link
6
NOTE: Cluster Interconnect Link ports only used with 4-node systems
Serial/Console port only for Hewlett Packard Enterprise internal use.MFG
(serial/console
port)
7
Controller Nodes 17
