Installing LFF 3.5-inch Drives
1. Press the handle latch to open the handle.
2. With the latch handle of the drive fully extended, position the drive so the handle opens from
the left, align and slide the drive into the bay until the handle begins to engage, and then
push firmly until it clicks.
3. Close the handle to fully seat the drive into the drive bay.

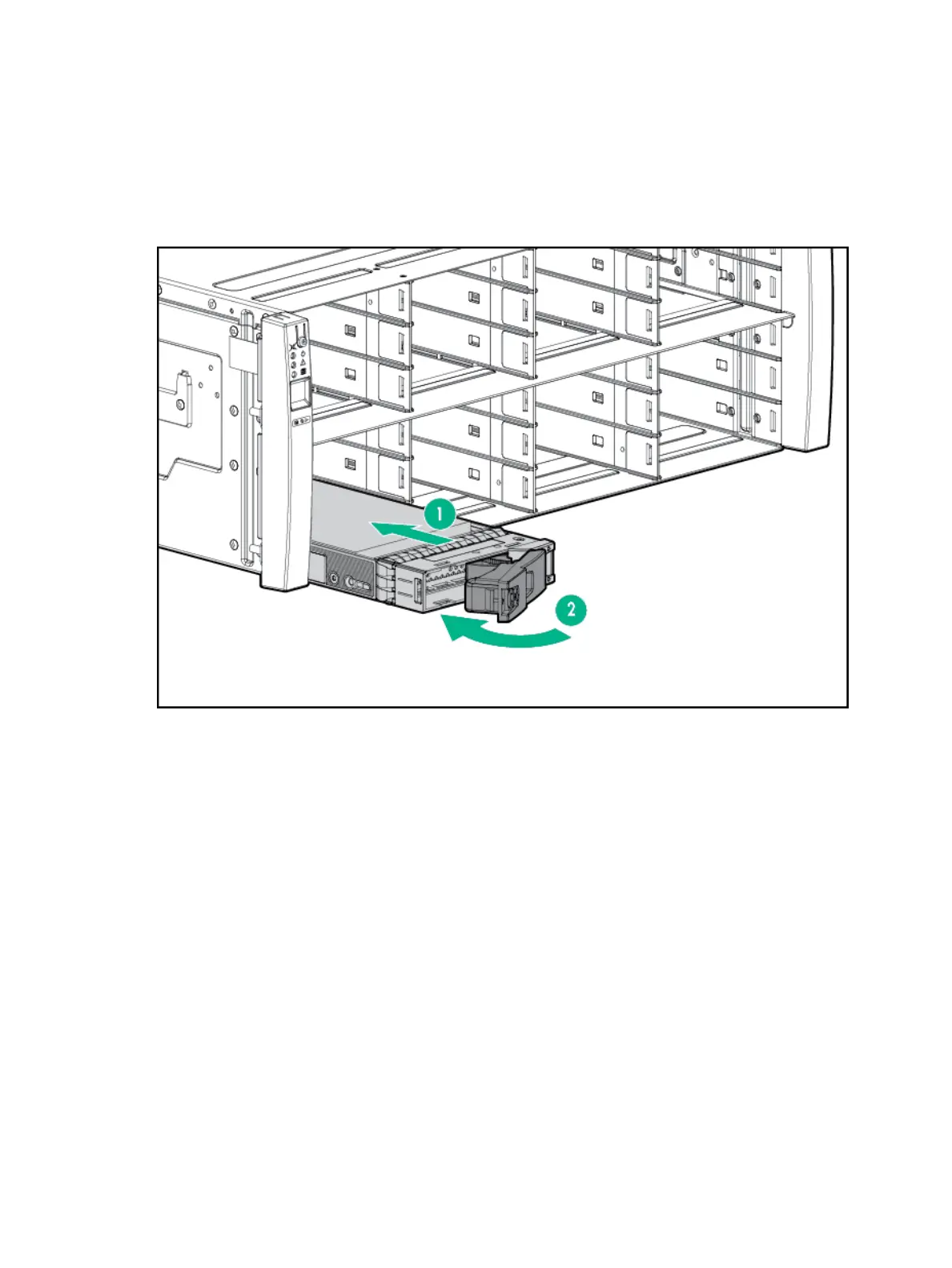

Figure 71 LFF 3.5-inch drive installation
Drives Installation 71
