Recommended PDU Configurations
A PDU is installed in a rack in the following configurations:
• Single PDU configuration with the outlets facing the center of the rack

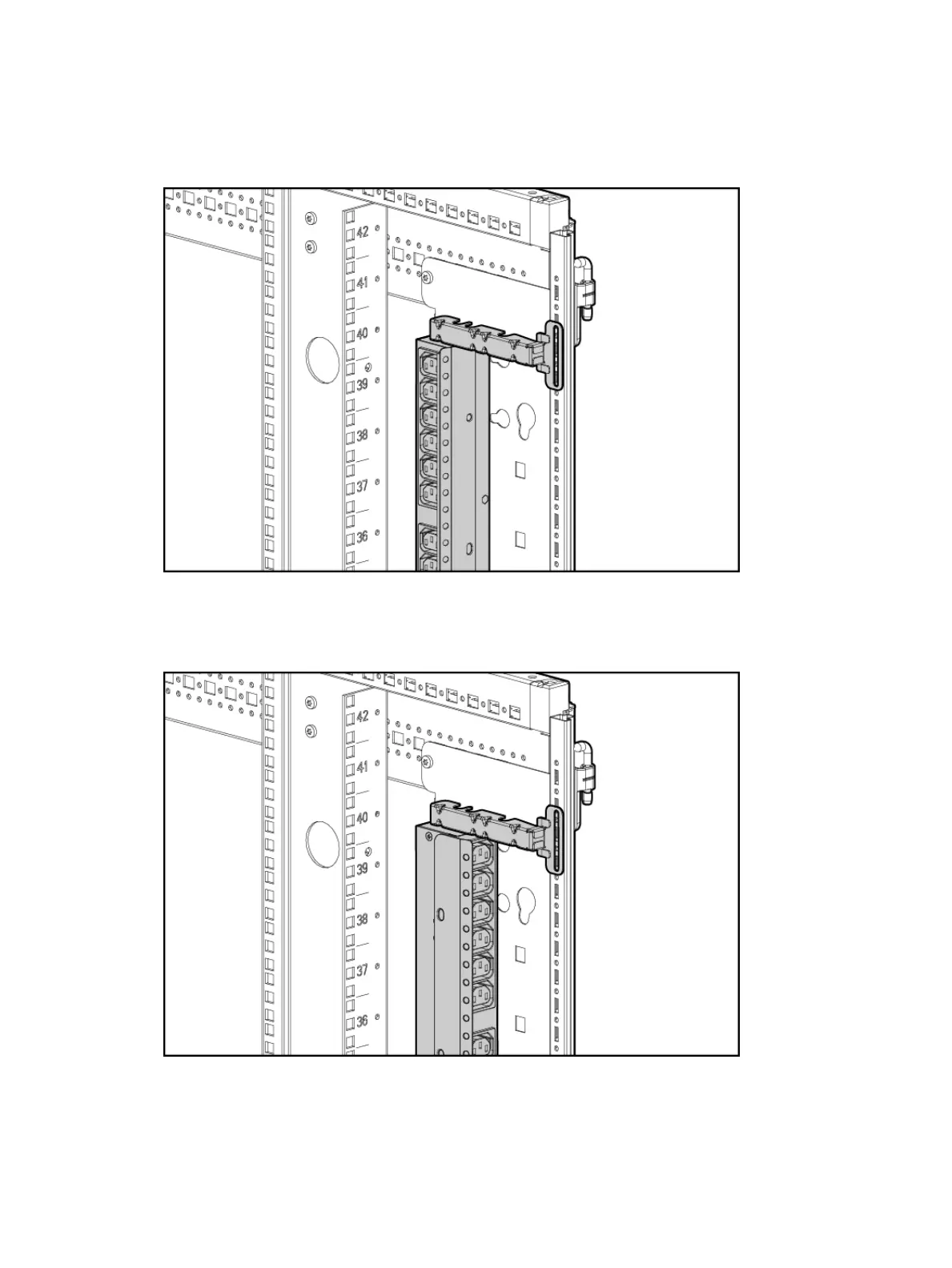

Figure 34 Single PDU configuration, outlets facing center
• Single PDU configuration with the outlets facing the rear of the rack
Figure 35 Single PDU configuration, outlets facing rear
44 Power Distribution Unit Installation
