8. If the PDU is inverted, install the shipping bracket over the mounting pin below the PDU.

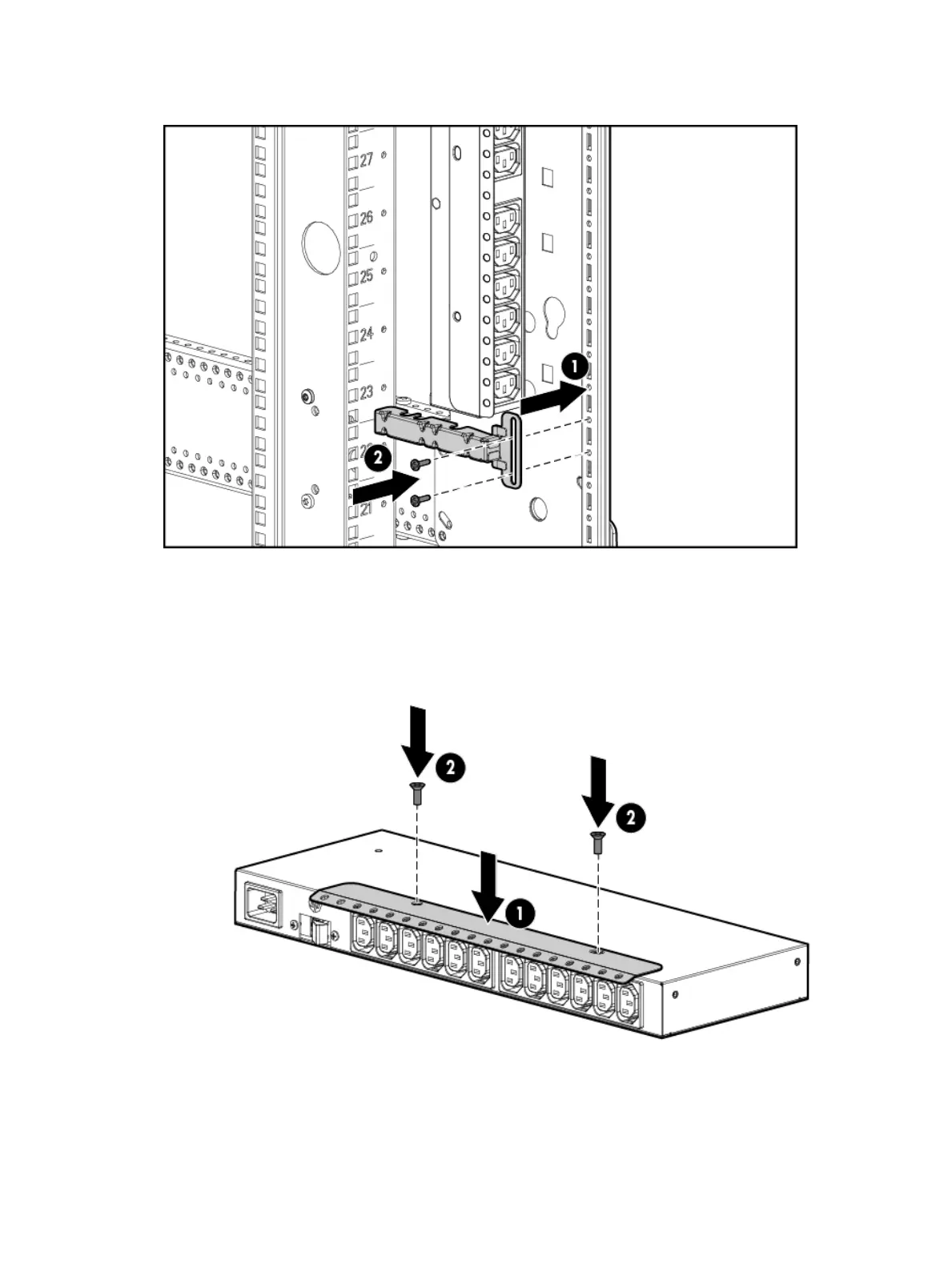

Figure 46 Shipping bracket installation—PDU inverted
Installing 1U and 0U PDUs
1. Attach the power cord retention bracket.
Figure 47 Attach power cord retention bracket
50 Power Distribution Unit Installation
