PCI-HBA adapters LEDs
4-port 16 Gb FC adapter LEDs

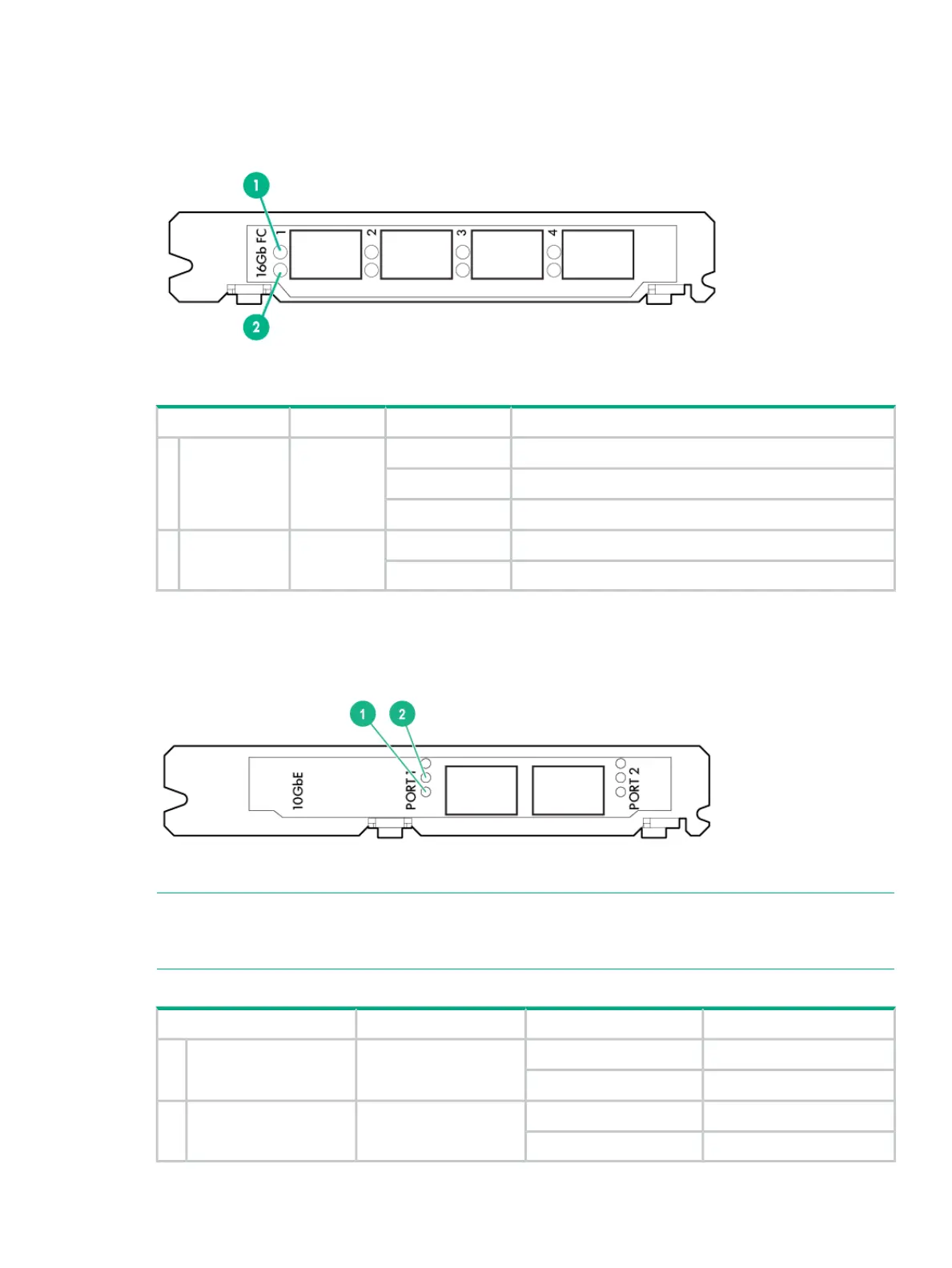

Figure 13 4-port 16 Gb/s FC adapter LEDs location
Table 12 4-port 16 Gb FC adapter LEDs description
IndicatesStateAppearanceLED Function
Connected at 8 Gb/s3 fast flashesAmberPort Speed1
Connected at 16 Gb/s4 fast flashes
Not connectedOff
Normal/Connected – link upOnGreenLink Status2
Link down or not connectedFlashing
2-port 10 Gb iSCSI/FCoE Converged Network Adapter (CNA) LEDs
Figure 14 2-port 10 Gb/s iSCSI/FCoE CNA LEDs location
NOTE: On some 2-port 10 Gb iSCSI/FCoE CNAs, the faceplate labeling is reversed, with the
port on the left identified as port 2, when oriented as in the illustration above. This illustration
shows the corrected label with port 1 on the left.
Table 13 2-port 10 Gb iSCSI/FCoE CNA LEDs description
IndicatesStateAppearanceLED Function
Normal/Connected – link upOn
GreenLink Status1
Link down or not connectedOff
ActivityOn
GreenActivity2
No activityOff
