Connecting to a Physical Service Processor
Use the following instructions to connect to a physical SP installed in the rack.
NOTE:
• Do not continue with the section if you are using a VSP.
• If you have a factory-integrated Hewlett Packard Enterprise cabinet with pre-installed
components, including the SP, no installation is necessary. See “Service Processor and
System Setup” (page 98).
Configuring Physical Service Processor IP Address
The following example uses Microsoft Windows 7 to configure the SP IP address and the
procedures might vary depending on the type of OS being used.
1. At the rear of the system, connect one end of the network cable to the lowest numbered
Ethernet port on the SP. The Ethernet port label might vary with the server, but port 1 is
typically represented by the following:

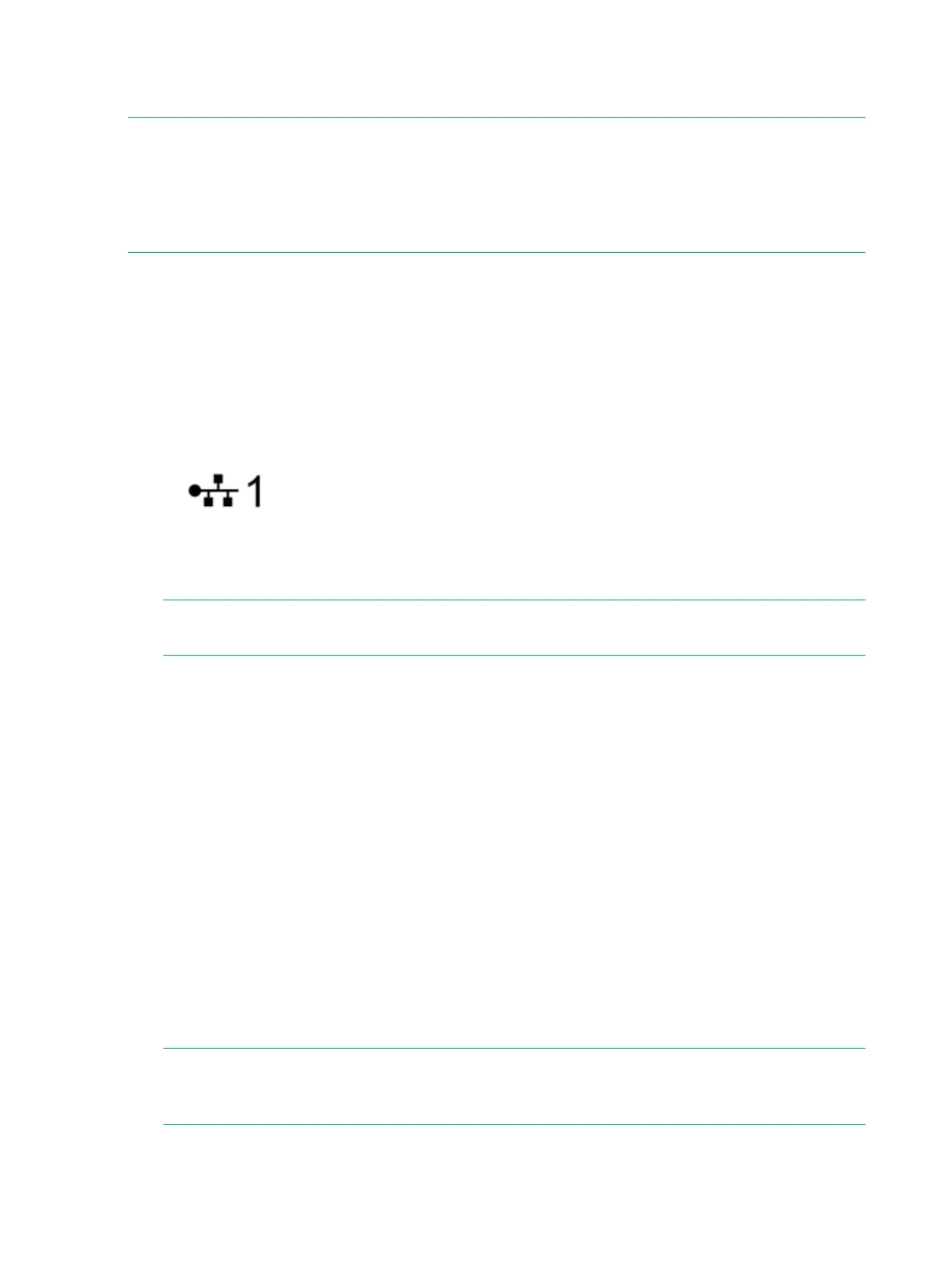

Figure 82 Port 1 label
2. Connect the other end of the cable to the Ethernet port on the laptop.
3. Configure LAN settings on the laptop:
NOTE: The configuration procedures might vary depending on the version of Microsoft
Windows, Apple Mac, or Linux OS in use.
a. Select Control Panel > Network and Internet > Network and Sharing Center, and
click Change adapter settings.
b. Right-click the connection name for the port, and select Properties.
c. In the Properties dialog box, on the Networking tab, double-click Internet Protocol
Version 4 (TCP/IPv4) in the list.
d. In the Internet Protocol Version 4 (TCP/IPv4) Properties dialog box, make note of
your current settings.
e. Select Use the following IP address, and enter the following:
• IP address: 192.168.0.2
• Subnet mask: 255.255.255.0
• Default gateway: 192.168.0.1
f. Click OK and Close to confirm and activate your changes.
4. In a browser window, enter https://192.168.0.100/sp/SetIpAddress.html.
5. Log in with the user ID setupusr. Leave the password box blank.
The Service Processor IP Setup wizard is displayed.
NOTE: The 3PAR Service Processor Setup Wizard might not display correctly when using
Microsoft Internet Explorer 10 with default security settings. If the wizard continues to display
incorrectly, try refreshing the browser page.
96 Service Processor Initialization
