Installing SFF 2.5-inch Drives
1. Press the handle latch to open the handle on the drive.
2. With the latch handle of the drive fully extended, align and slide the drive into the bay until
the handle begins to engage, and then push firmly until it clicks.
3. Close the handle to fully seat the drive into the drive bay.

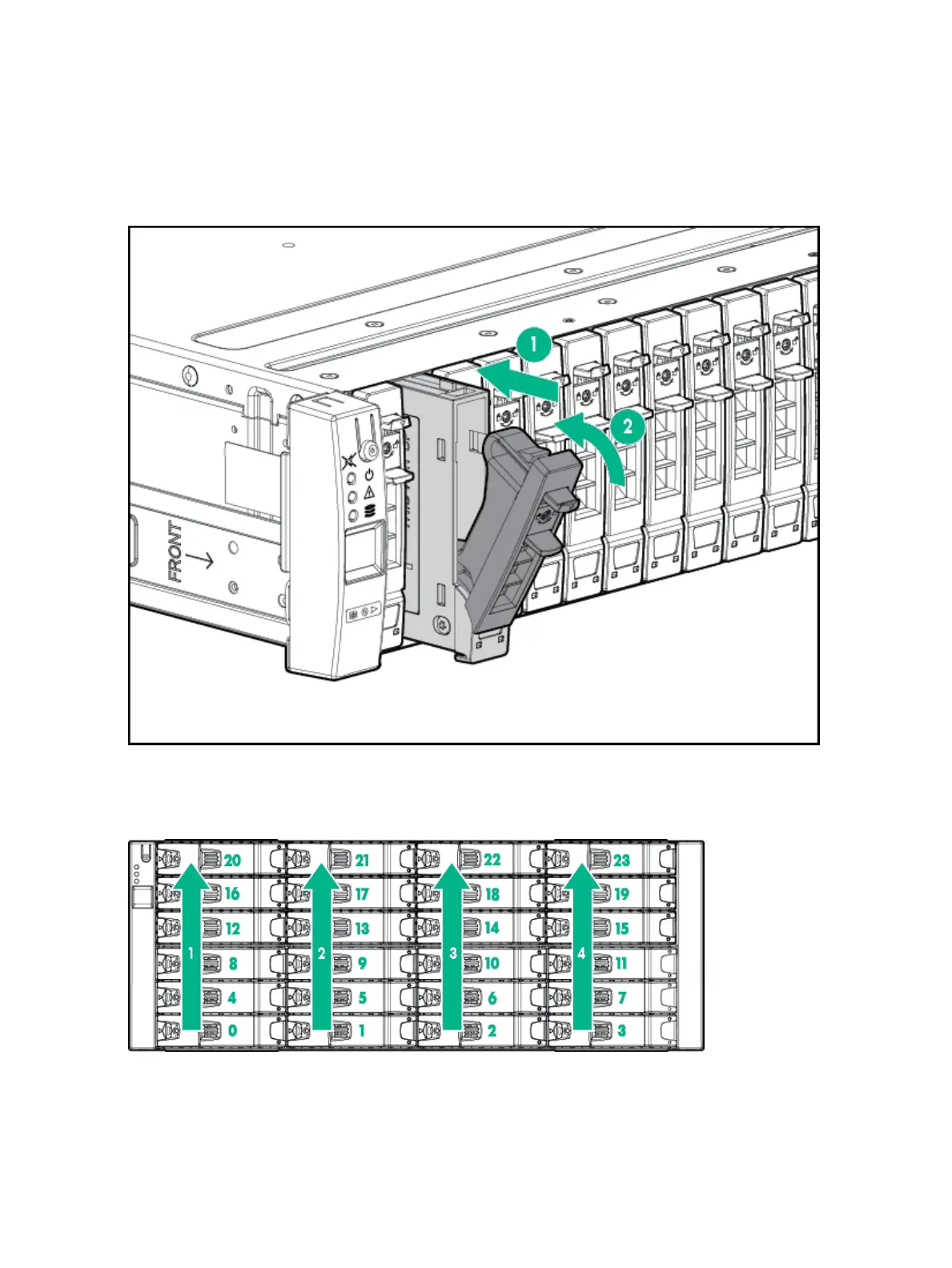

Figure 67 SFF 2.5-inch drive installation
LFF 3.5-inch drive—Allocating and Loading Guidelines
Figure 68 LFF3.5-inch drive enclosure—drive loading order
68 System Component Installation in Existing Rack
