580 W PCM LEDs—Drive Enclosure

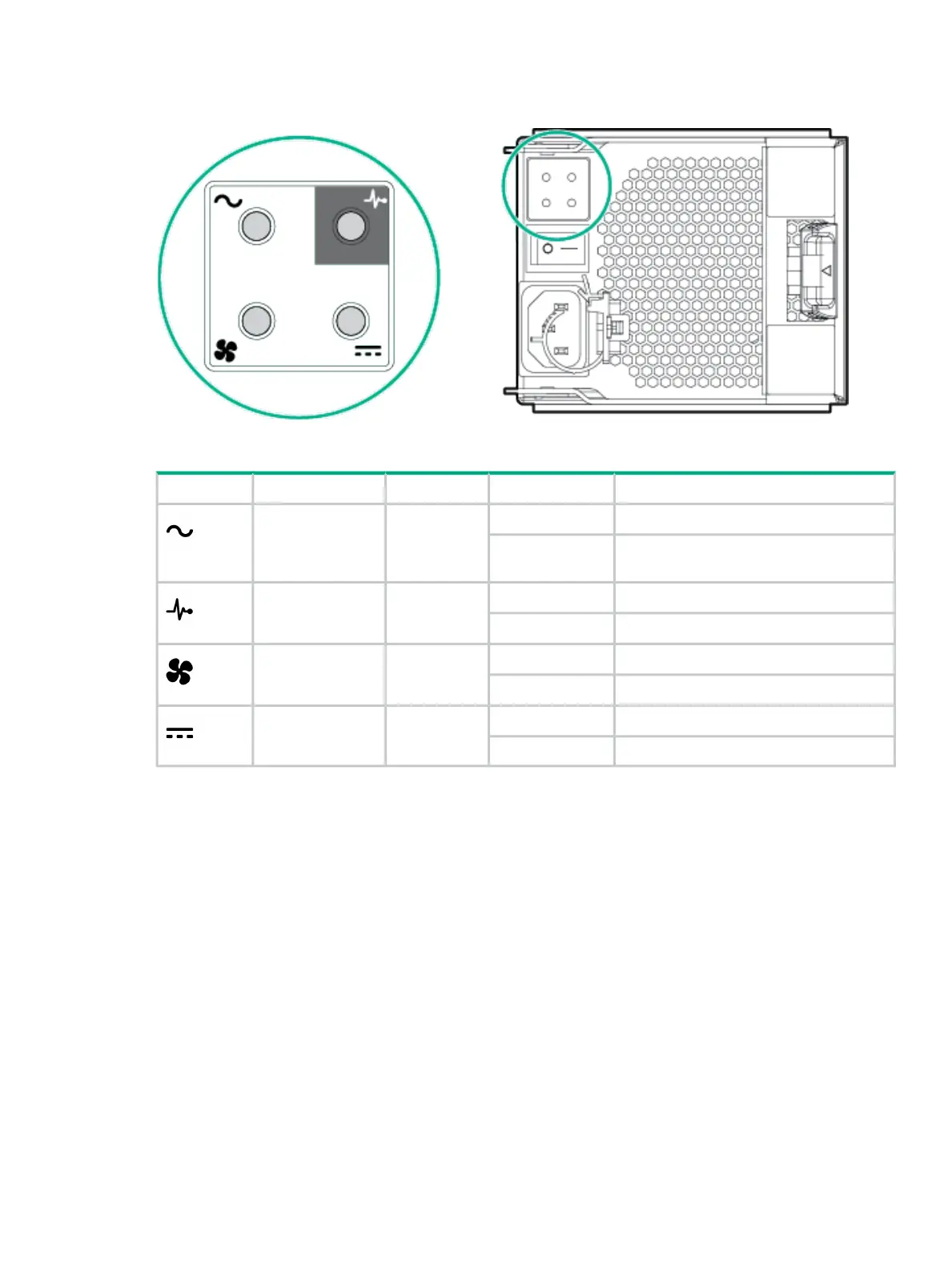

Figure 28 580 W PCM LEDs location—drive enclosure
Table 21 580 W PCM LEDs description—drive enclosure
IndicatesStateAppearanceFunctionLED Icon
No AC power or PCM faultOn
AmberAC input fail
Partner PCM Faulty/Off or Firmware
Download
Flashing
AC Present and PCM On / OKOn
GreenPCM OK
Standby modeFlashing
PCM fail or PCM faultOn
AmberFan Fail
Firmware downloadFlashing
No AC power or fault or out of toleranceOn
AmberDC Output Fail
Firmware downloadFlashing
Power Cooling Modules 37
