2-port 10 Gb Ethernet NIC adapter LEDs

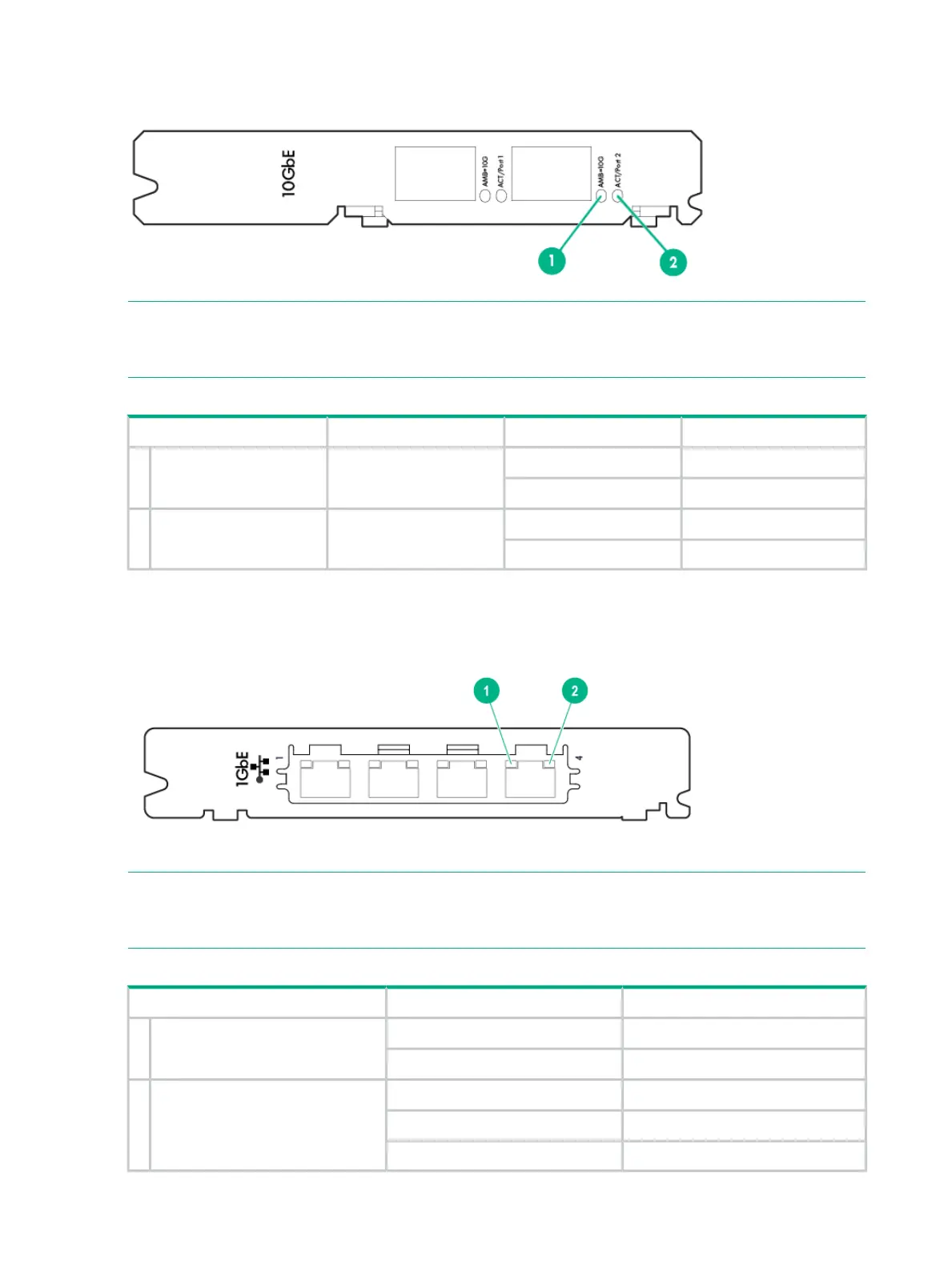

Figure 15 2-port 10 Gb Ethernet NIC adapter LEDs location
NOTE: On some 2-port 10 Gb Ethernet NIC adapters, the faceplate labeling is reversed, with
the port on the left identified as port 2, when oriented as in the illustration above. This illustration
shows the corrected label with port 1 on the left.
Table 14 2-port 10 Gb Ethernet NIC adapter LEDs description
IndicatesStateAppearanceLED Function
Link speed 10 Gb/sOnAmberAmb=10 G1
Link speed 1 Gb/sOff
Link upOnGreenACT/Port2
Link activityFlashing
4-port 1 Gb NIC adapter LEDs
Figure 16 4-port 1 Gb NIC adapter LEDs location
NOTE: On some 4-port 1 Gb Ethernet NIC Adapters, the faceplate labeling is incorrect,
indicating that the ports are numbered 0 through 3. The illustration above shows the corrected
label, indicating that the ports are numbered 1 through 4.
Table 15 4-port 1 Gb NIC adapter LEDs description
IndicatesStateLED
Link speed 1 Gb/sOnGreen1
Link speed 100 Mb/sOff
Link upOnGreen2
Link activityFlashing
Link downOff
26 Identifying System Components and Numbering
