764 W PCM LEDs—Node Enclosure

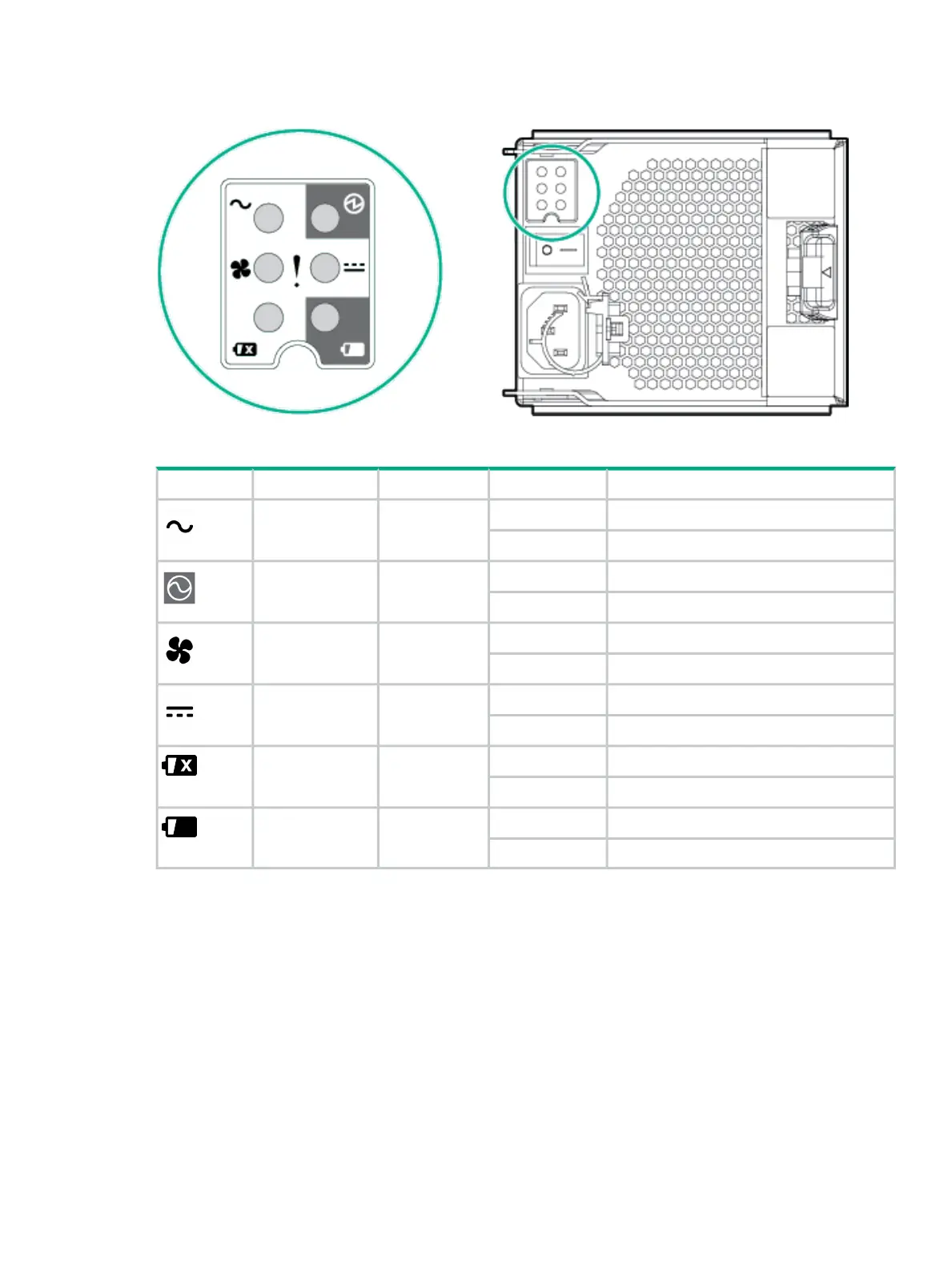

Figure 25 764 W PCM LEDs location—node enclosure
Table 20 764 W PCM LEDs description—node enclosure
IndicatesStateAppearanceFunctionLED Icon
No AC power or PCM faultOn
AmberAC input fail
Firmware downloadFlashing
AC present and PCM On / OKOn
GreenPCM OK
Standby modeFlashing
PCM fail or PCM faultOn
AmberFan Fail
Firmware downloadFlashing
No AC power or fault or out of toleranceOn
AmberDC Output Fail
Firmware downloadFlashing
Hard fault (not recoverable)On
AmberBattery Fail
Soft fault (recoverable)Flashing
Present and chargedOn
GreenBattery Good
Charging or disarmedFlashing
Power Cooling Modules 35
