Ethernet Port LEDs
The controller node has two built-in Ethernet ports:
• MGMT—Eth0 port provides connection to the public network.
• RC-1—Designated port for remote-copy functionality.

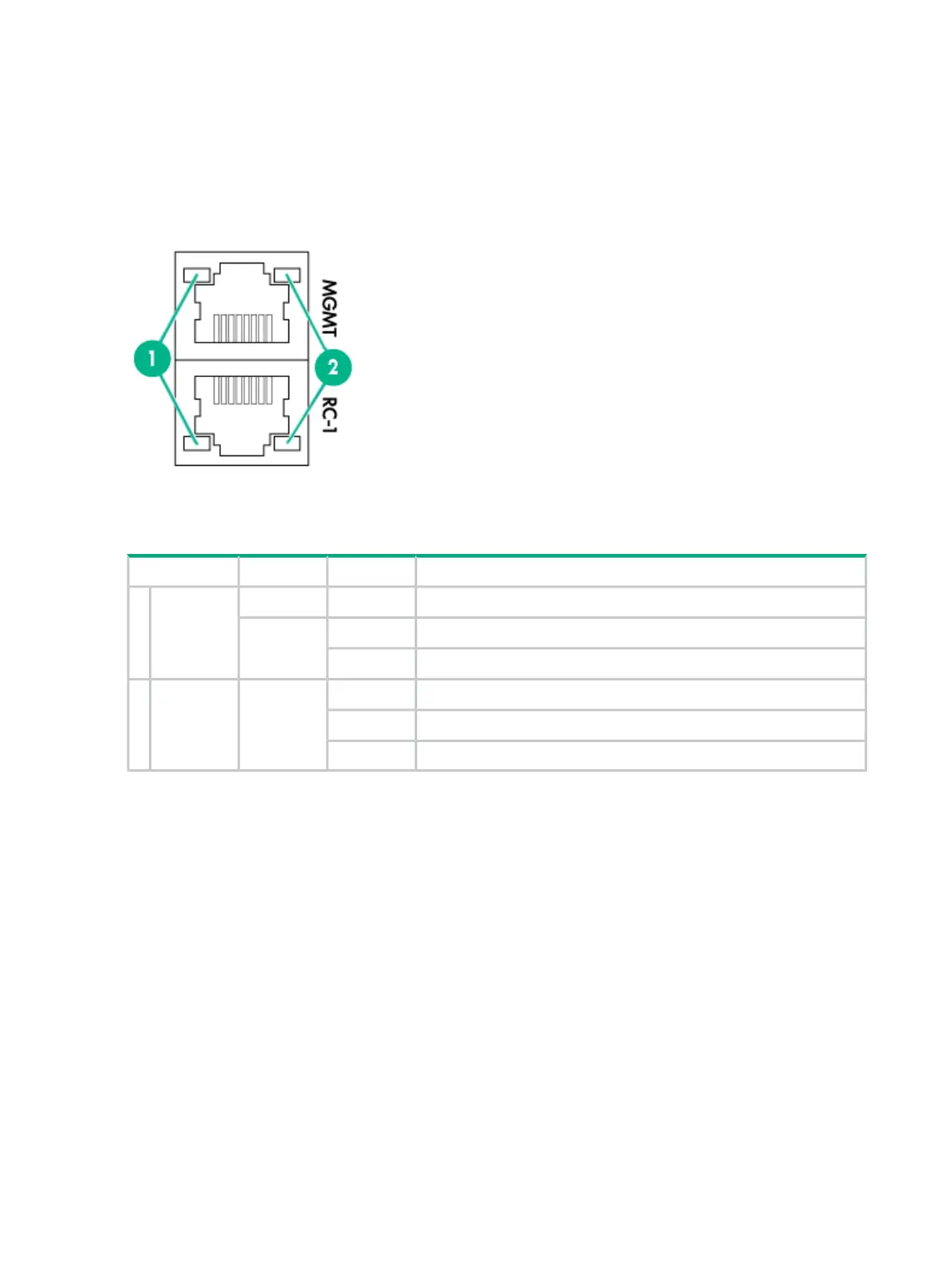

Figure 5 Ethernet LEDs location
Table 4 Ethernet LEDs description
IndicatesStateAppearanceLED Function
1 GbE LinkOnGreenLink Up
Speed
1
100 Mb LinkOnAmber
No link established or 10 Mb LinkOff
No link activityOnGreenActivity2
Link activityFlashing
No link establishedOff
