149

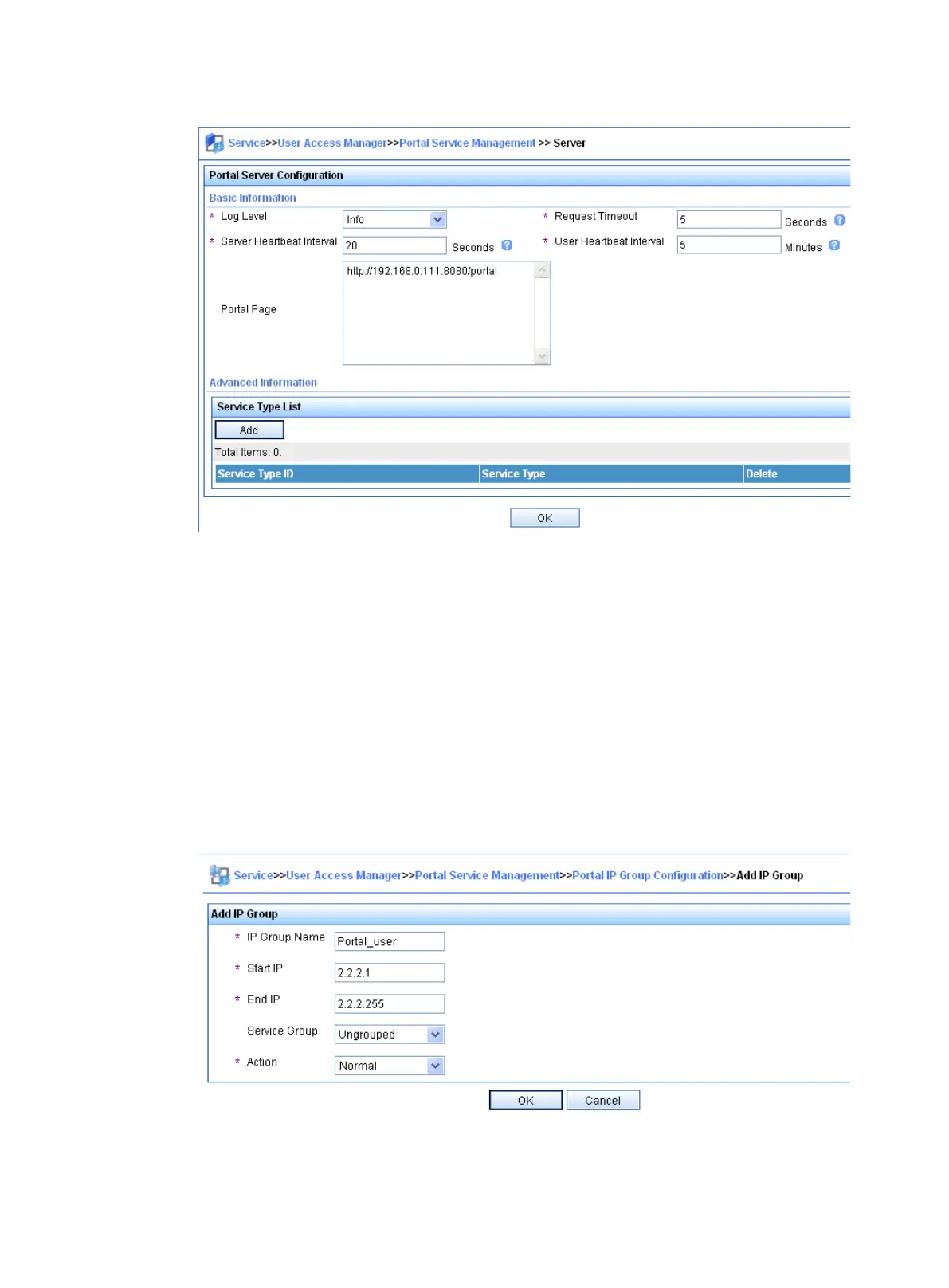

Figure 48 Portal server configuration
2. Configure the IP address group:
a. Select User Access Manager > Portal Service Management > IP Group from the
navigation tree to enter the portal IP address group configuration page.
b. Click Add to enter the page shown in Figure 49.
c. Enter the IP group name.
d. Enter the start IP address and end IP address of the IP group.
Make sure the host IP address is in the IP group.
e. Select a service group.
This example uses the default group Ungrouped.
f. Select Normal from the Action list.
g. Click OK.
Figure 49 Adding an IP address group
3. Add a portal device:
