HPE FlexNetwork 5510 HI Series

148
a. As shown in Figure 46, click the icon in the Port Group Information Management column
of device NAS to enter the port group configuration page.

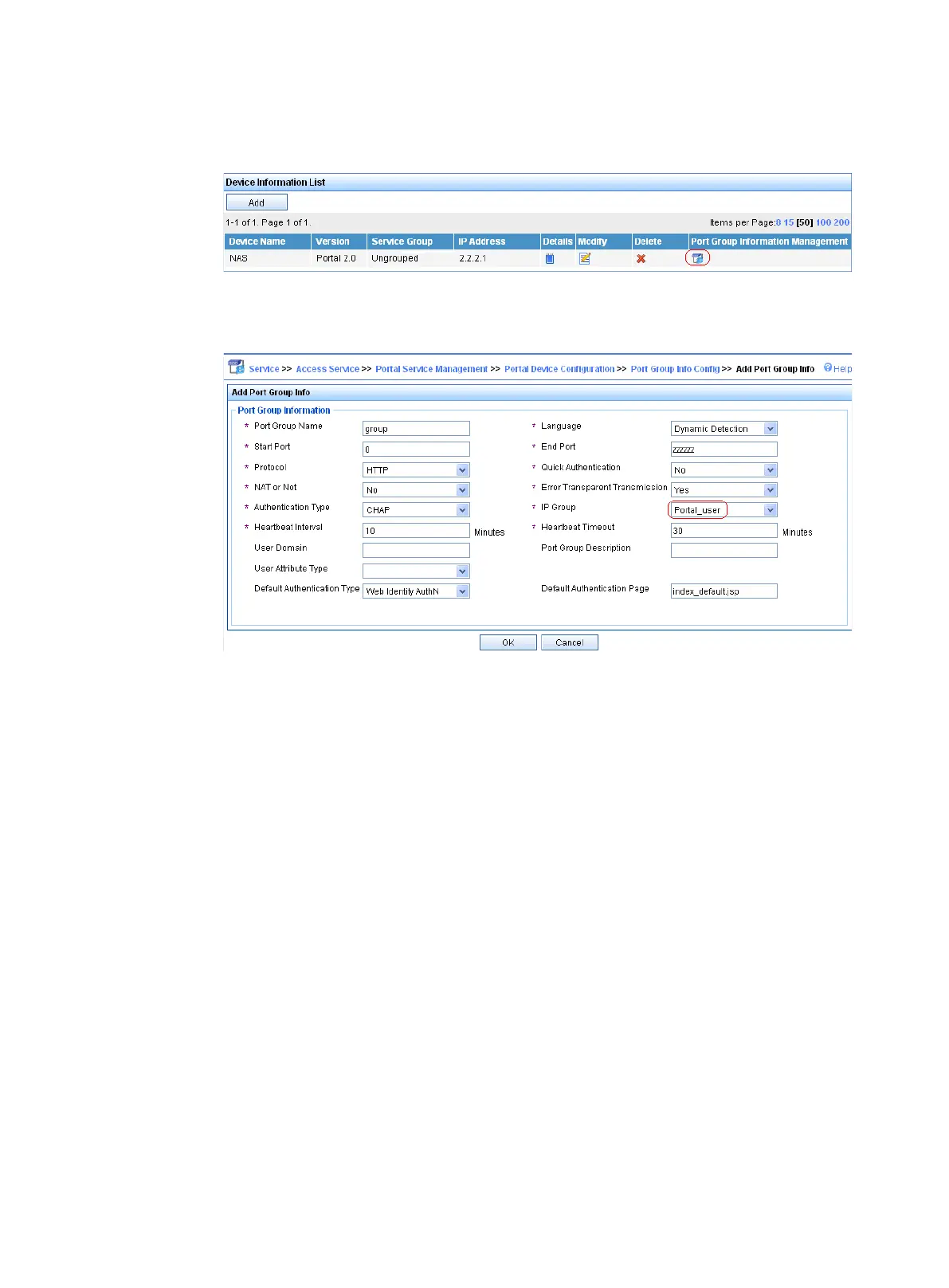

Figure 46 Device list
b. Click Add to enter the page shown in Figure 47.
Figure 47 Port group configuration
c. Enter the port group name.
d. Select the configured IP address group.
The IP address used by the user to access the network must be within this IP address
group.
e. Click OK.
5. Select Access Service > Service Parameters > Validate System Configuration from the
navigation tree to validate the configurations.
Configuring the portal authentication server on IMC PLAT 5.0
This example assumes that the portal server runs on IMC PLAT 5.0(E0101) and IMC UAM
5.0(E0101).
1. Configure the portal authentication server:
a. Log in to IMC and click the Service tab.
b. Select User Access Manager > Portal Service Management > Server from the
navigation tree to enter the portal server configuration page, as shown in Figure 48.
c. Configure the portal server parameters as needed.
This example uses the default settings.
d. Click OK.
