147
e. Select a service group.
This example uses the default group Ungrouped.
f. Select Normal from the Action list.
g. Click OK.

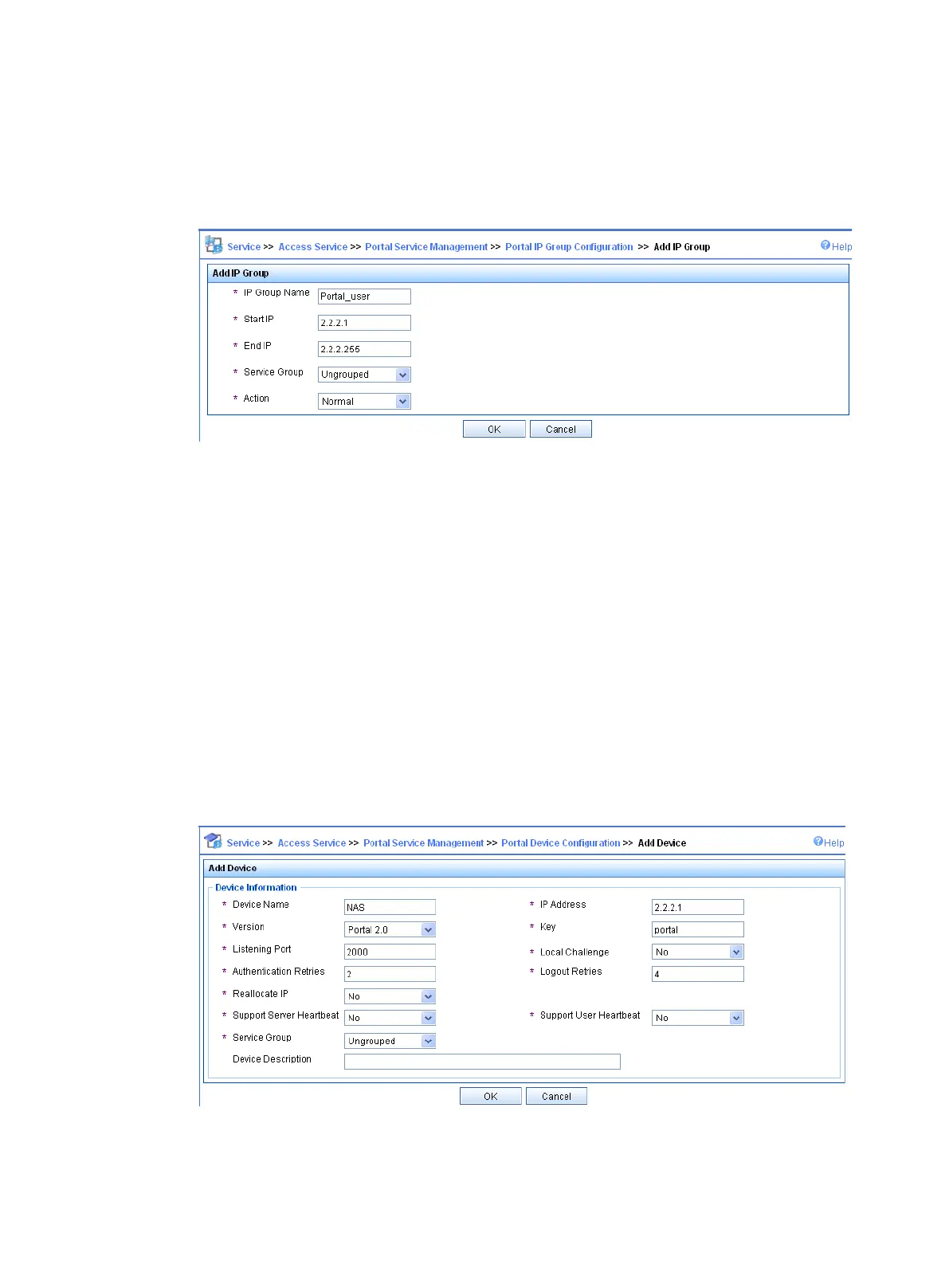

Figure 44 Adding an IP address group
3. Add a portal device:
a. Select Access Service > Portal Service Management > Device from the navigation tree
to enter the portal device configuration page.
b. Click Add to enter the page shown in Figure 45.
c. Enter the device name NAS.
d. Enter the IP address of the switch's interface connected to the host.
e. Enter the key, which must be the same as that configured on the switch.
f. Set whether to enable IP address reallocation.
This example uses direct portal authentication, and therefore select No from the Reallocate
IP list.
g. Set whether to support the portal server heartbeat and user heartbeat functions.
In this example, select No for both Support Server Heartbeat and Support User
Heartbeat.
h. Click OK.
Figure 45 Adding a portal device
4. Associate the portal device with the IP address group:
