146

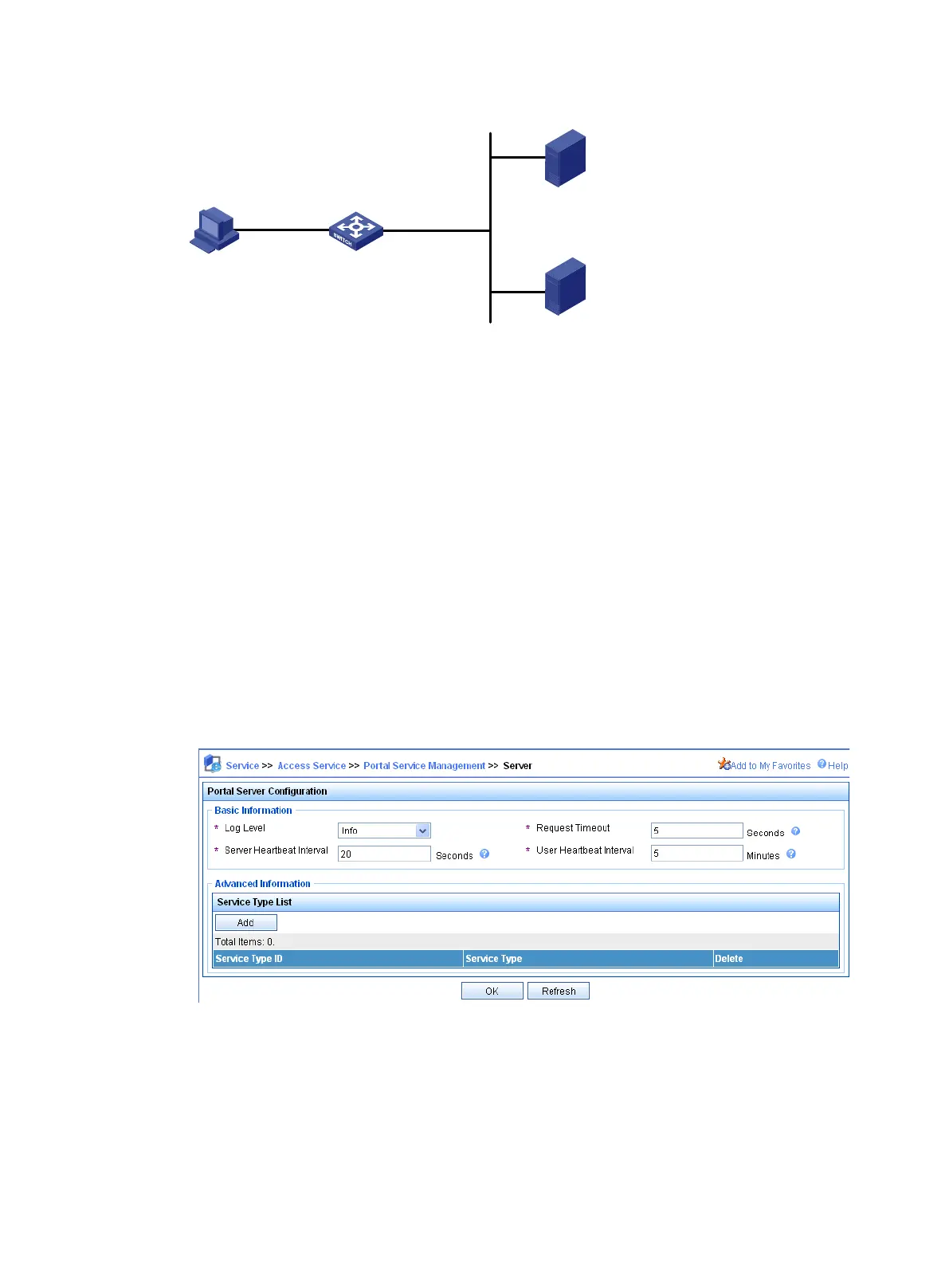

Figure 42 Network diagram
Configuration prerequisites
• Configure IP addresses for the host, switch, and servers as shown in Figure 42 and make sure
they can reach each other.
• Configure the RADIUS server properly to provide authentication and accounting functions.
Configuring the portal authentication server on IMC PLAT 3.20
This example assumes that the portal server runs on IMC PLAT 3.20-R2602P13 and IMC UAM
3.60-E6301.
1. Configure the portal authentication server:
a. Log in to IMC and click the Service tab.
b. Select Access Service > Portal Service Management > Server from the navigation tree
to enter the portal server configuration page, as shown in Figure 43.
c. Configure the portal server parameters as needed.
This example uses the default values.
d. Click OK.
Figure 43 Portal authentication server configuration
2. Configure the IP address group:
a. Select Access Service > Portal Service Management > IP Group from the navigation
tree to enter the portal IP address group configuration page.
b. Click Add to enter the page shown in Figure 44.
c. Enter the IP group name.
d. Enter the start IP address and end IP address of the IP group.
Make sure the host IP address (2.2.2.2) is in the IP group.
RADIUS server
Switch
Host
2.2.2.2/24
Gateway: 2.2.2.1/24
Vlan-int100
2.2.2.1/24
Vlan-int2
192.168.0.100/24
Portal server
192.168.0.111/24
192.168.0.112/24
