Procedure
l Run the reset nhrp statistics interface interface-type interface-number command in the
user view to clear the NHRP packet statistics on a specified tunnel interface.
----End
6.5 Configuration Examples
This section describes how to configure DSVPN when different routing plans are used.
6.5.1 Example for Configuring DSVPN When Branches Learn
Routes from Each Other
This section describes how to configure DSVPN when branches learn routes from each other.
Networking Requirements
As shown in Figure 6-1, the hub (central office), Spoke1 (a branch), and Spoke2 (a branch)
belong to the same autonomous system (AS). They can communicate with each other on the IP
network using routing protocols.

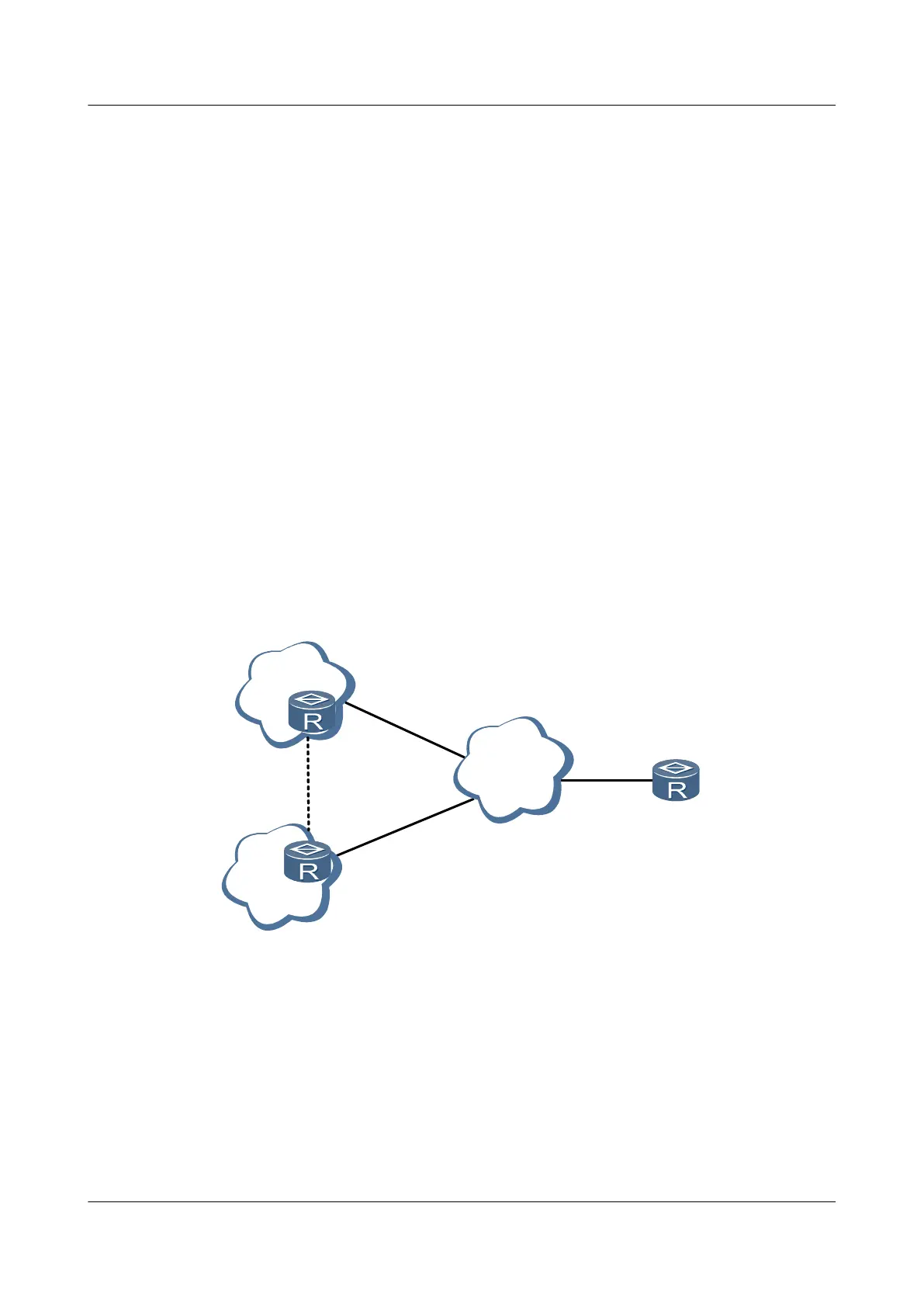

Figure 6-1 Configuring DSVPN when branches learn routes from each other
Spoke1
(branch)
Spoke2
(branch)
Hub
(central office)
Eth1/0/0
44.1.1.1/24
Eth1/0/0 44.3.1.2/24
Eth1/0/0 44.4.1.2/24
Tunnel 0/0/0
172.16.1.102/24
Tunnel 0/0/0
172.16.1.101/24
Tunnel 0/0/0
172.16.1.1/24
Internet
NHRP
NHRP
NHRP
Configuration Roadmap
The configuration roadmap is as follows:
1. Run a routing protocol on the Routers to implement interconnection.
2. Create tunnel interfaces on the Routers (Spoke1, Spoke2, and the hub) and specify source
addresses for tunnel interfaces.
3. Configure NHRP mapping entries of the hub on Spoke1 and Spoke2.
Huawei AR1200 Series Enterprise Routers
Configuration Guide - VPN 6 DSVPN Configuration
Issue 01 (2012-04-20) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
353
