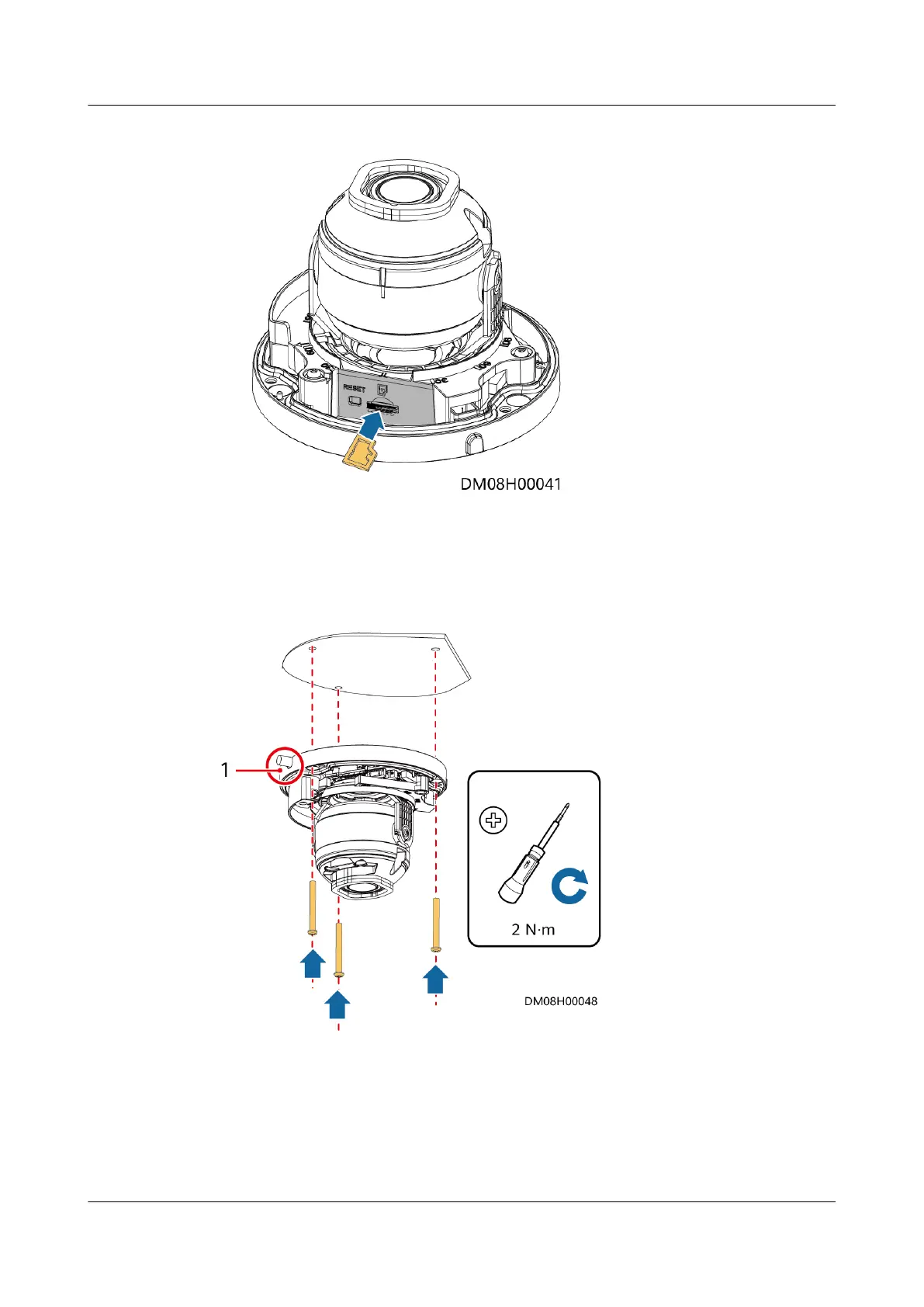

Figure 4-64 Installing an SD card
Step 2 Route the camera cable through the top of the cabinet.
Step 3 Align the mounting holes in the camera base with those in the mounting plate,
and screw the camera to the mounting plate.
Figure 4-65 Installing a camera base
(1) Cable outlet
Step 4 Install the mounting plate with the camera at the top of the front door of the end
cabinet, as shown in Figure 4-66.
FusionModule500 Smart Mini Data Center
User Manual 4 Installation Guide
Issue 02 (2020-12-25) Copyright © Huawei Technologies Co., Ltd. 117
